Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Power, Grounds And Diagnostics

Power, Grounds And Diagnostics

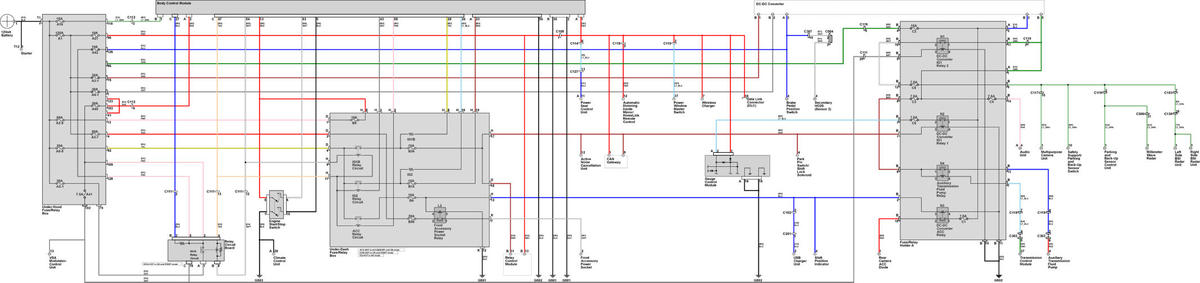

GHHW17217Courtesy of EWD

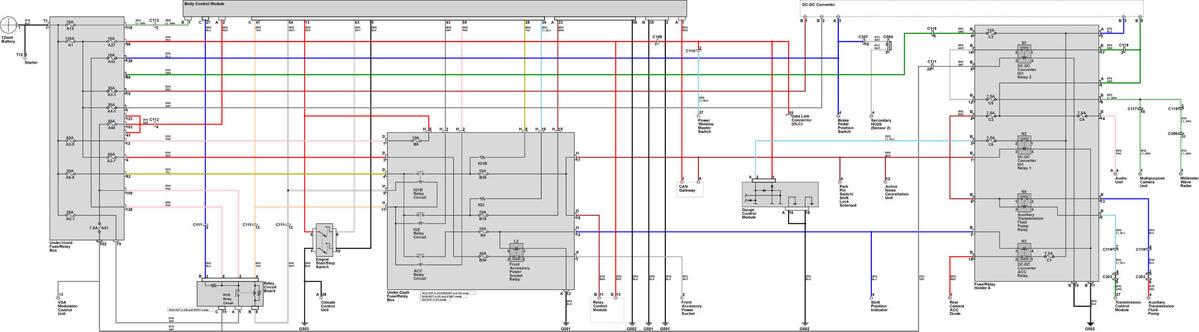

GHHW17218Courtesy of EWD

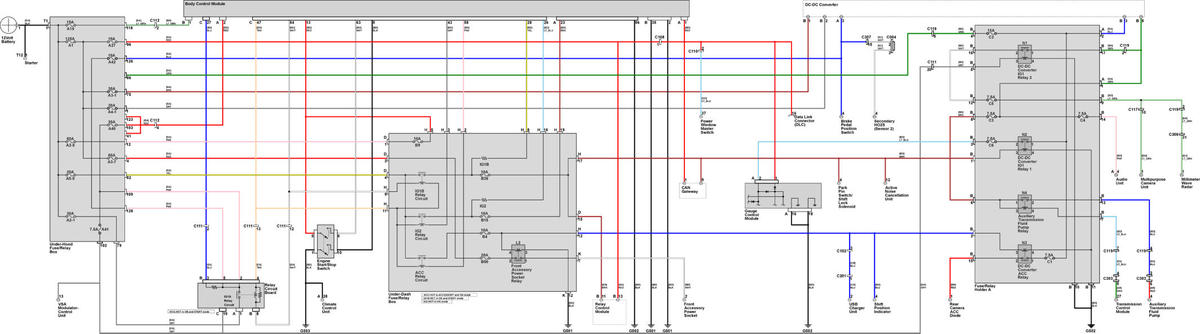

GHHW17219Courtesy of EWD

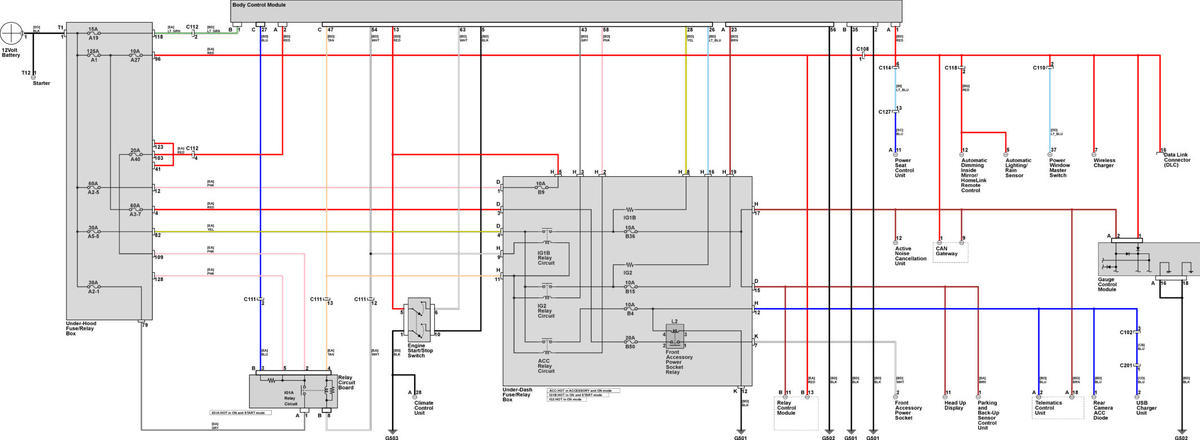

GHHW17220Courtesy of EWD

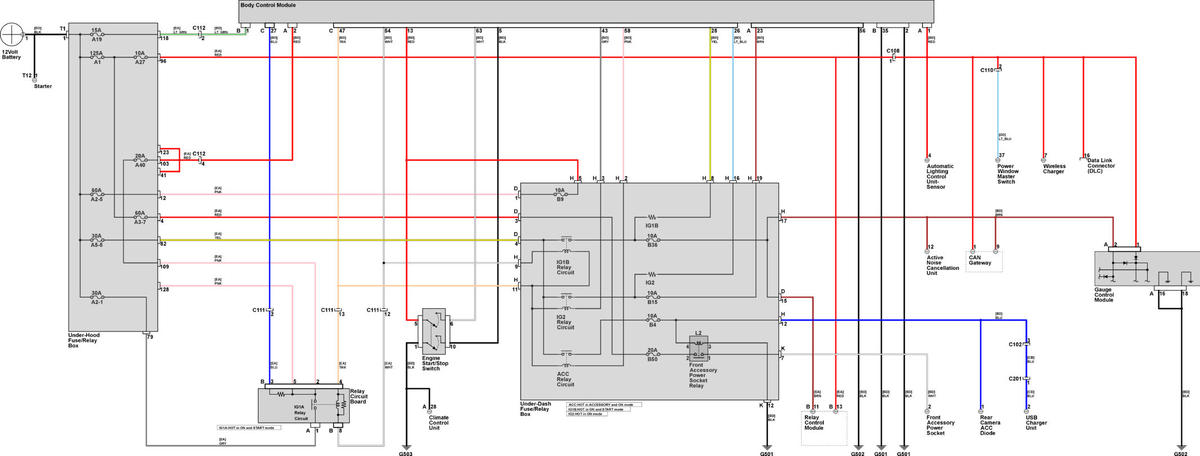

GHHW17221Courtesy of EWD
GHHW17219Courtesy of EWD
