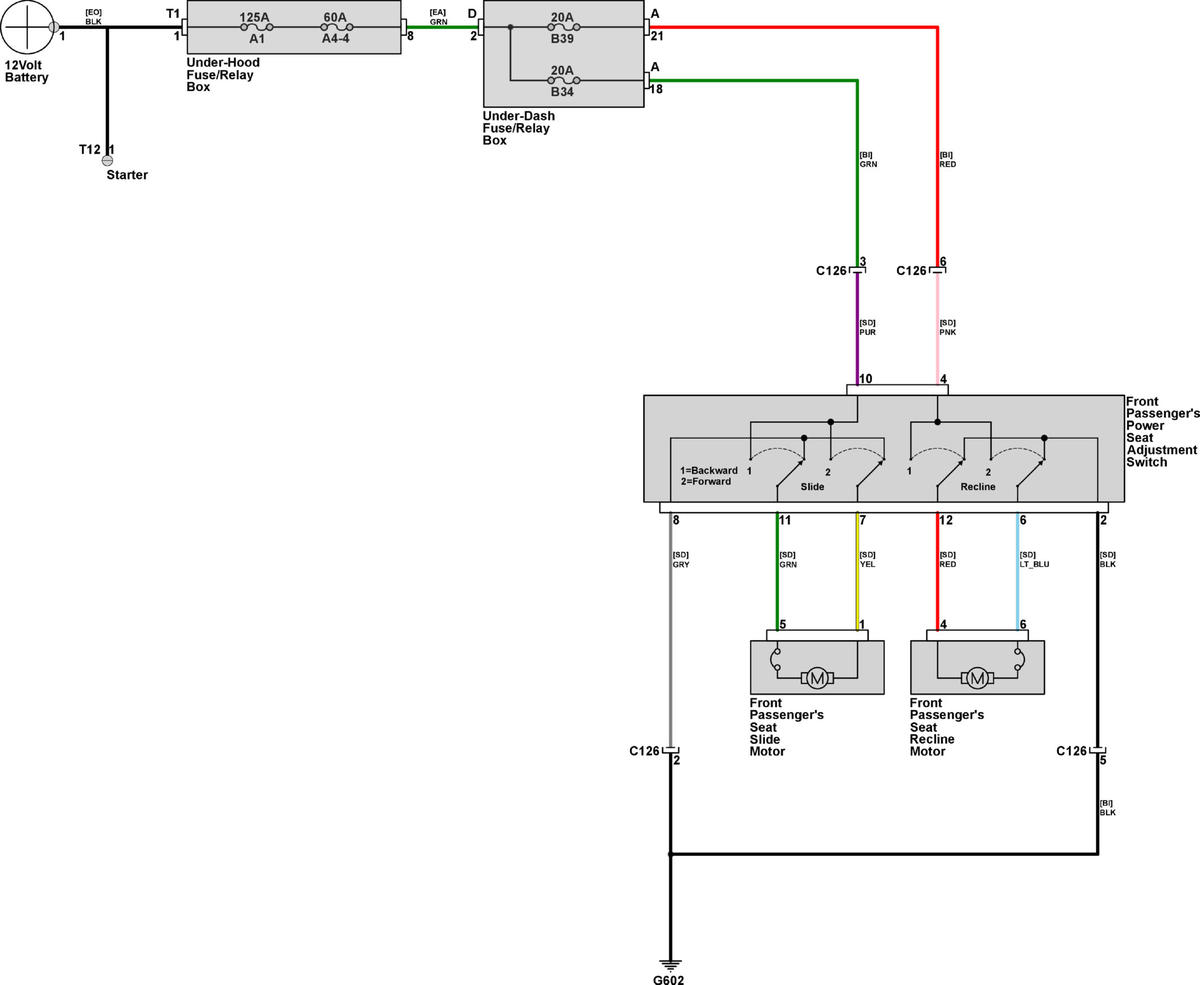

Power Seat - Front Passenger
Power Seat - Front Passenger
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
