Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Power Seat - Driver's

Power Seat - Driver's

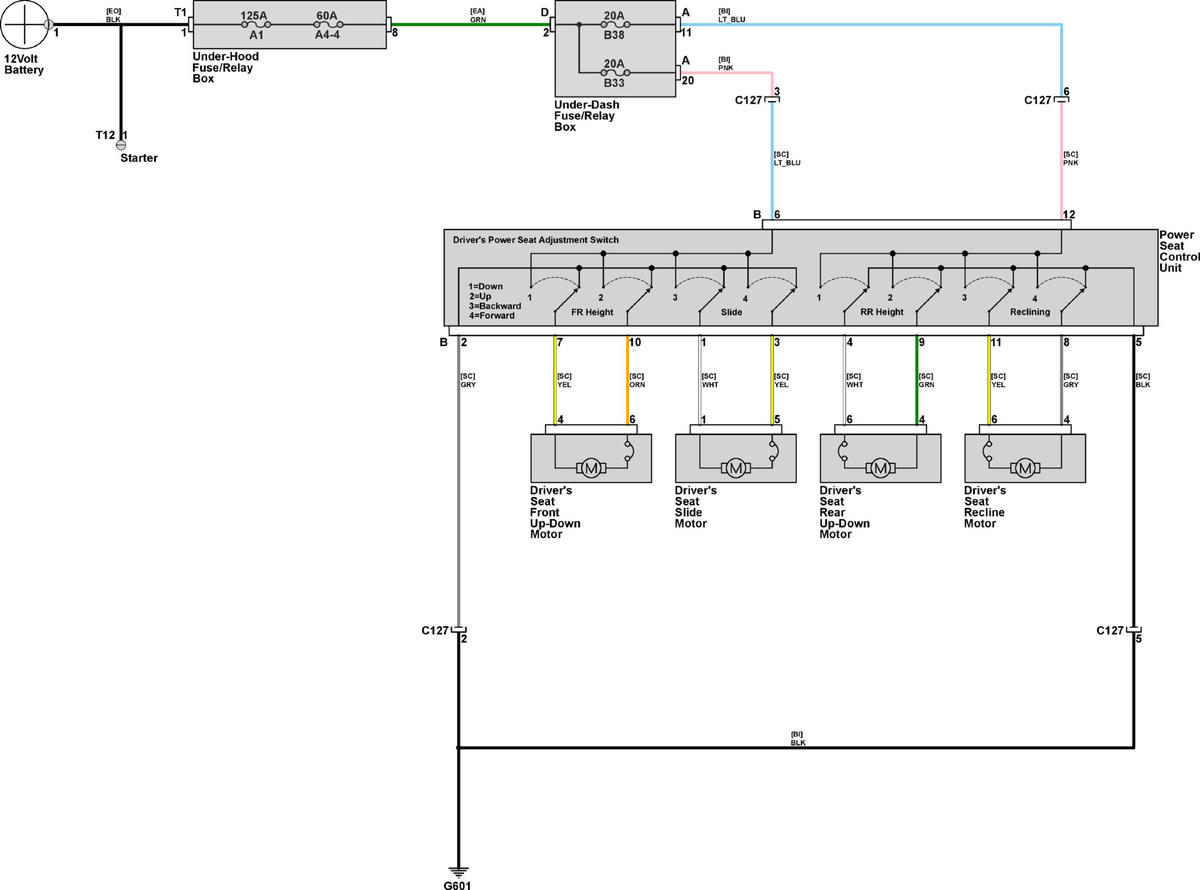

GHHW17057Courtesy of EWD
GHHW17058Courtesy of EWD
GHHW17059Courtesy of EWD

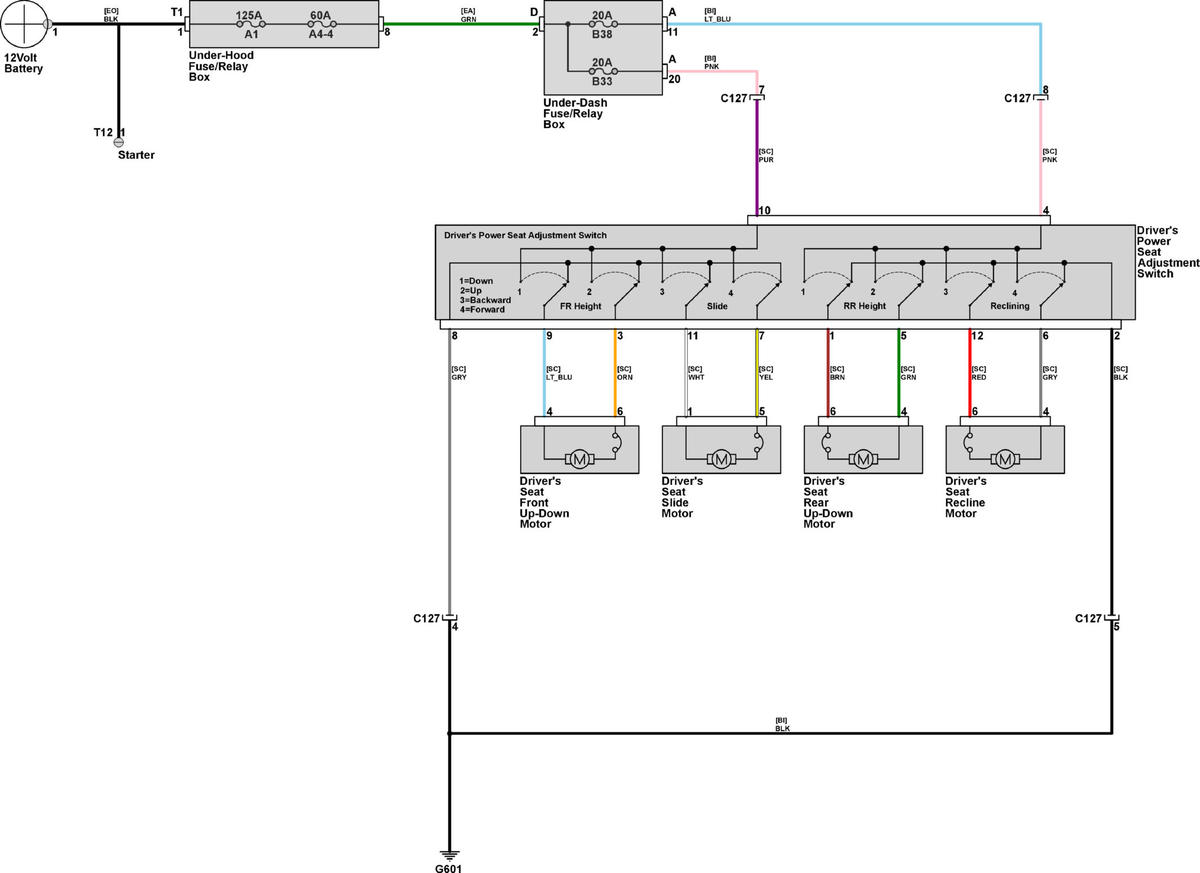

GHHW17060Courtesy of EWD
GHHW17058Courtesy of EWD
