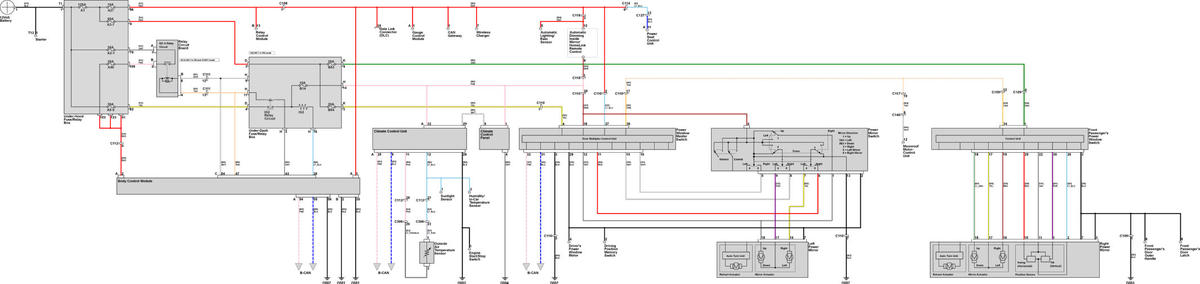

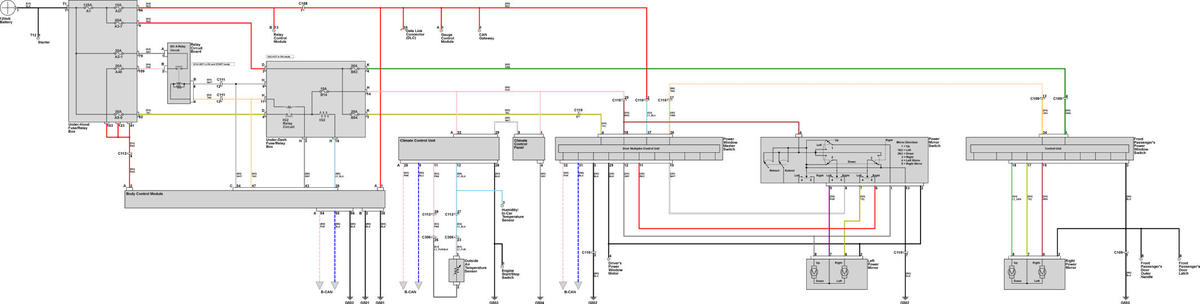

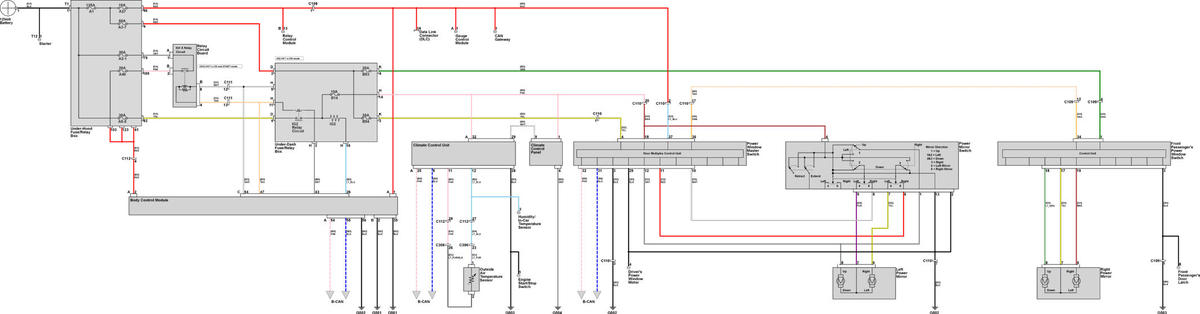

Power Mirrors
Power Mirrors
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
