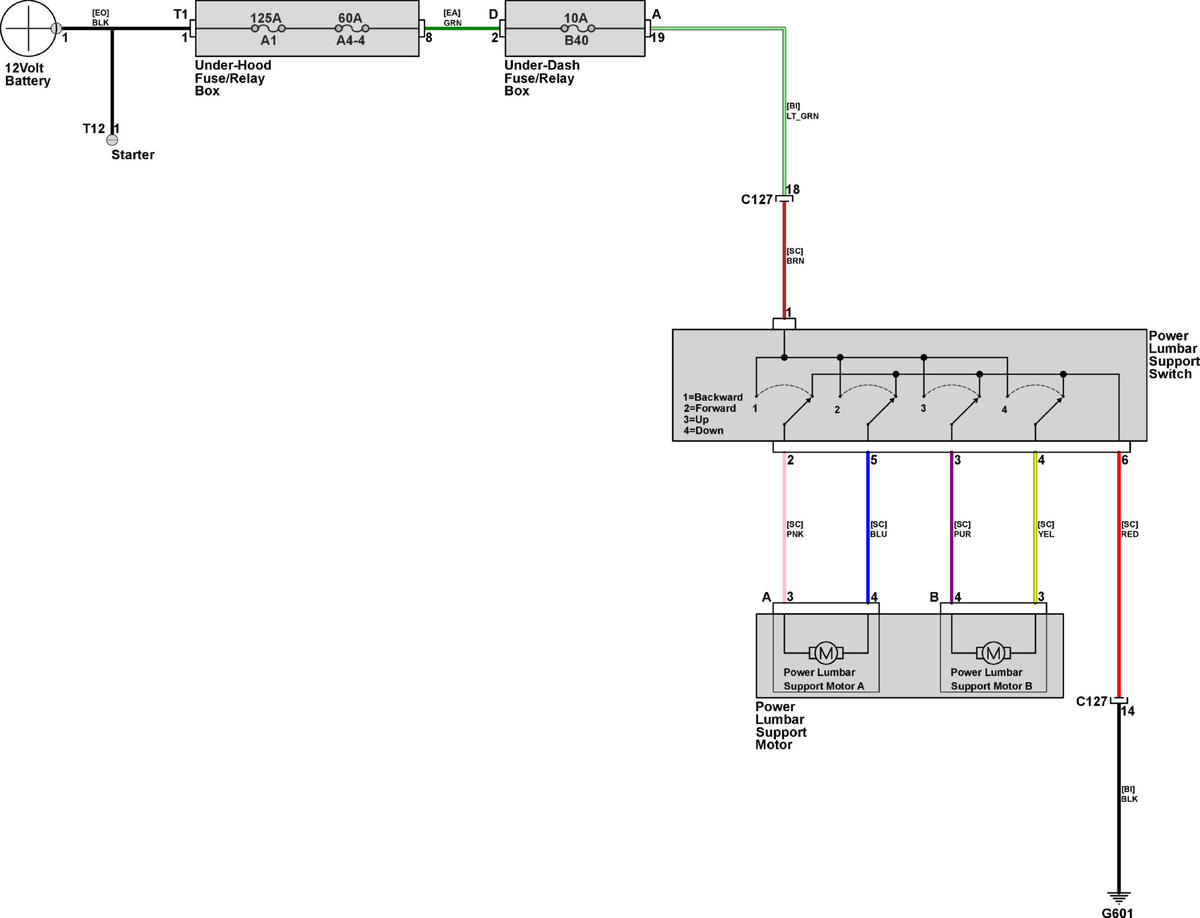

Power Lumbar Support

GHHW17187Courtesy of EWD
GHHW17188Courtesy of EWD
GHHW17189Courtesy of EWD
GHHW17190Courtesy of EWD
GHHW17188Courtesy of EWD
