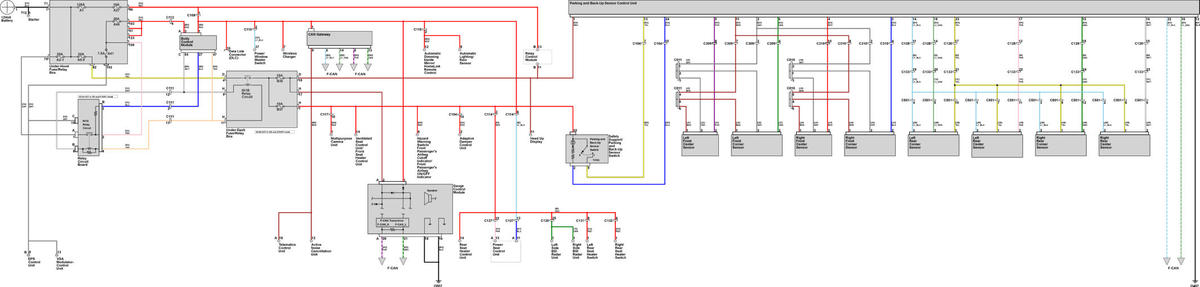

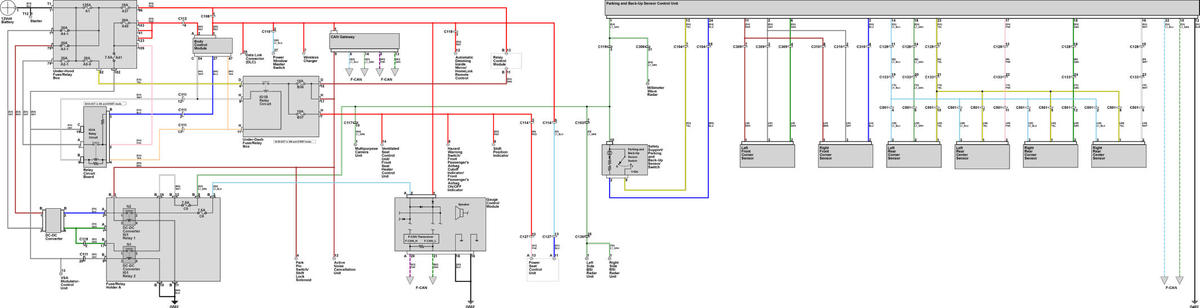

Parking And Back-Up Sensor System
Parking And Back-Up Sensor System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
