Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Moonroof

OEM Wiring Diagrams (Except Hybrid): Moonroof

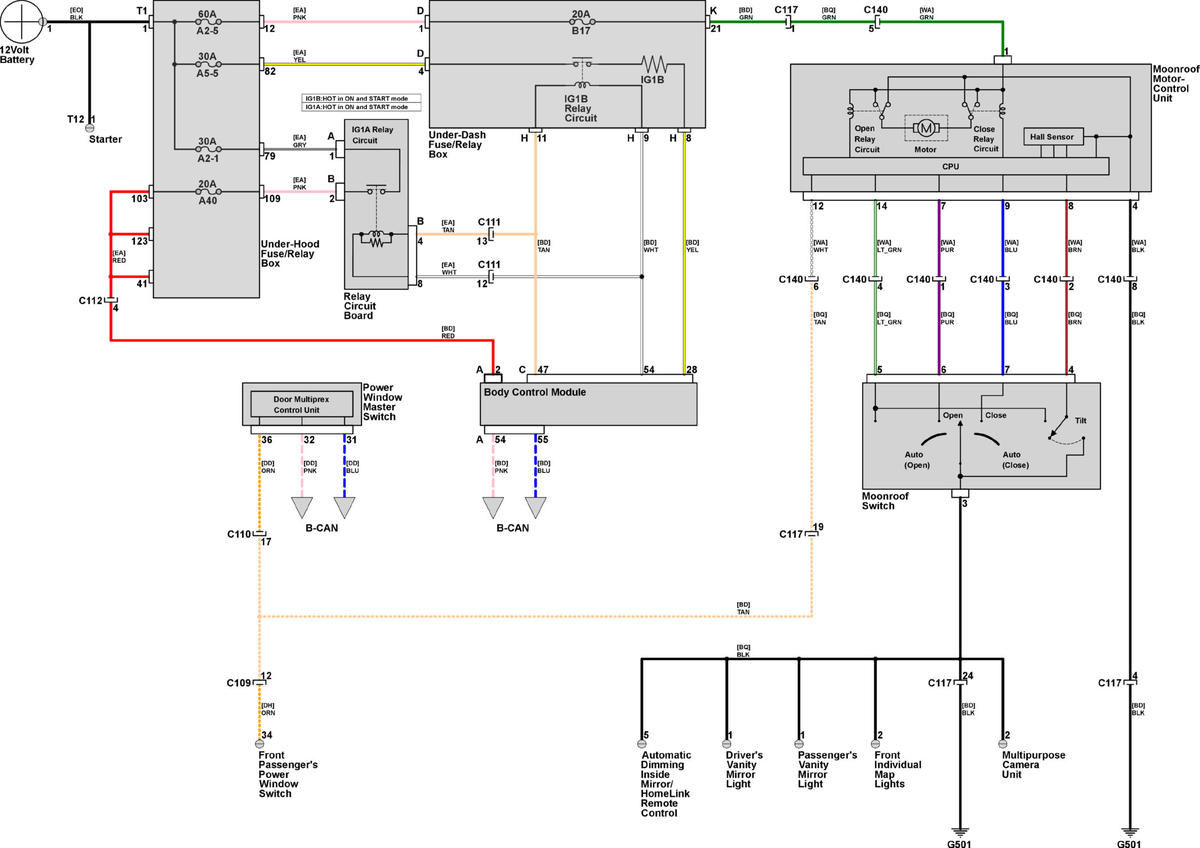

GHHW17195Courtesy of EWD

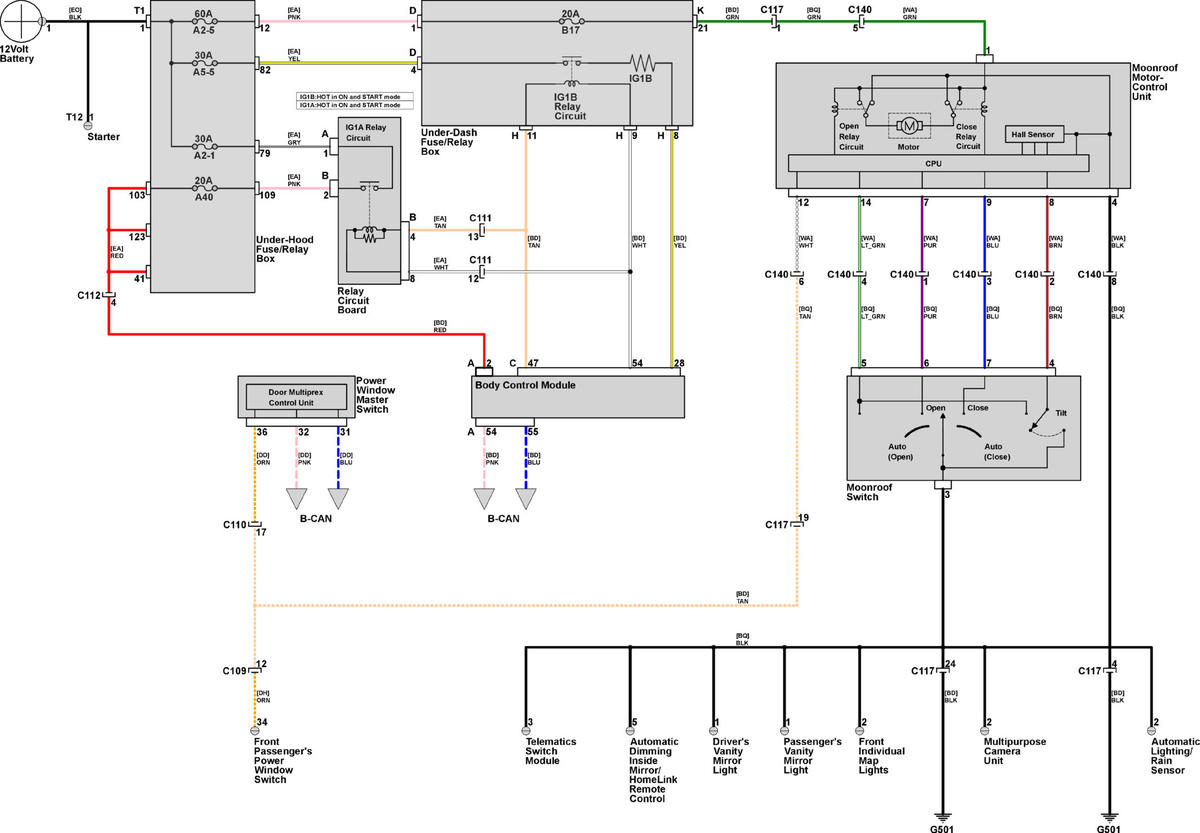

GHHW17196Courtesy of EWD

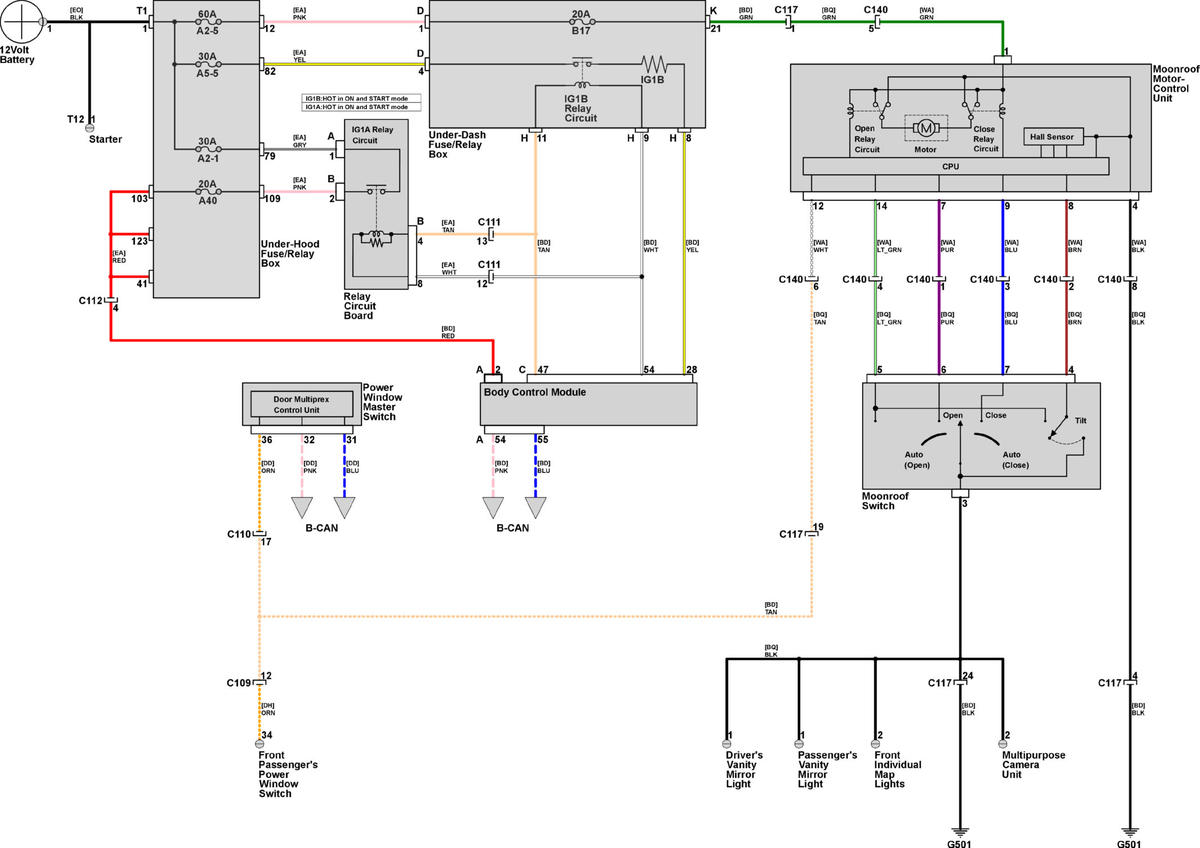

GHHW17197Courtesy of EWD
