Mil Circuit

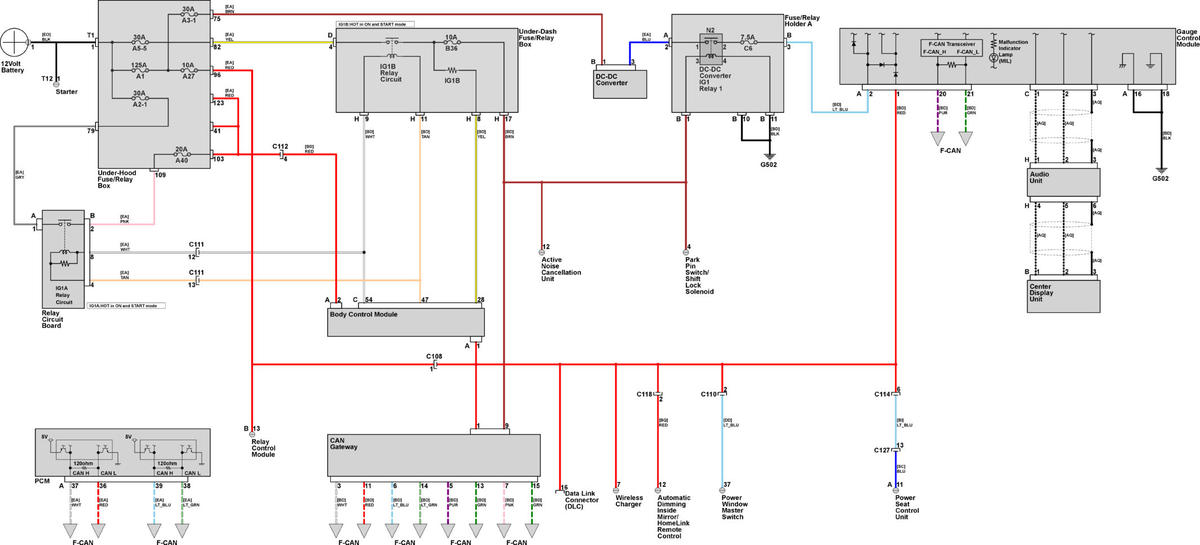

GHHW17191Courtesy of EWD

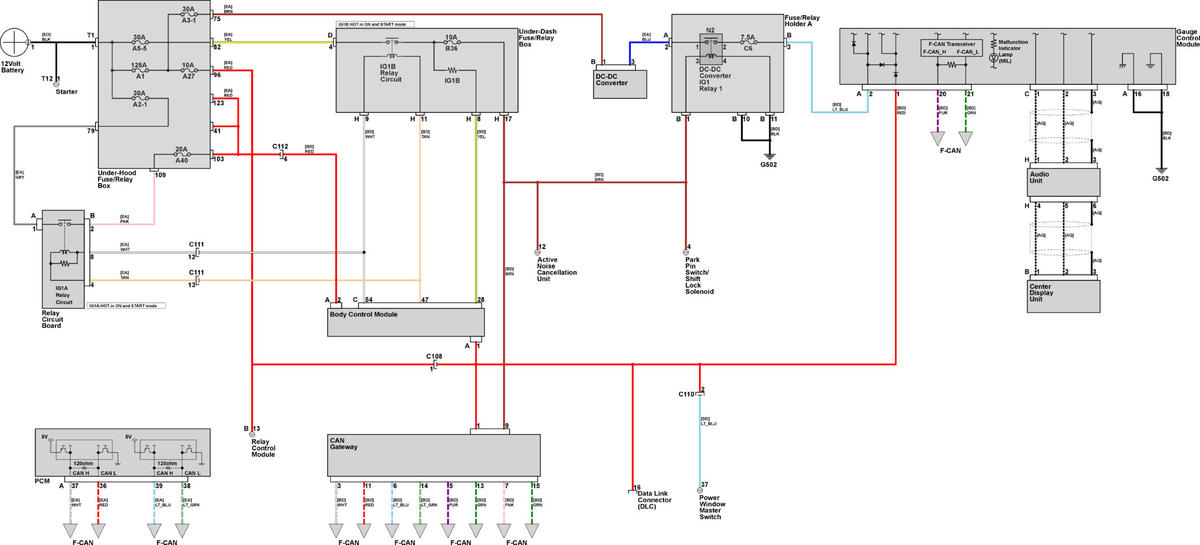

GHHW17192Courtesy of EWD
GHHW17192Courtesy of EWD

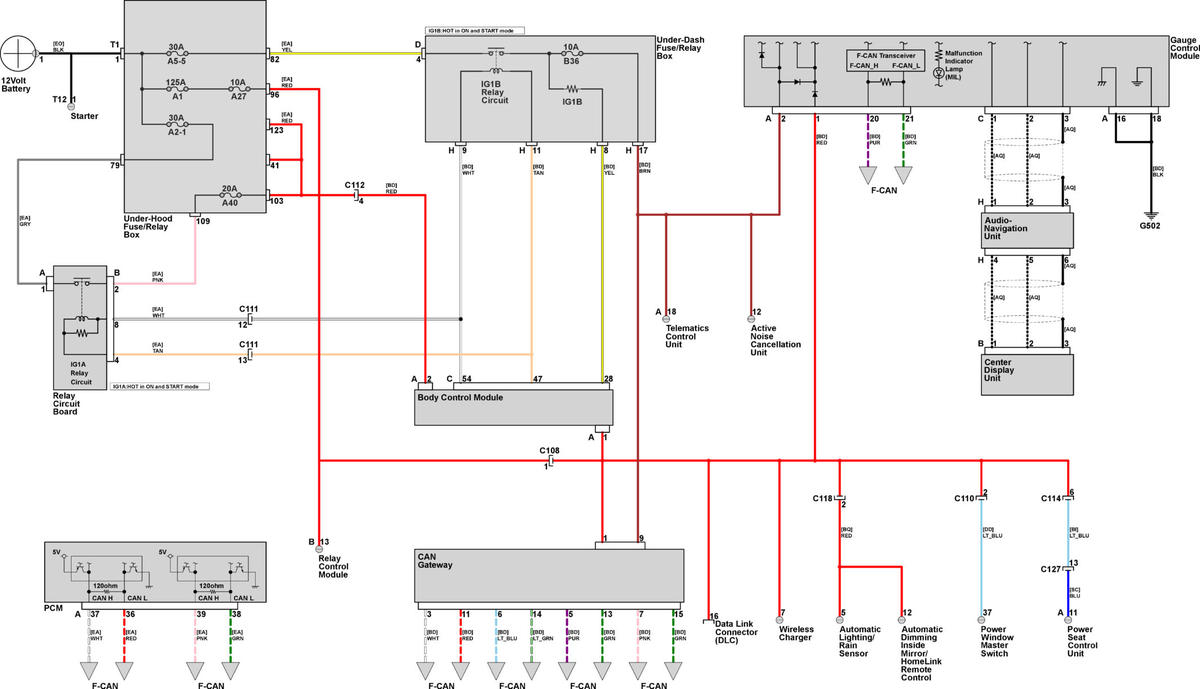

GHHW17193Courtesy of EWD
GHHW17194Courtesy of EWD
GHHW17192Courtesy of EWD
