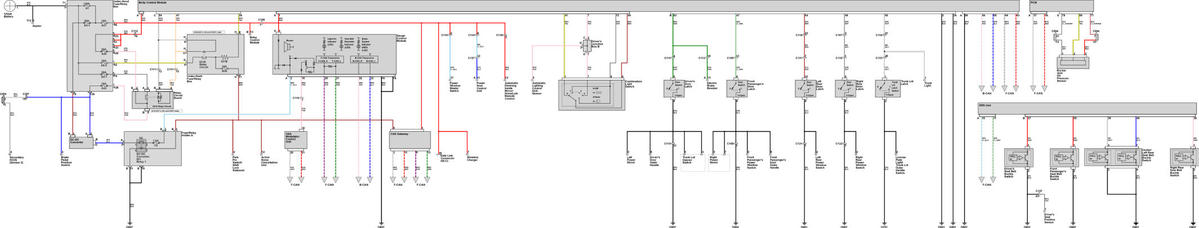

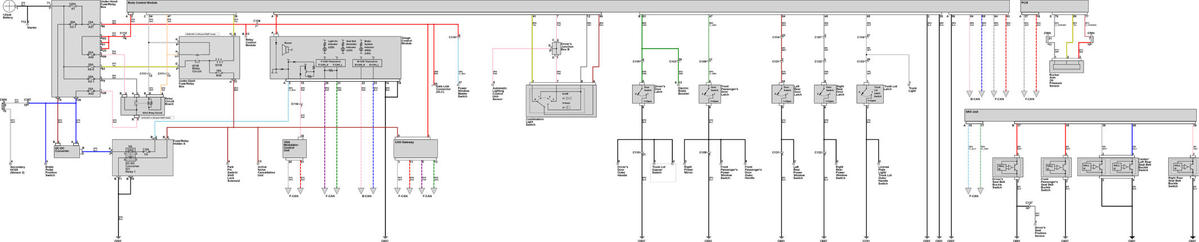

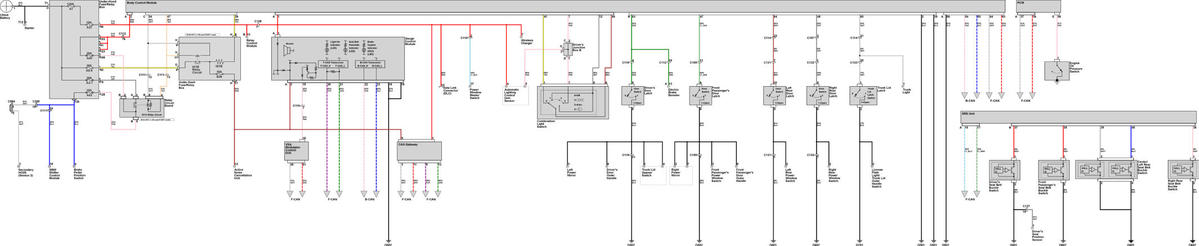

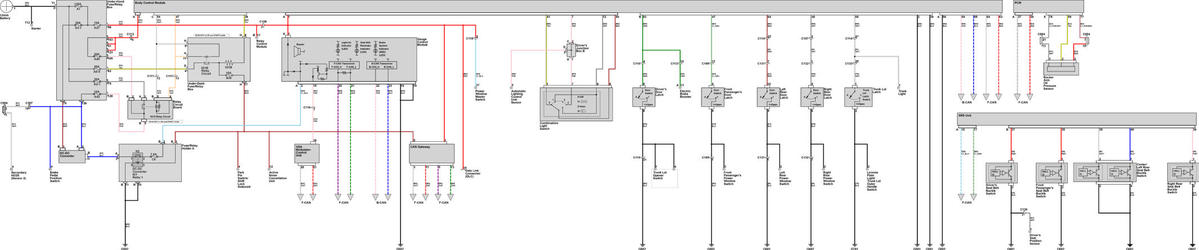

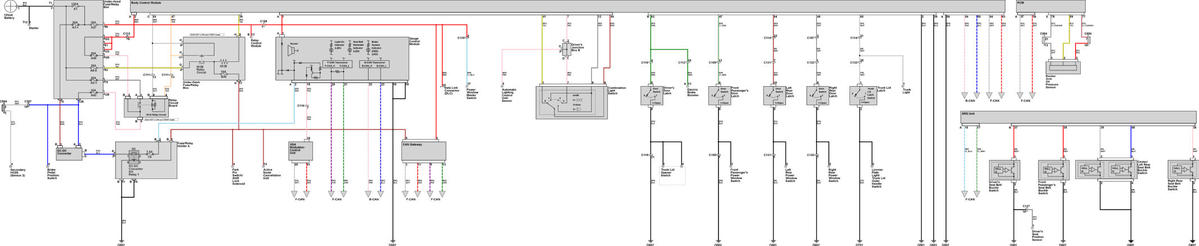

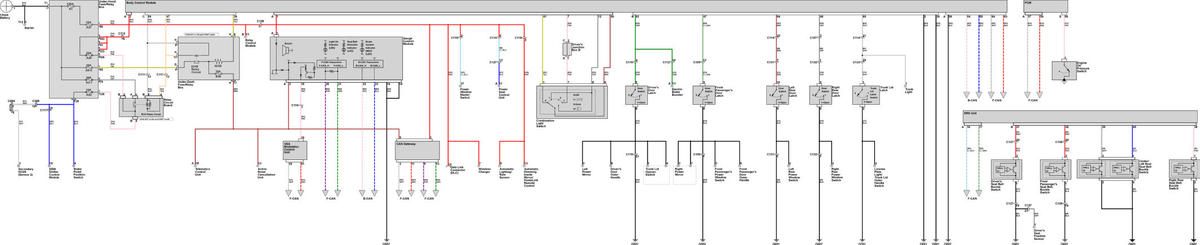

Low Oil Pressure Indicator, Reminder Systems, Safety Indicator
Low Oil Pressure Indicator, Reminder Systems, Safety Indicator
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
