Lin Communication Line

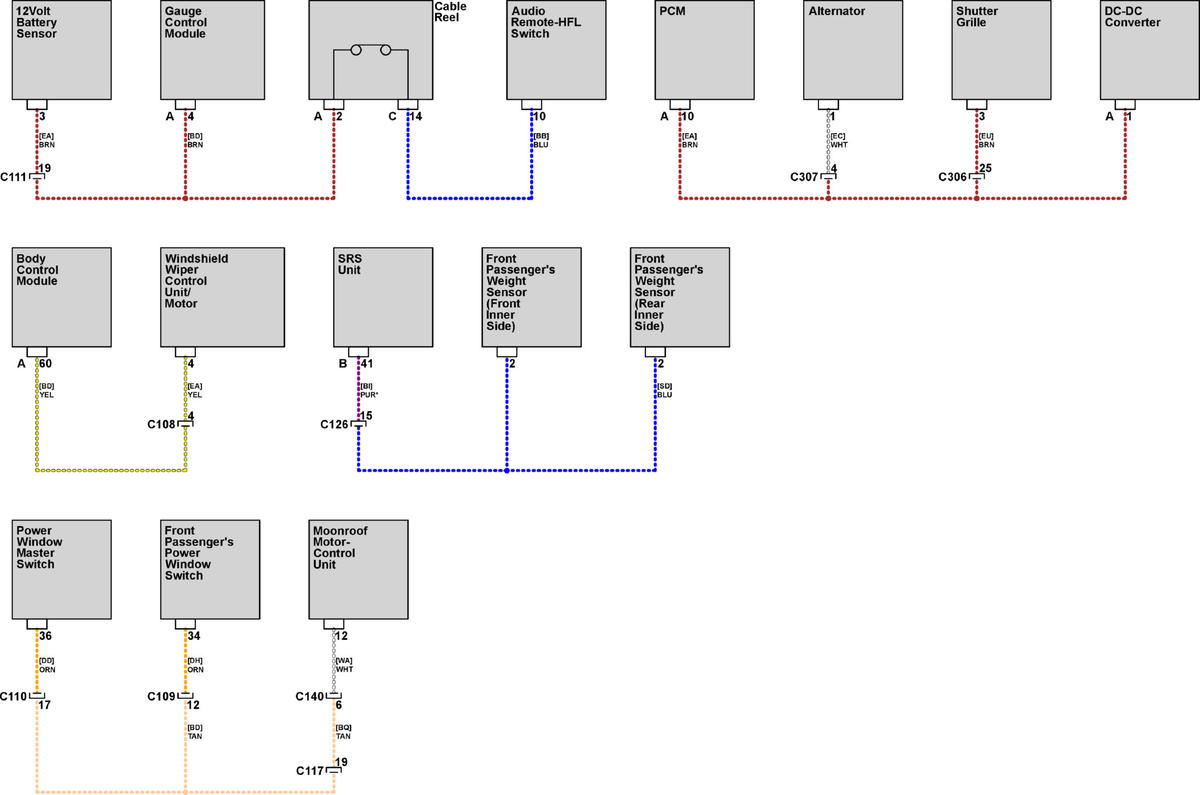

GHHW17170Courtesy of EWD
GHHW17171Courtesy of EWD
GHHW17171Courtesy of EWD

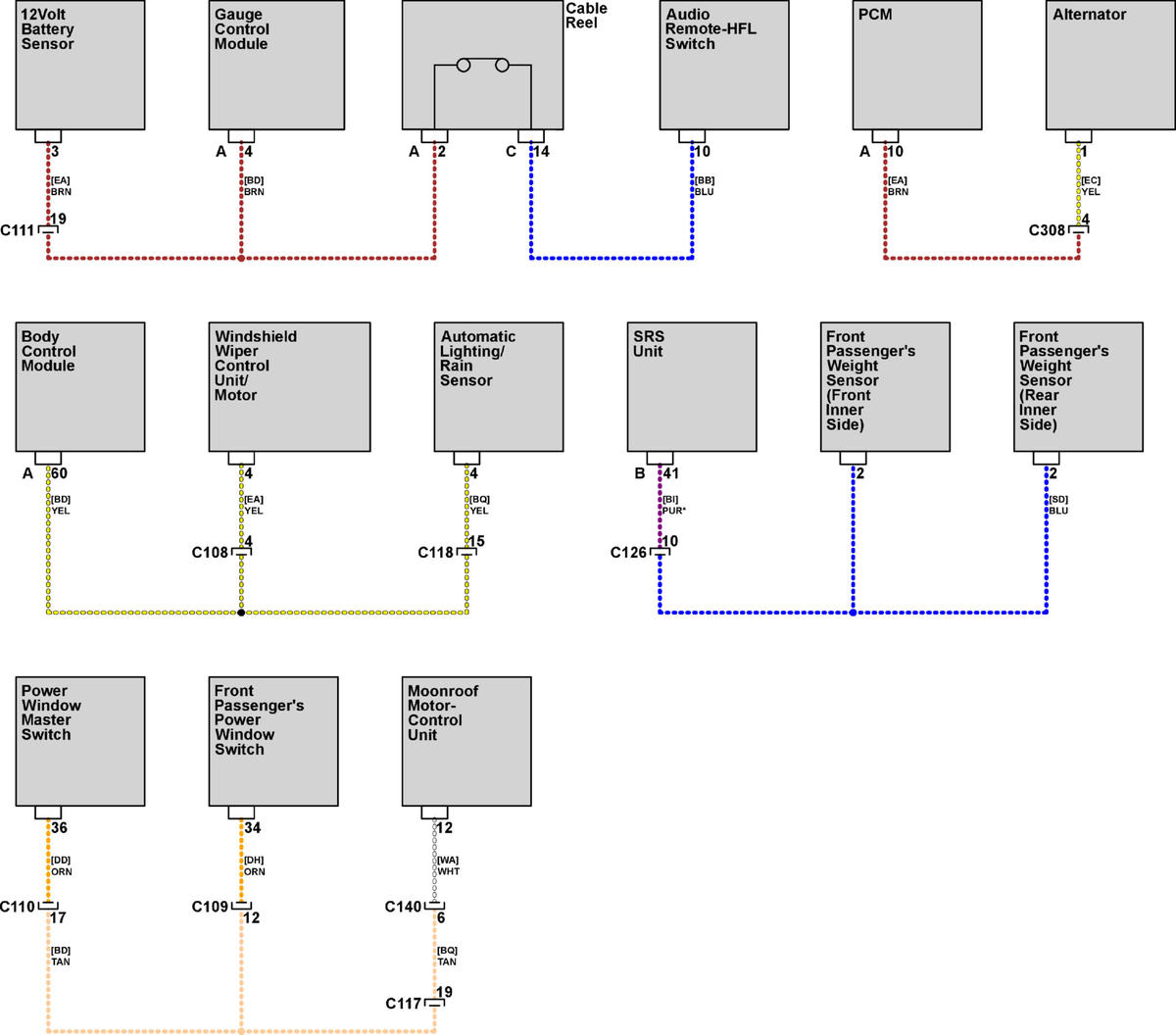

GHHW17172Courtesy of EWD

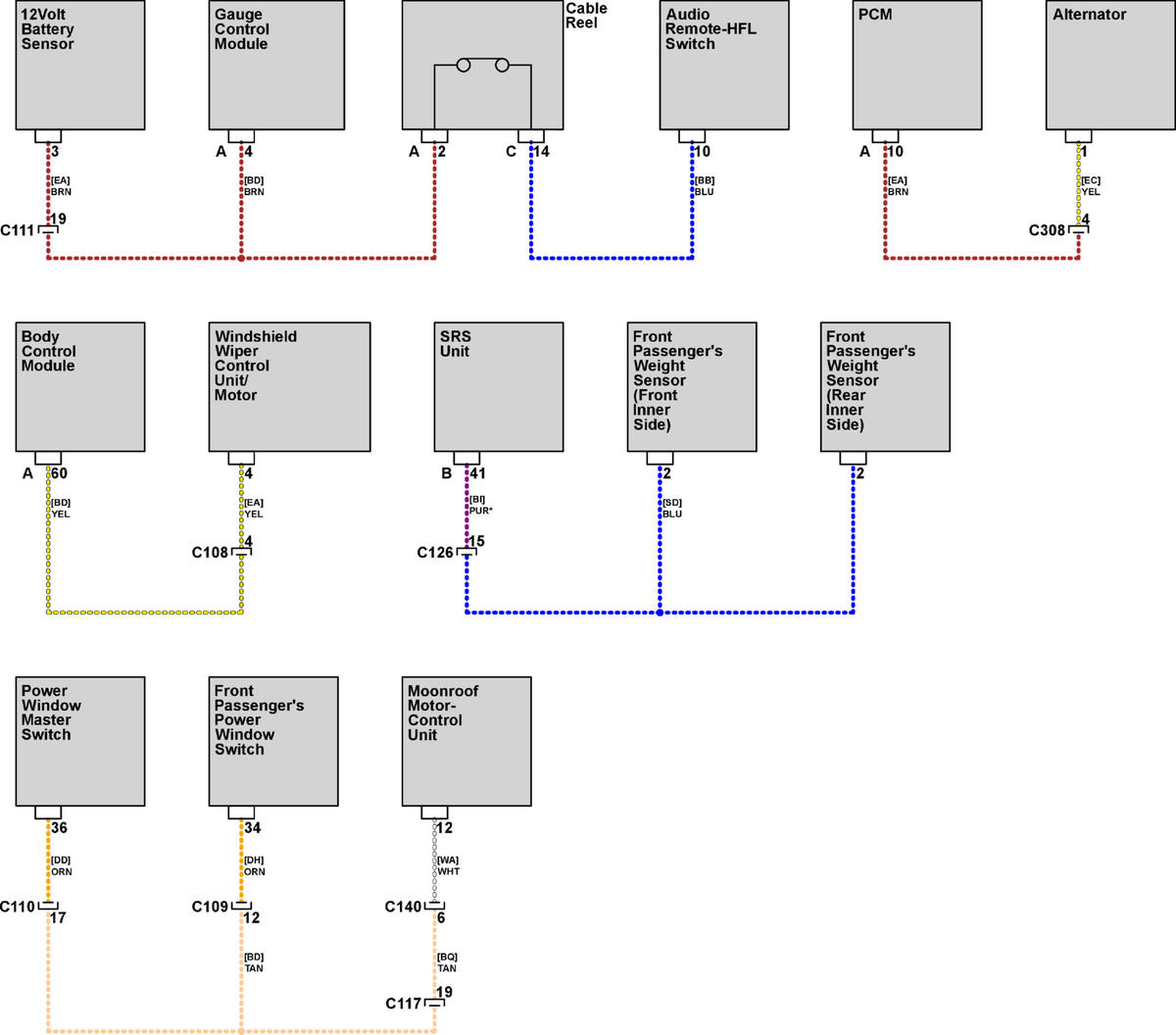

GHHW17173Courtesy of EWD

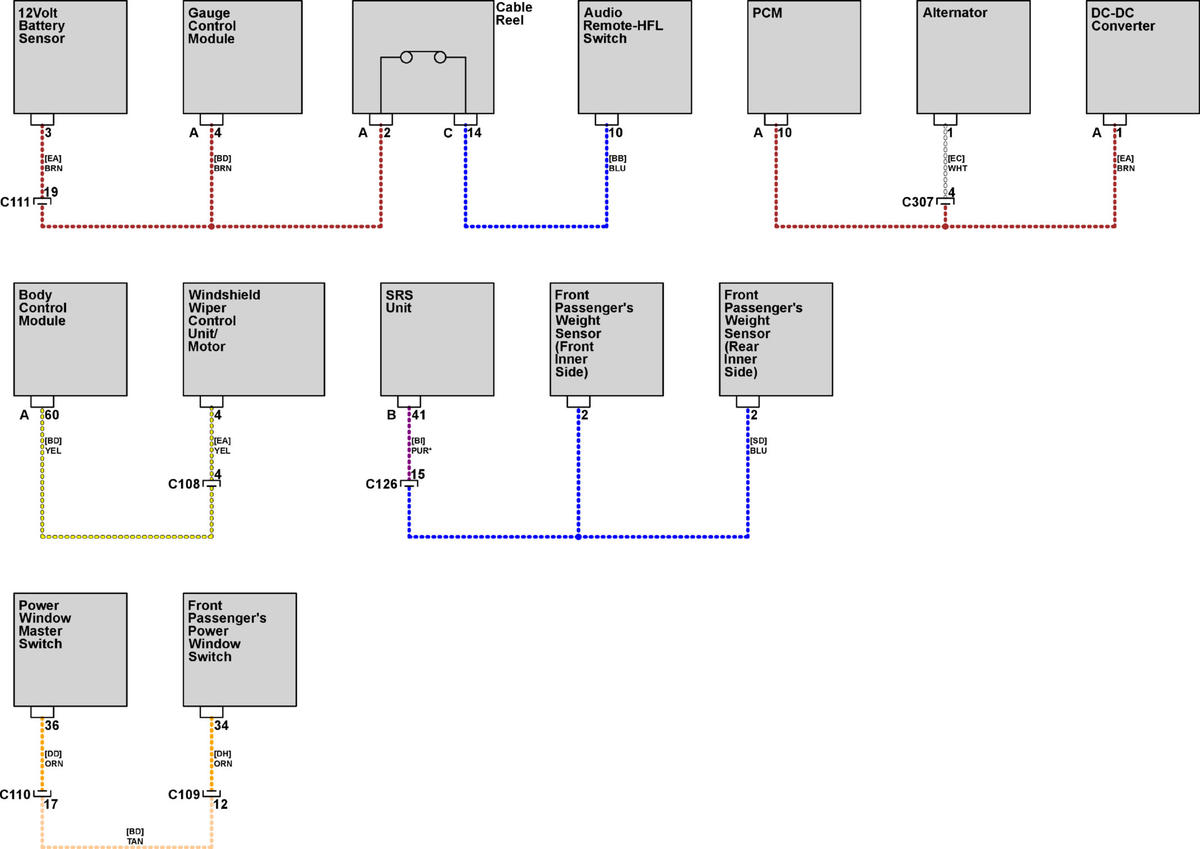

GHHW17174Courtesy of EWD
