Lane Keeping Assist System (LKAS)

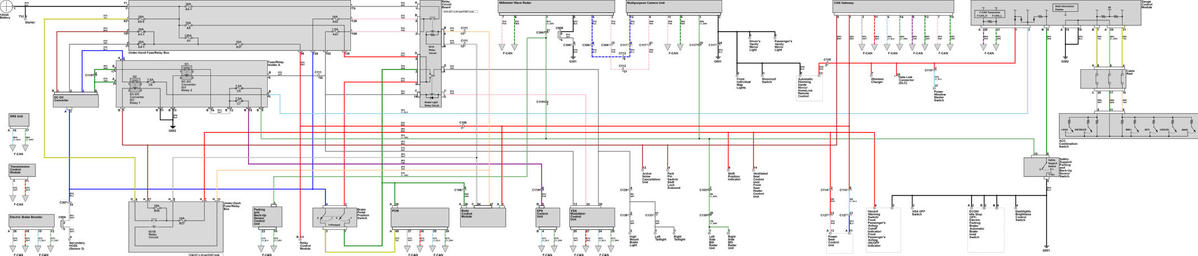

GHHW17175Courtesy of EWD

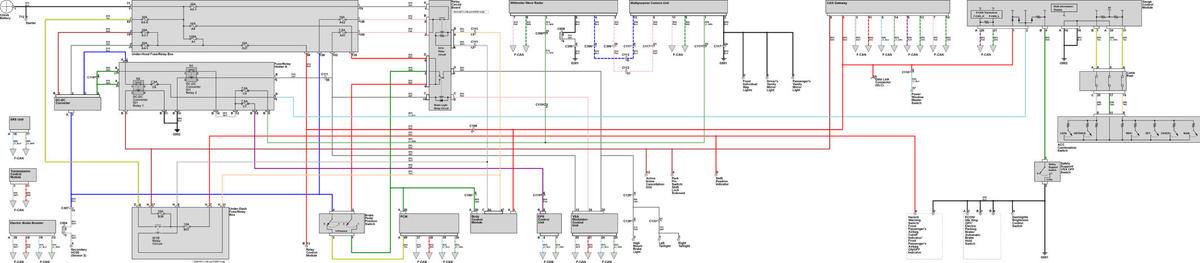

GHHW17176Courtesy of EWD

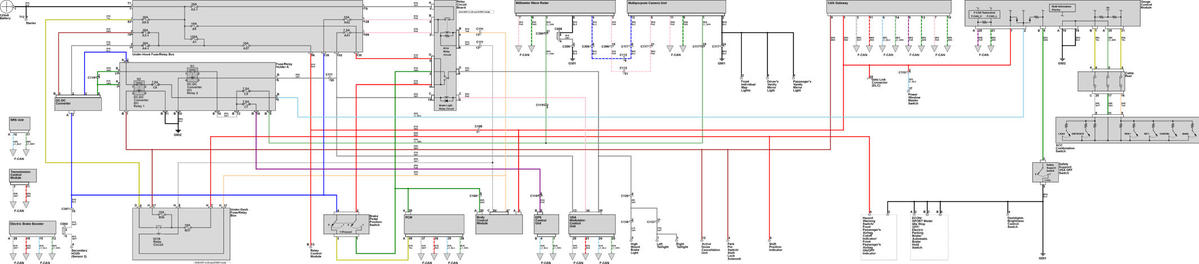

GHHW17177Courtesy of EWD

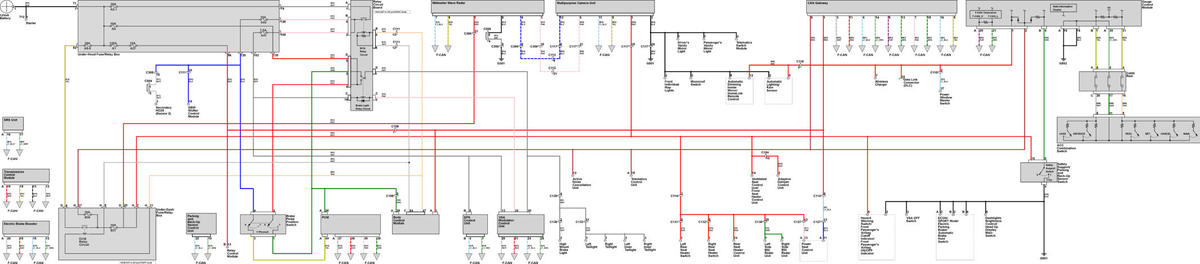

GHHW17178Courtesy of EWD

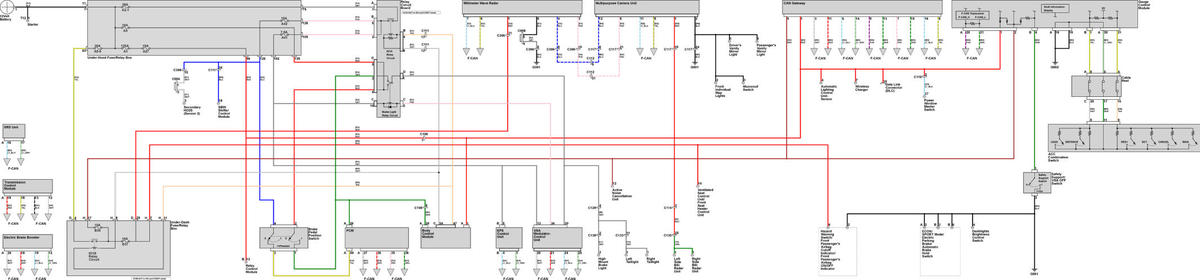

GHHW17179Courtesy of EWD

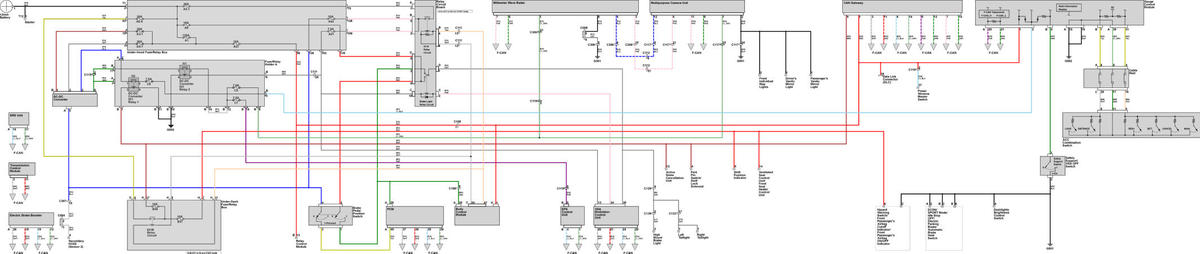

GHHW17180Courtesy of EWD
