Lane Departure Warning System (LDW)

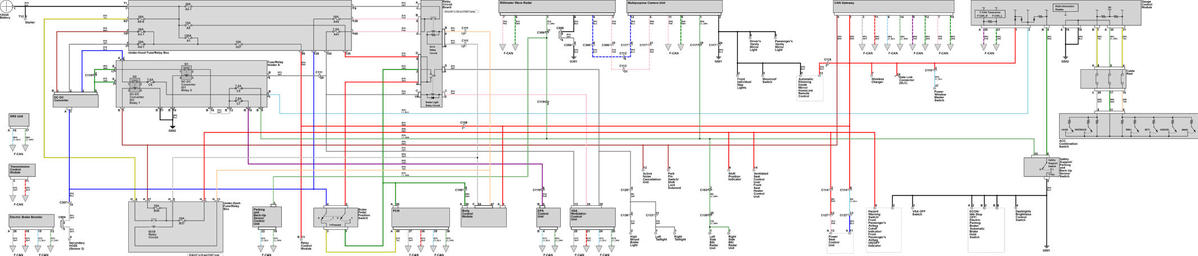

GHHW17158Courtesy of EWD

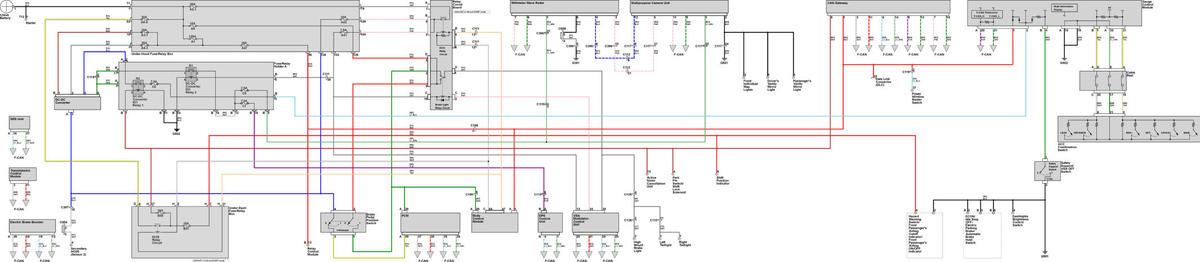

GHHW17159Courtesy of EWD

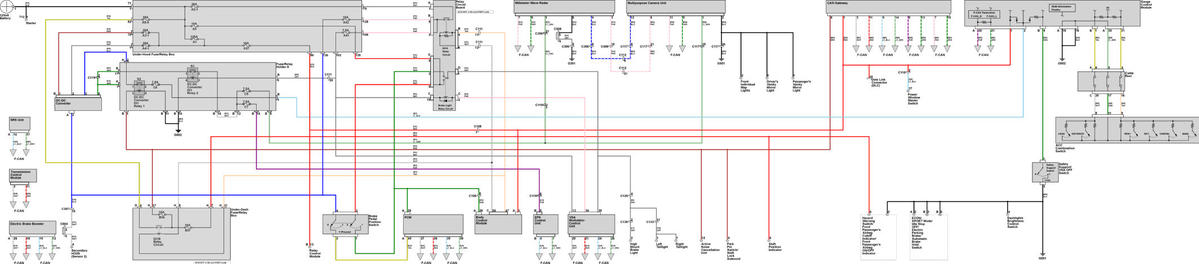

GHHW17160Courtesy of EWD

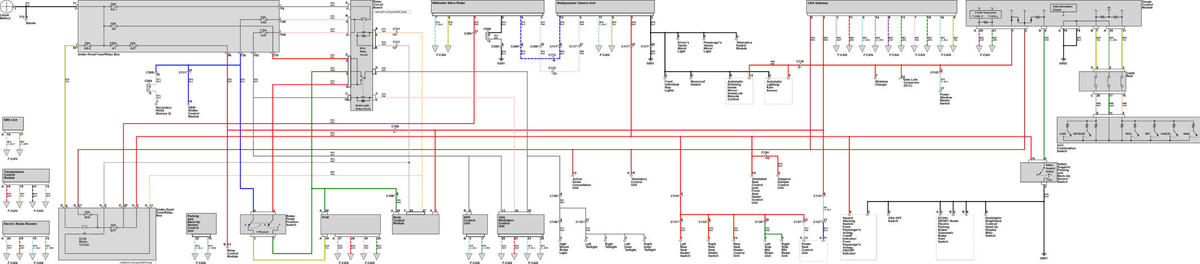

GHHW17161Courtesy of EWD

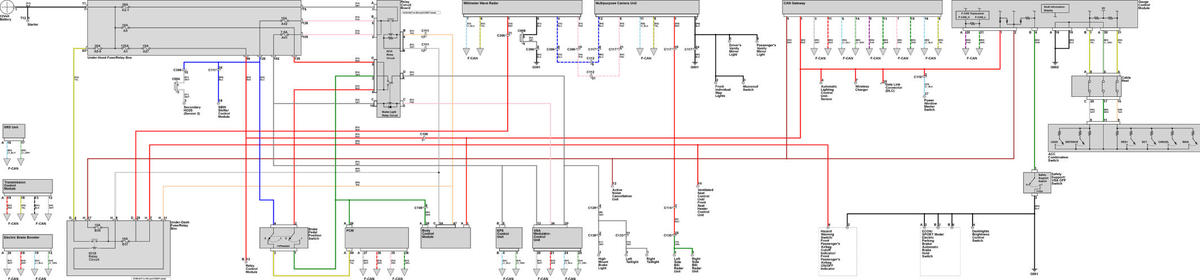

GHHW17162Courtesy of EWD
GHHW17163Courtesy of EWD
