Honda
>>
2021
>>
Accord Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Keyless/Power Door Locks/Security System

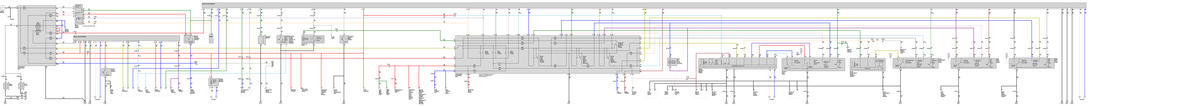

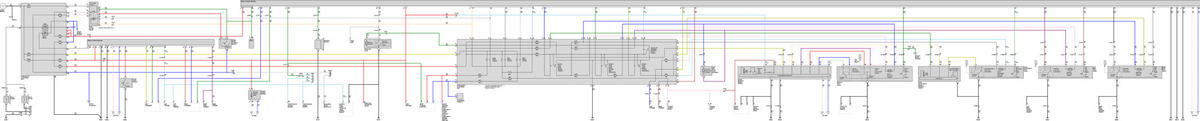

Keyless/Power Door Locks/Security System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
