Keyless Access System
Keyless Access System

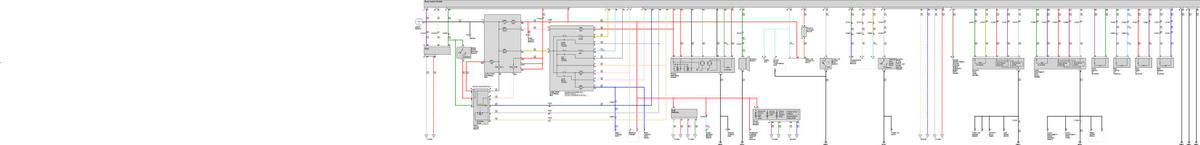

Courtesy of EWD

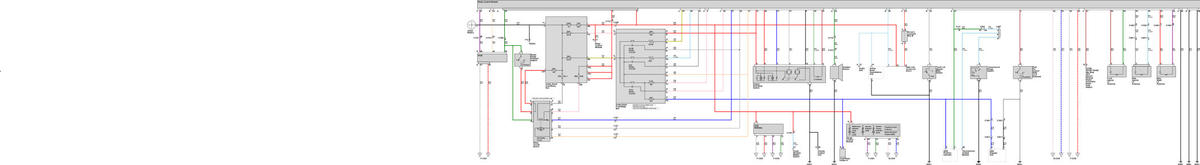

Courtesy of EWD

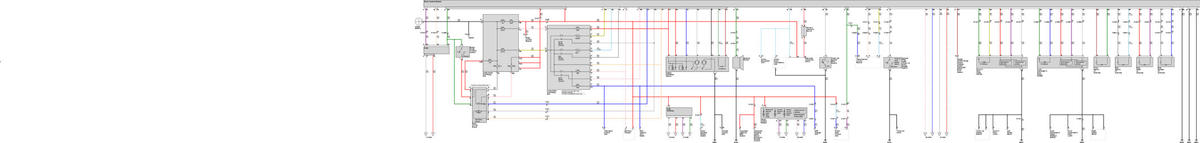

Courtesy of EWD

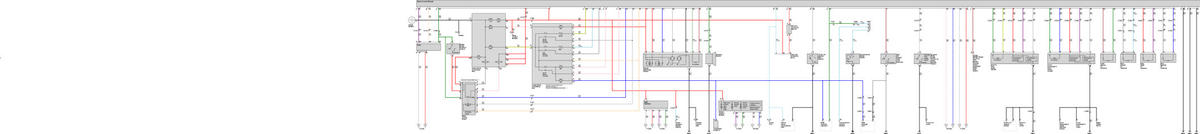

Courtesy of EWD

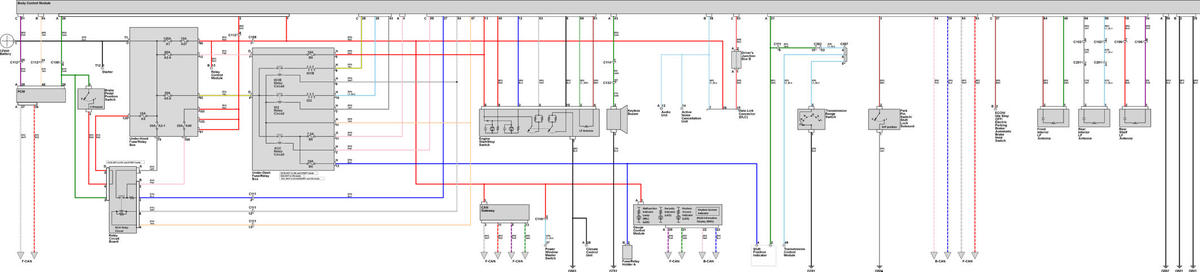

Courtesy of EWD

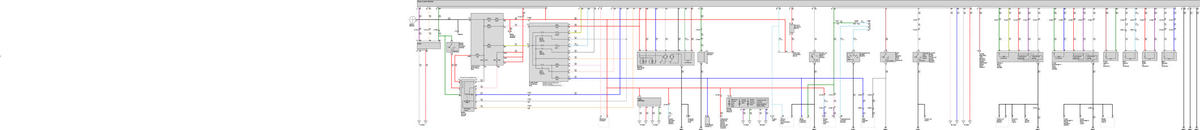

Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
