K-Line Communication Line

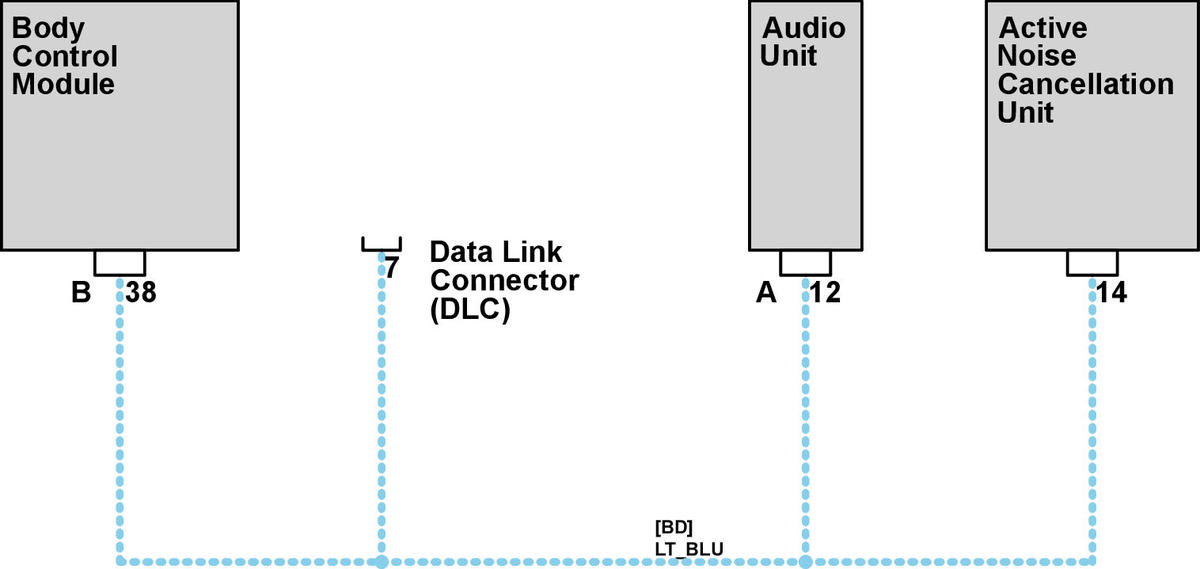

GHHW17156Courtesy of EWD
GHHW17156Courtesy of EWD
GHHW17156Courtesy of EWD

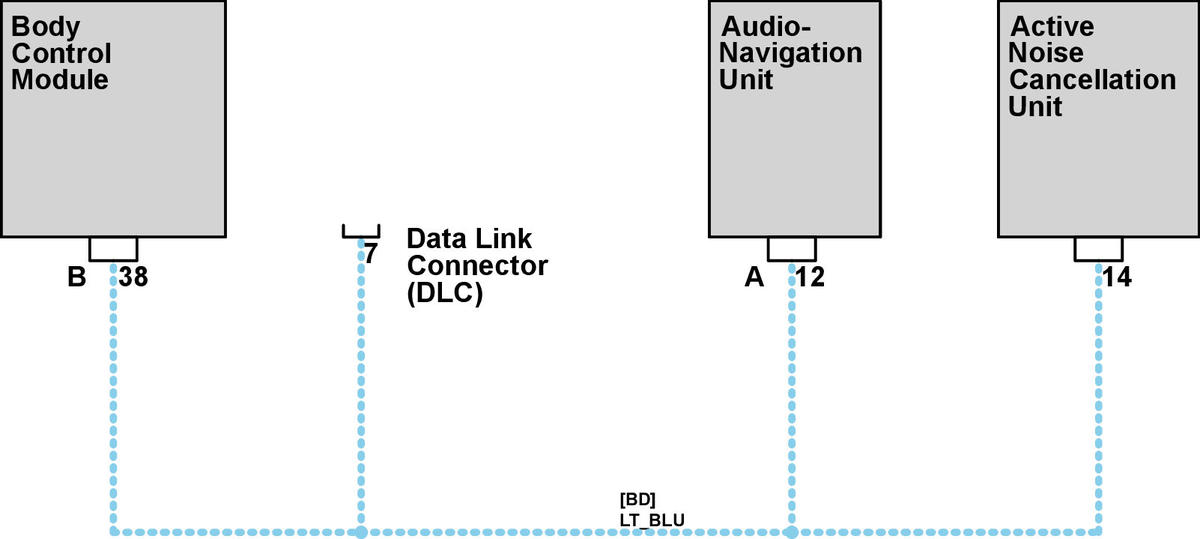

GHHW17157Courtesy of EWD
GHHW17156Courtesy of EWD
GHHW17156Courtesy of EWD
