Junction Connectors

GHHW17138Courtesy of EWD

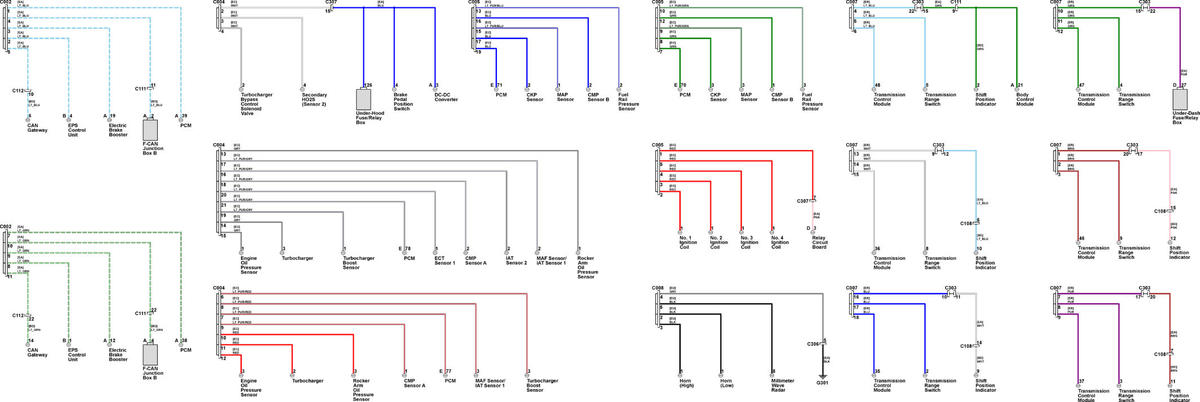

GHHW17139Courtesy of EWD
GHHW17140Courtesy of EWD

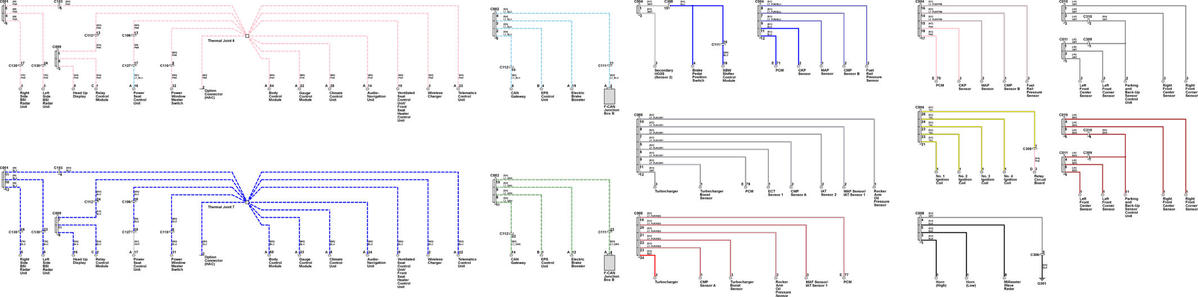

GHHW17141Courtesy of EWD

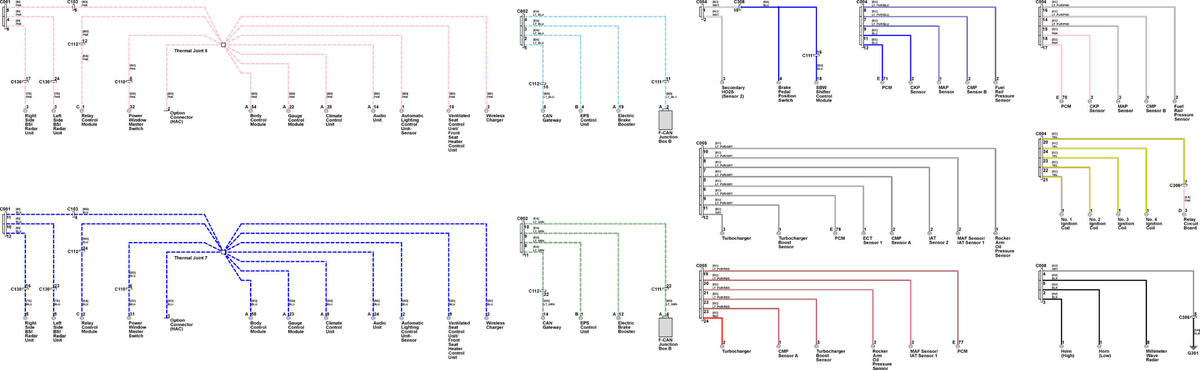

GHHW17142Courtesy of EWD

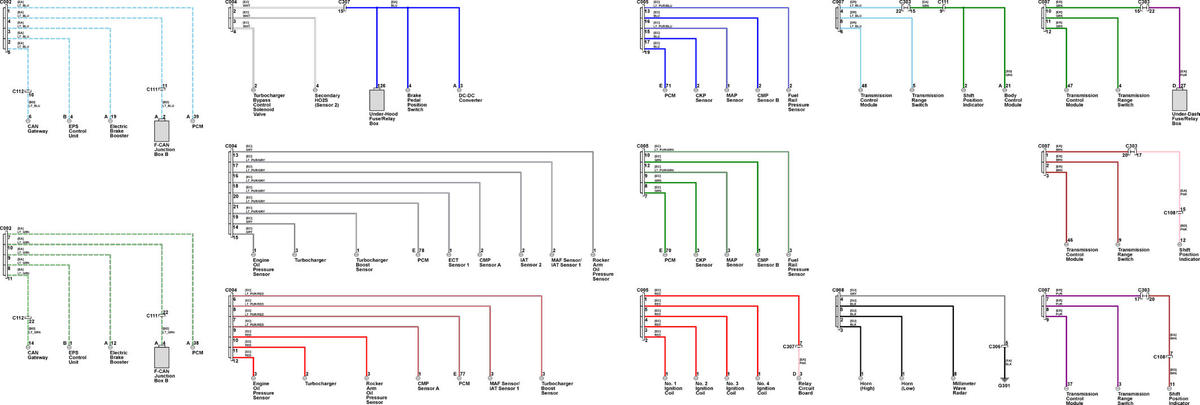

GHHW17143Courtesy of EWD
