Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Interior Lighting

Interior Lighting

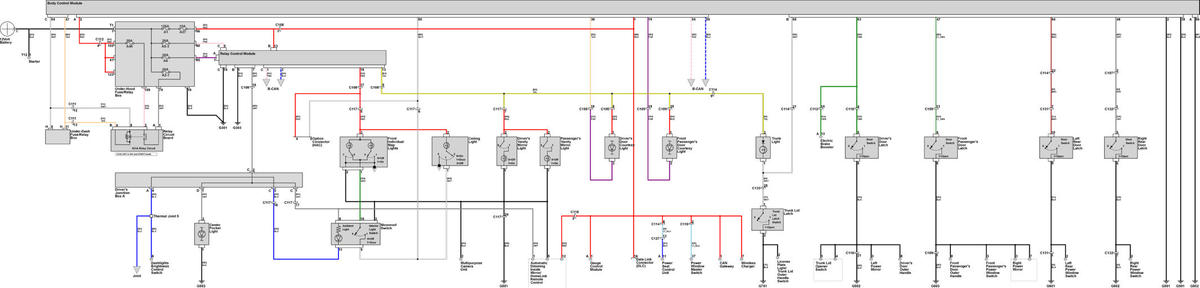

GHHW16975Courtesy of EWD

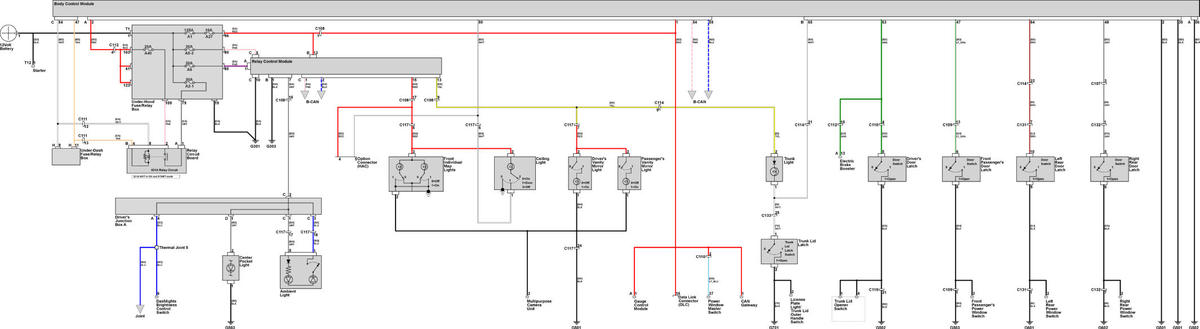

GHHW16976Courtesy of EWD
GHHW16976Courtesy of EWD

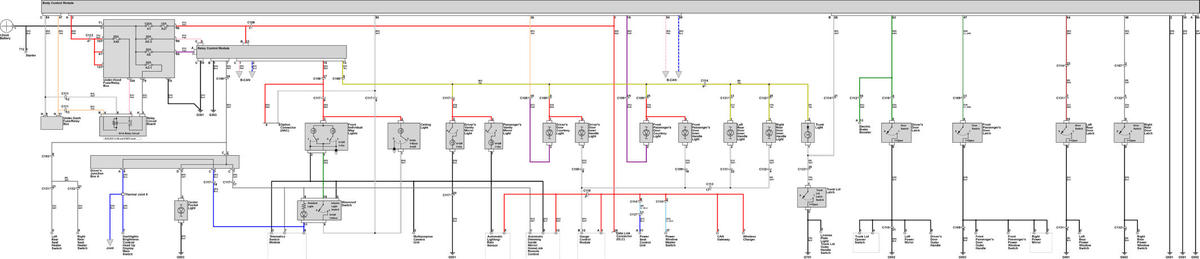

GHHW16977Courtesy of EWD

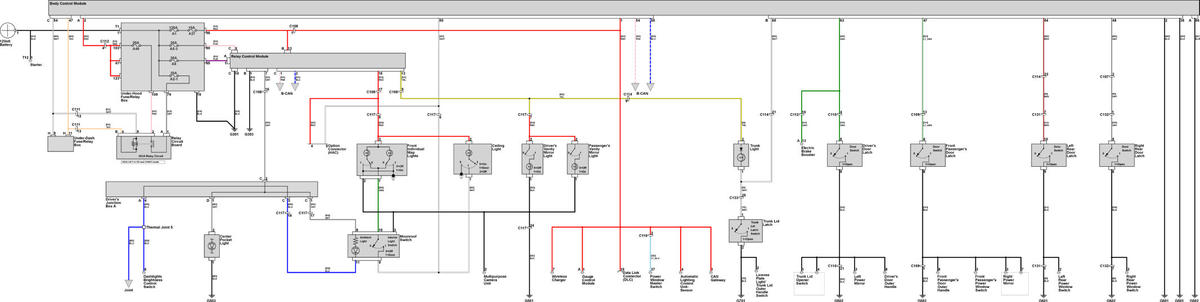

GHHW16978Courtesy of EWD

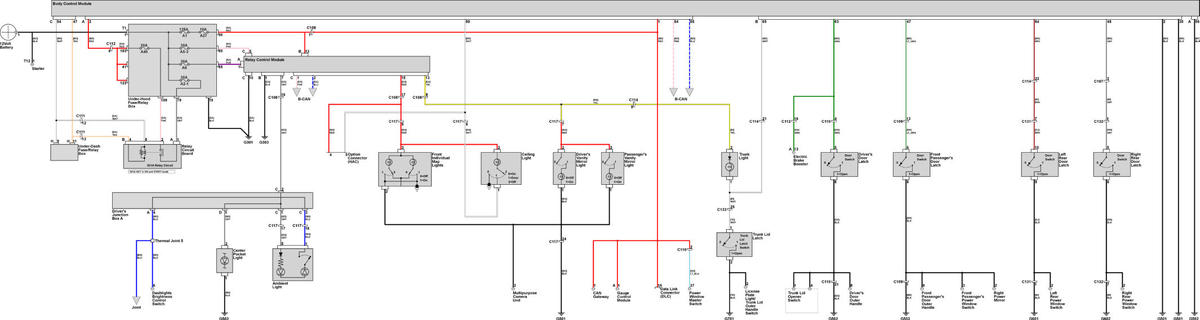

GHHW16979Courtesy of EWD
