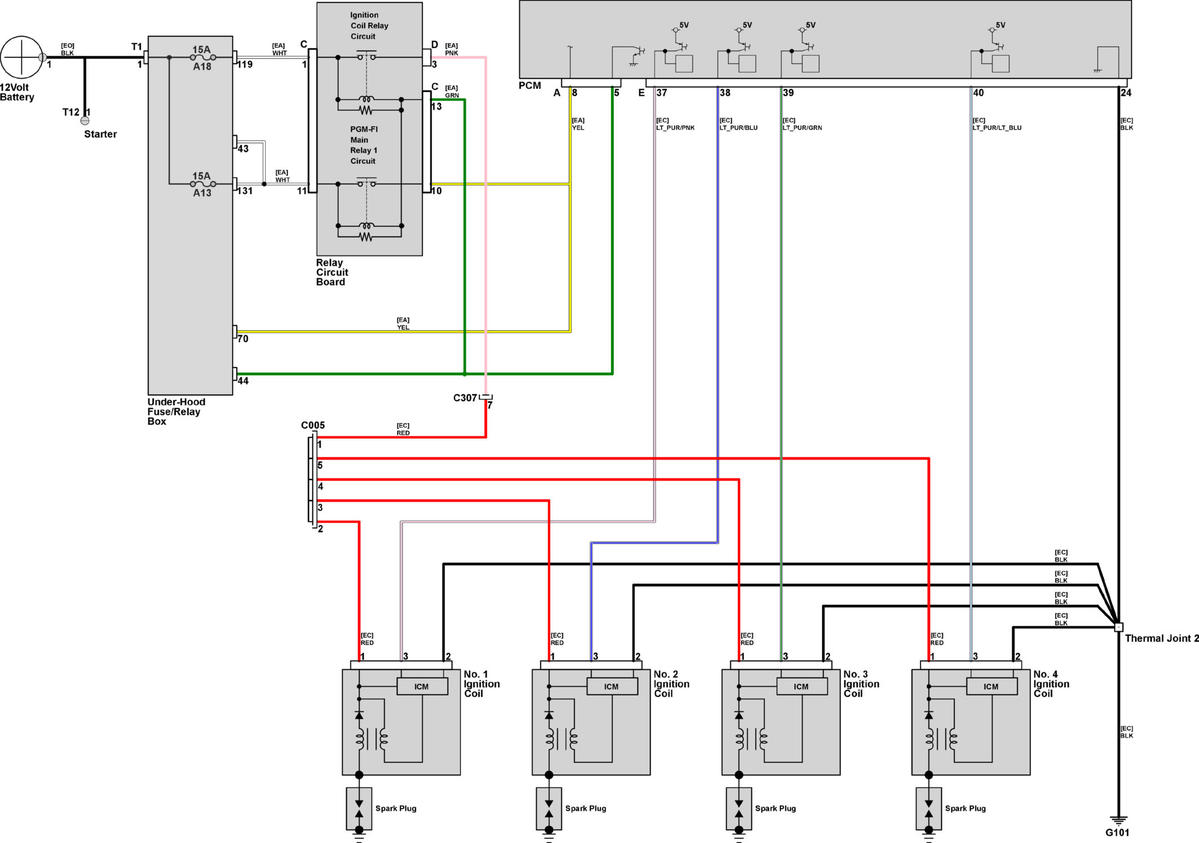

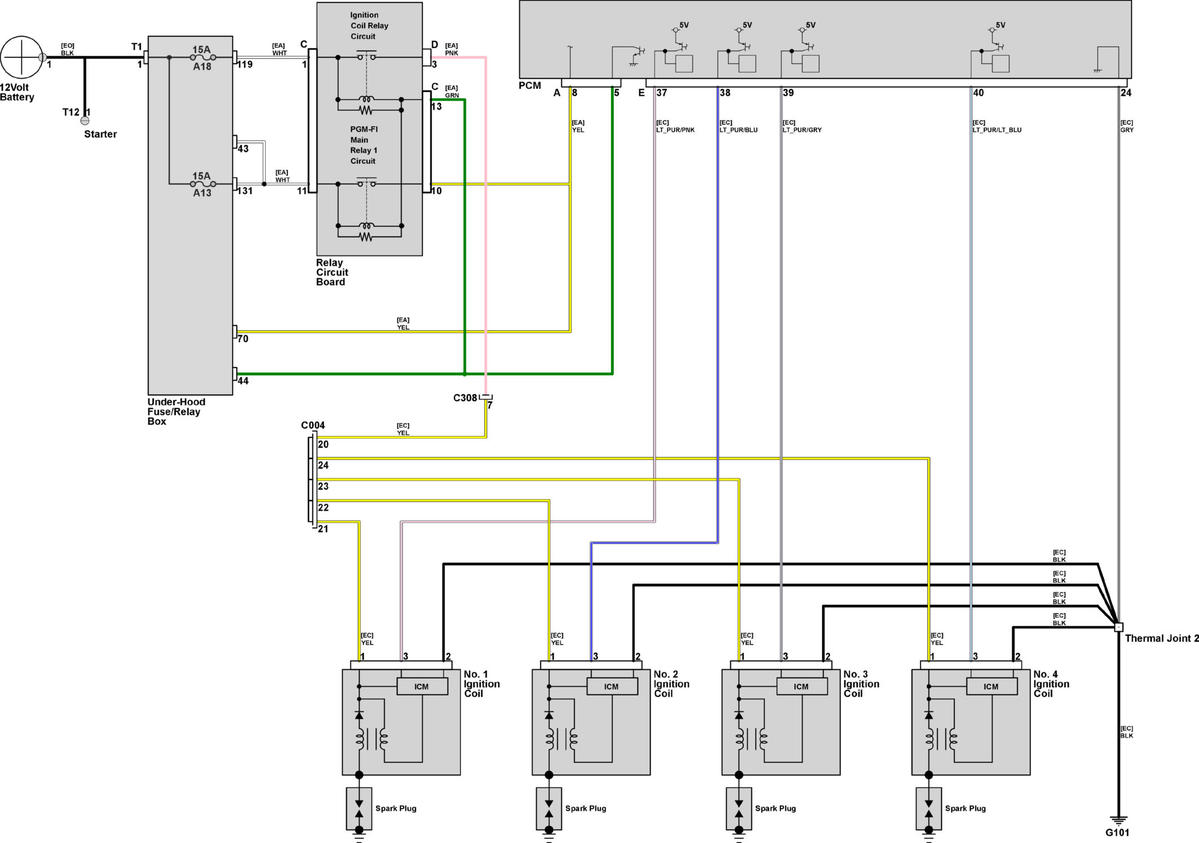

Ignition System
Ignition System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
