Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Heated Windshield Wiper Area/Rear Window/Power Mirror Defoggers

Heated Windshield Wiper Area/Rear Window/Power Mirror Defoggers

GHHW17111Courtesy of EWD

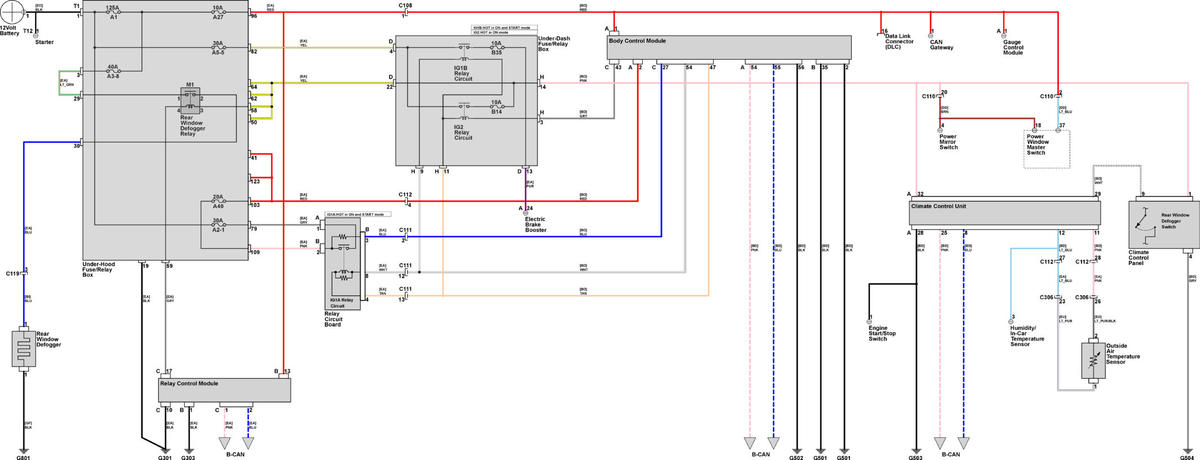

GHHW17112Courtesy of EWD

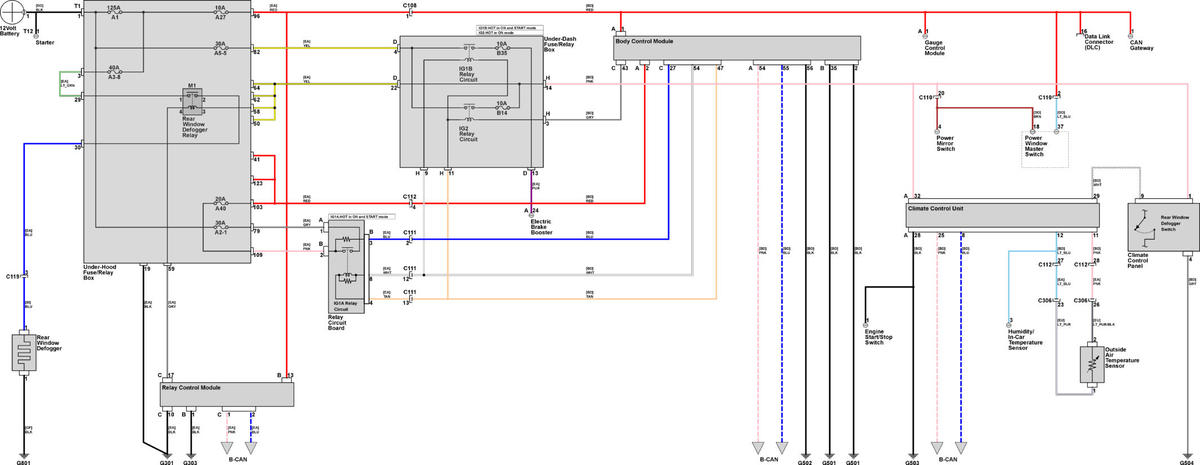

GHHW17113Courtesy of EWD

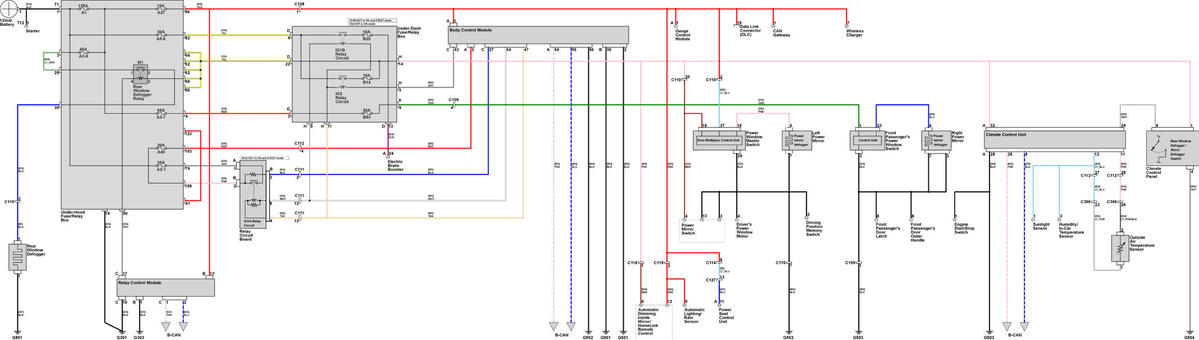

GHHW17114Courtesy of EWD

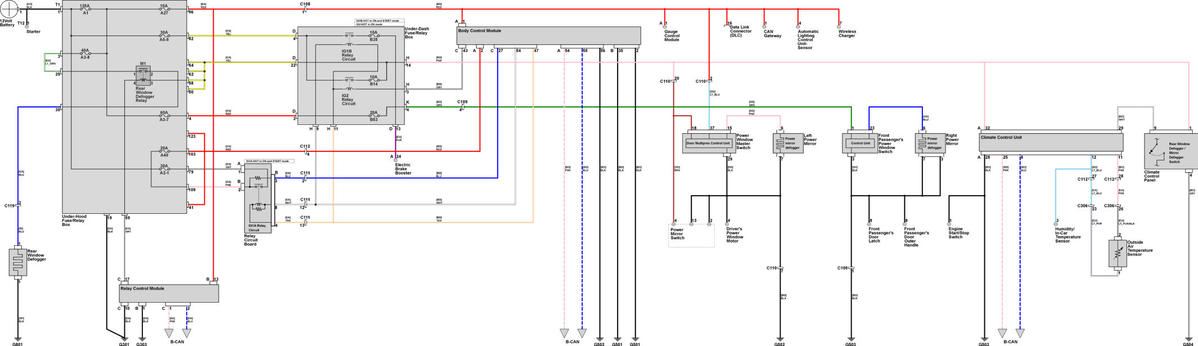

GHHW17115Courtesy of EWD

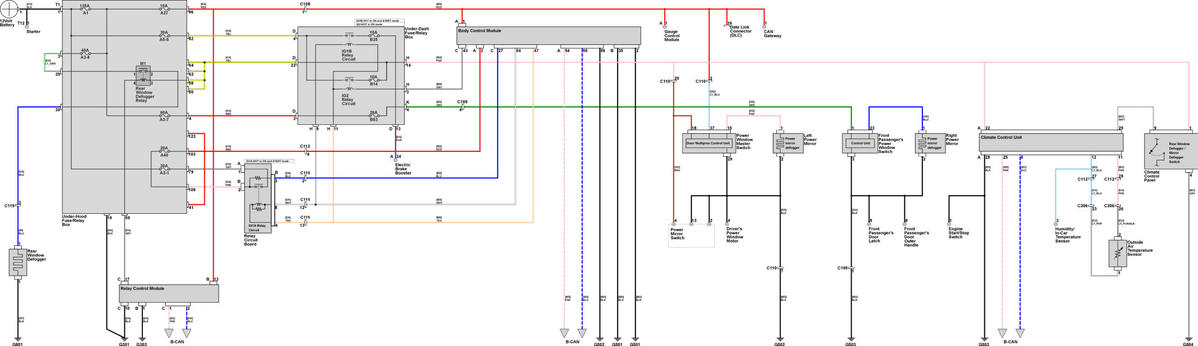

GHHW17116Courtesy of EWD
