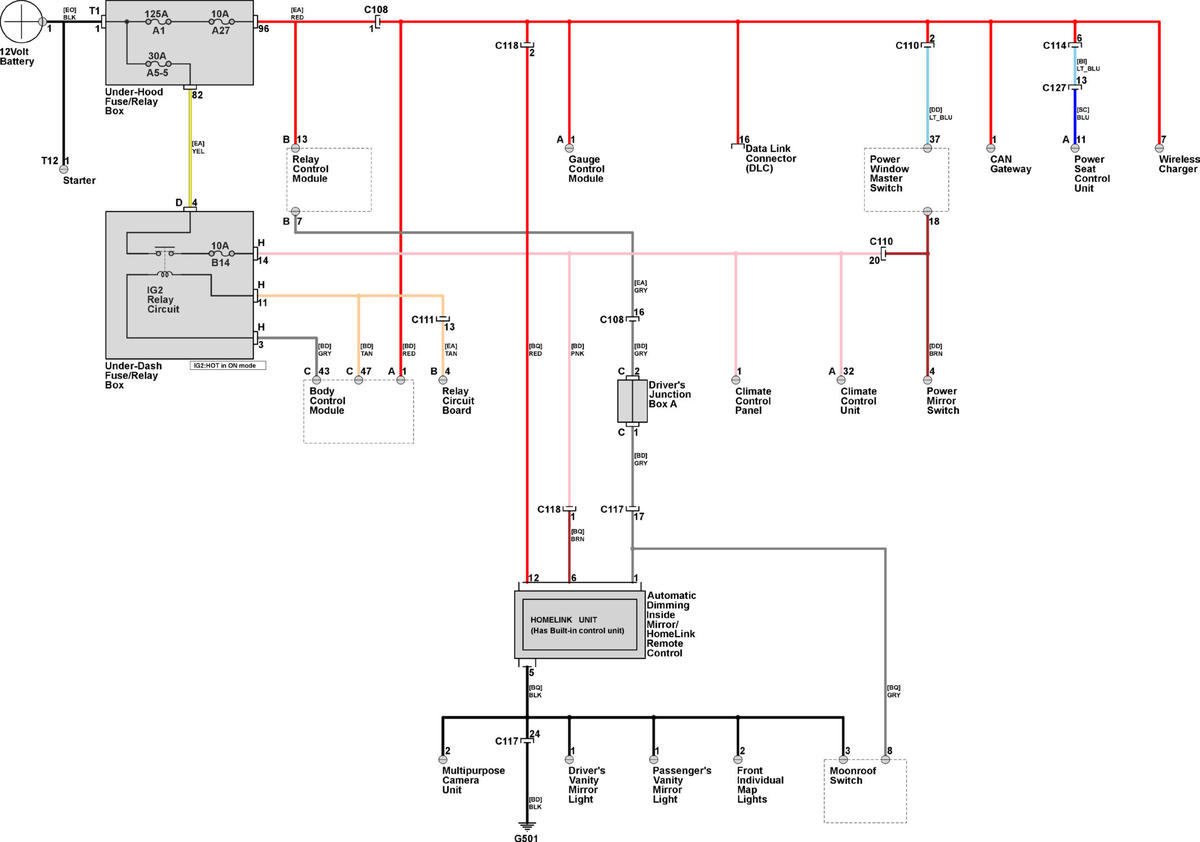

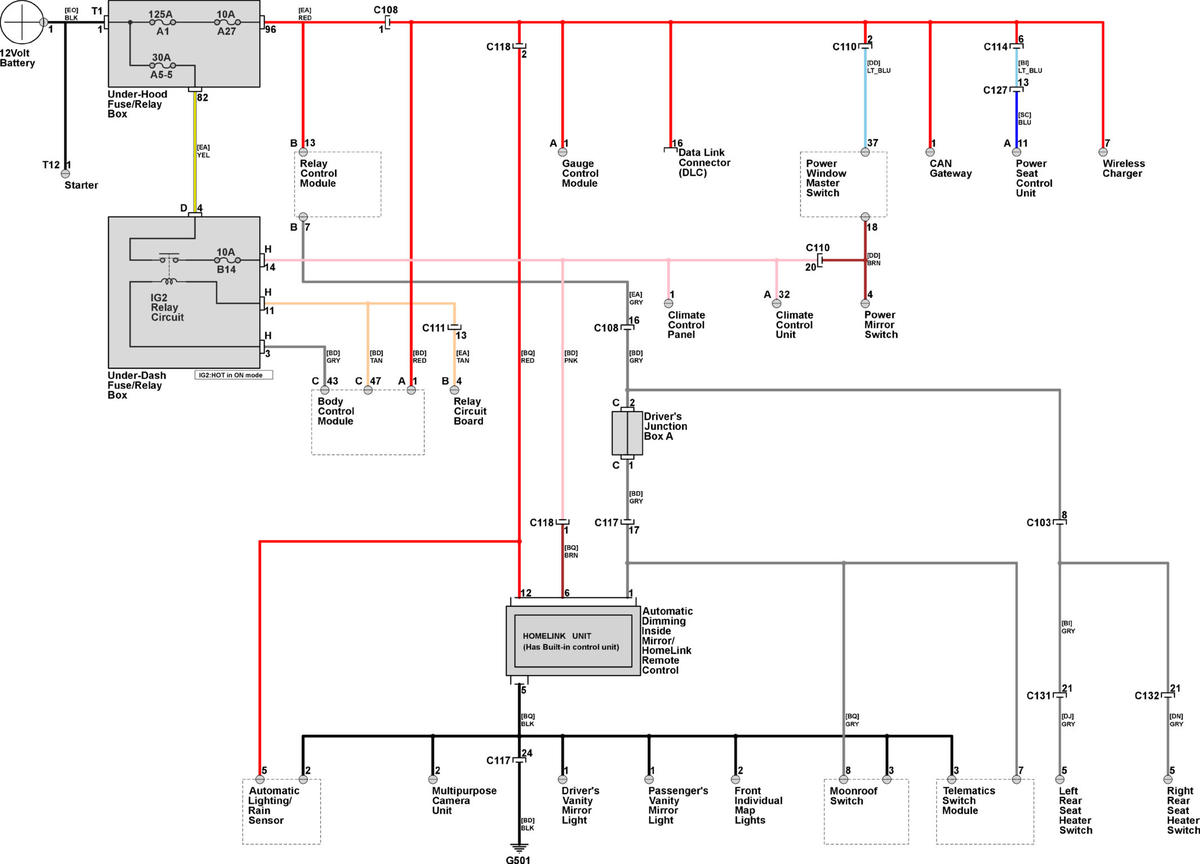

HOMELINK Remote Control System
HOMELINK Remote Control System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
