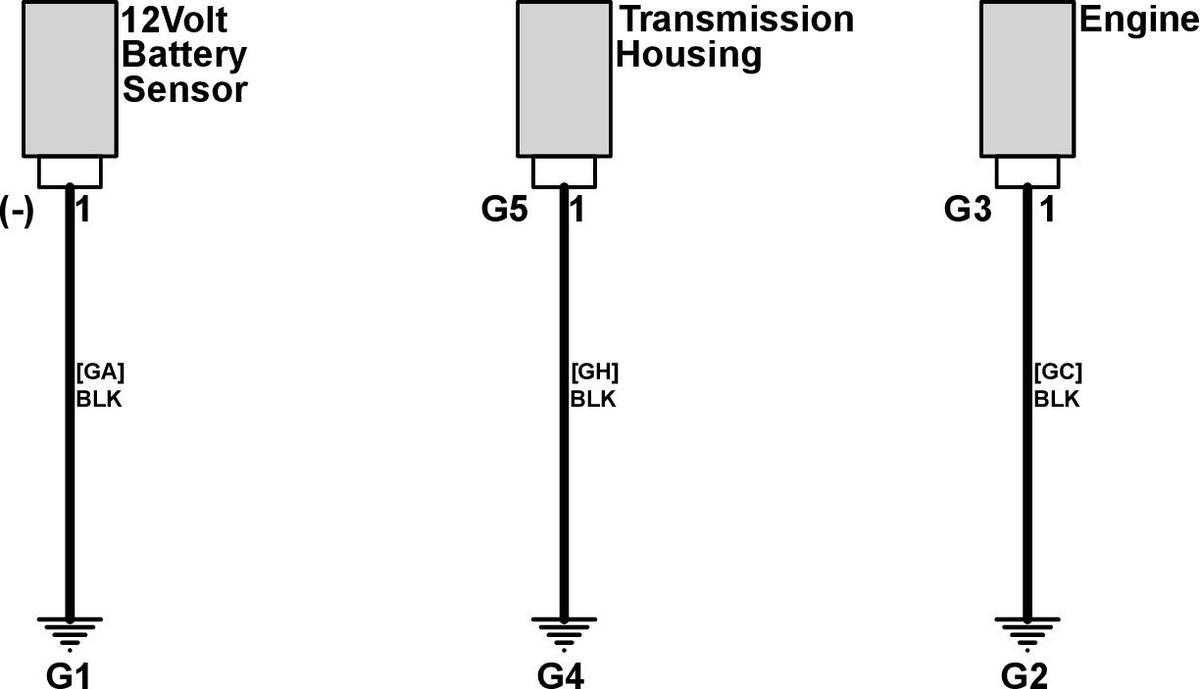

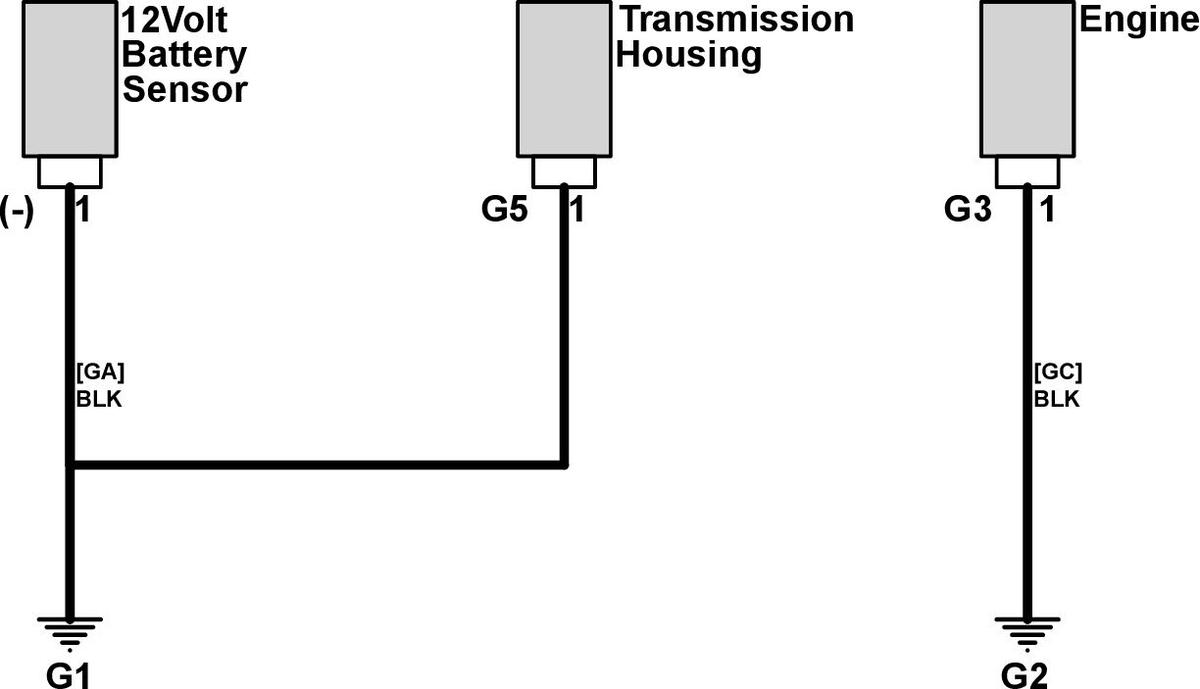

Ground Cable
Ground Cable
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
