Fog Lights

GHHW17087Courtesy of EWD
GHHW17088Courtesy of EWD

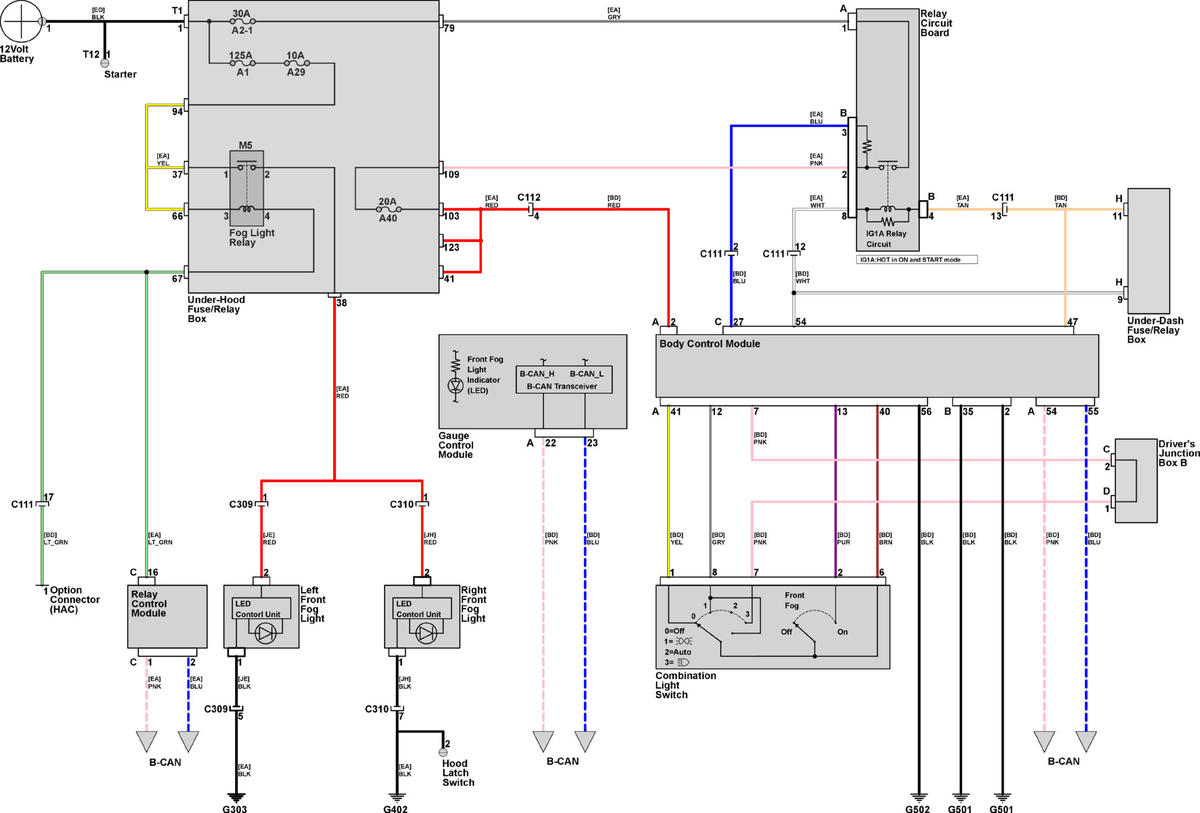

GHHW17089Courtesy of EWD

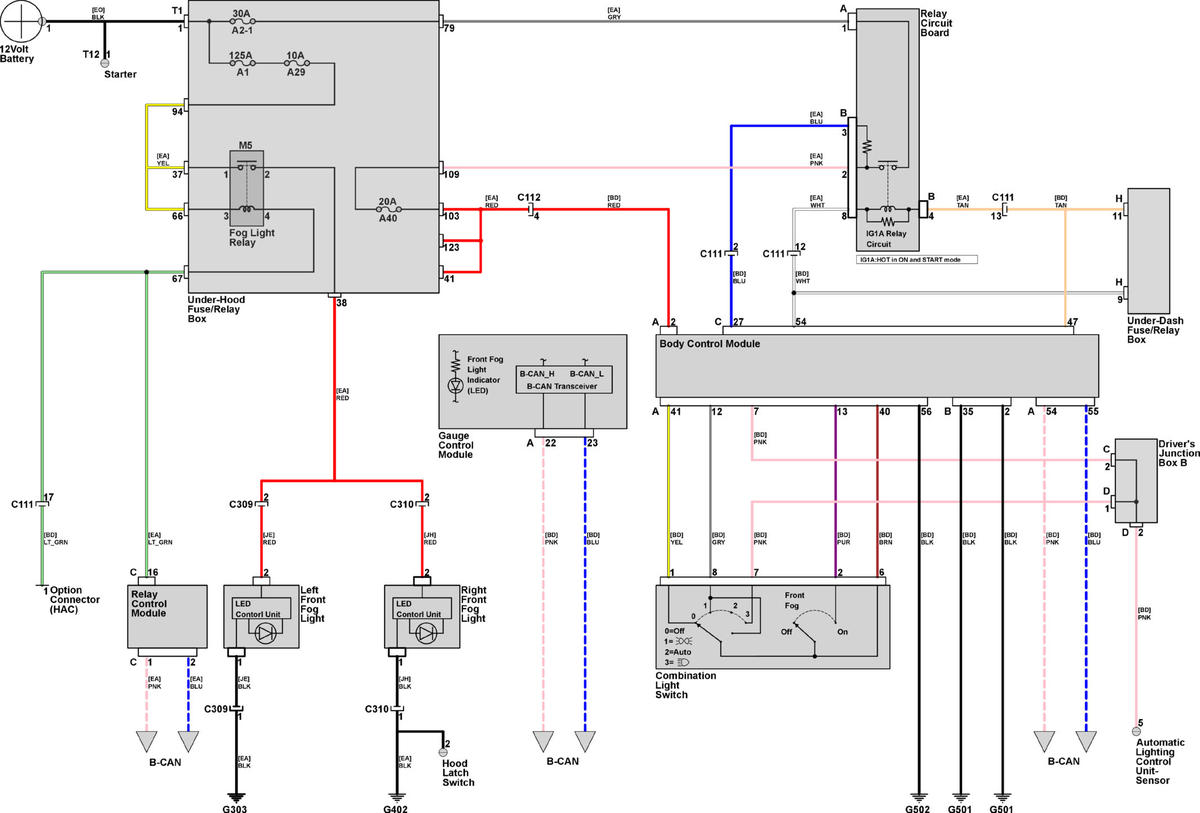

GHHW17090Courtesy of EWD
GHHW17088Courtesy of EWD
