F-Can Communication Line

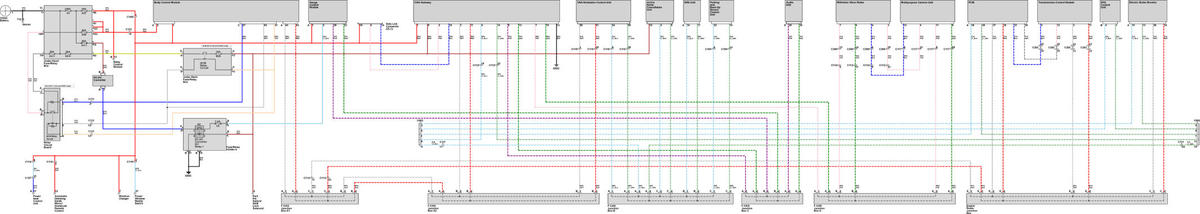

GHHW17093Courtesy of EWD

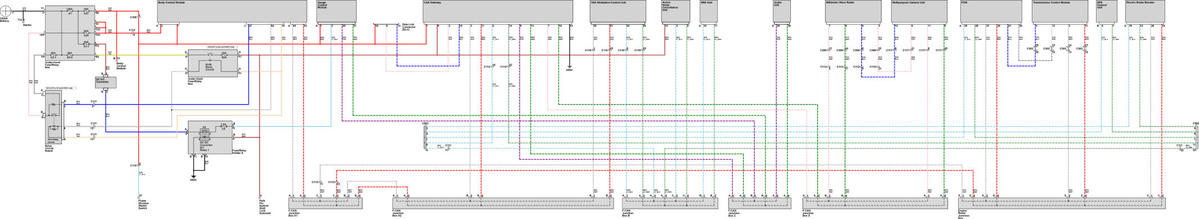

GHHW17094Courtesy of EWD

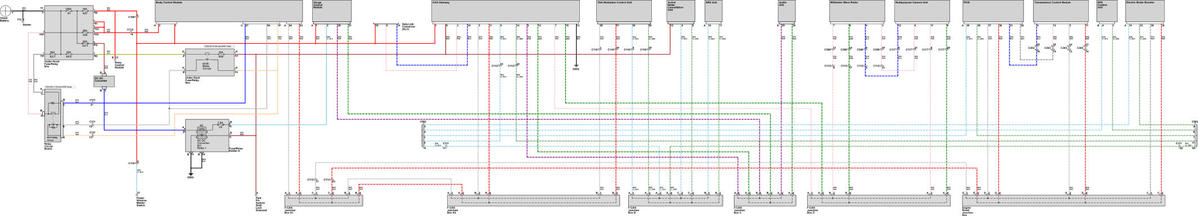

GHHW17095Courtesy of EWD

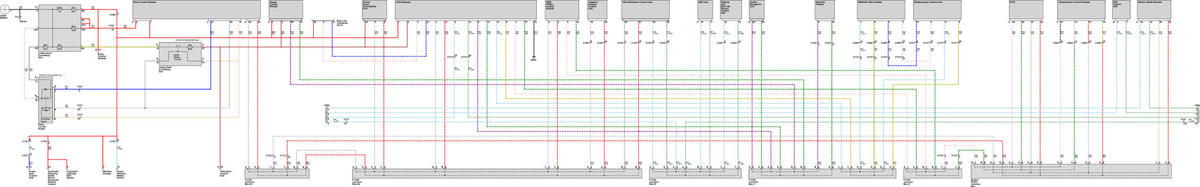

GHHW17096Courtesy of EWD

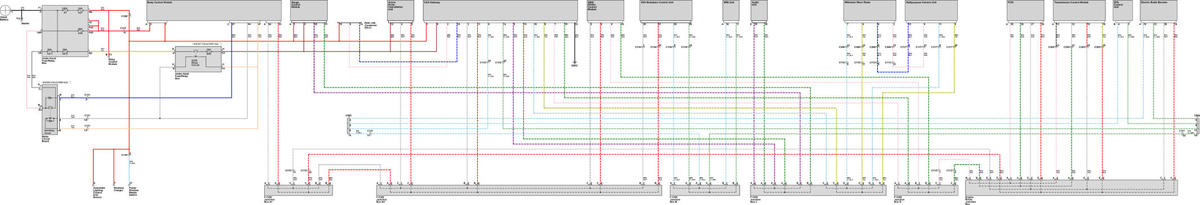

GHHW17097Courtesy of EWD
GHHW17095Courtesy of EWD
