Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Exterior Lighting

Exterior Lighting

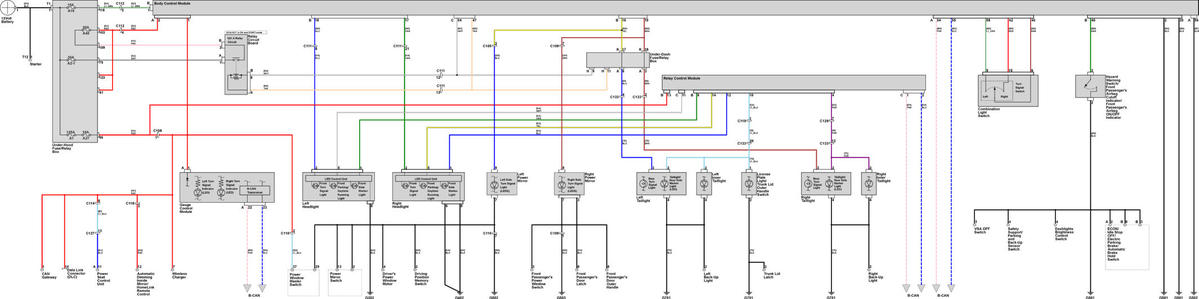

GHHW17164Courtesy of EWD

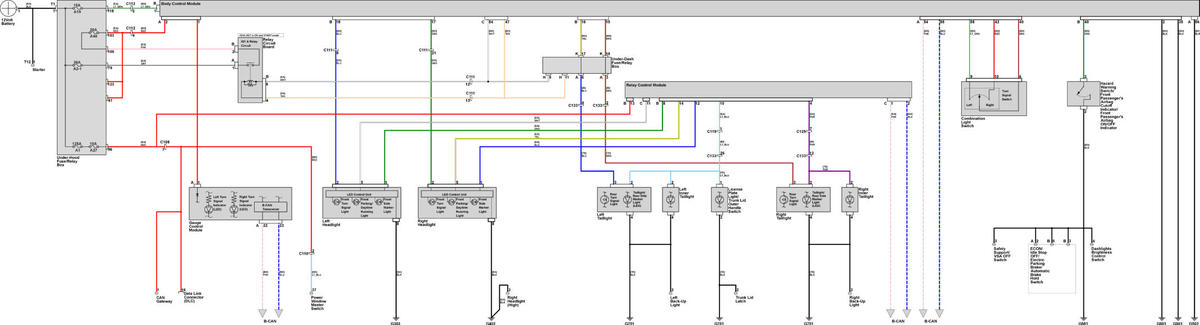

GHHW17165Courtesy of EWD

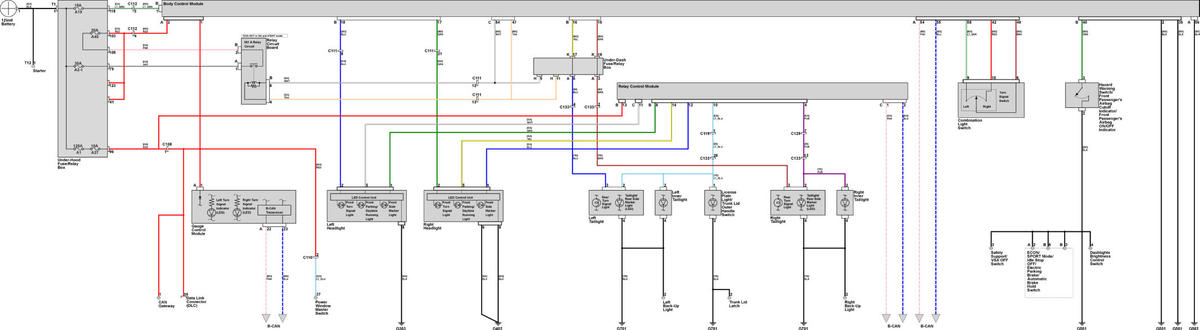

GHHW17166Courtesy of EWD

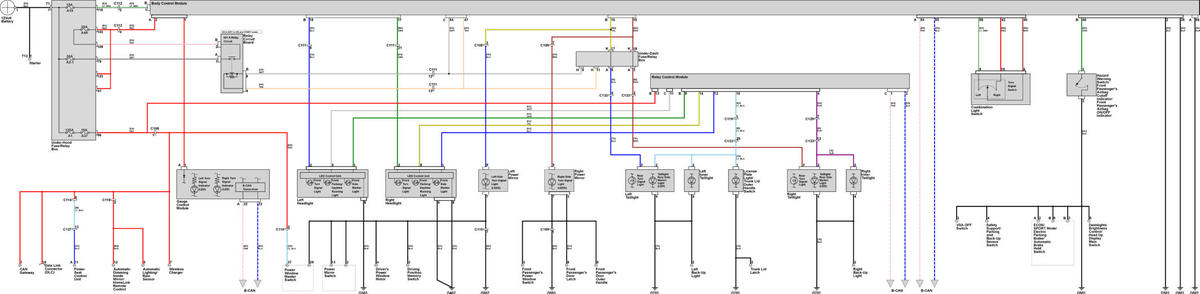

GHHW17167Courtesy of EWD

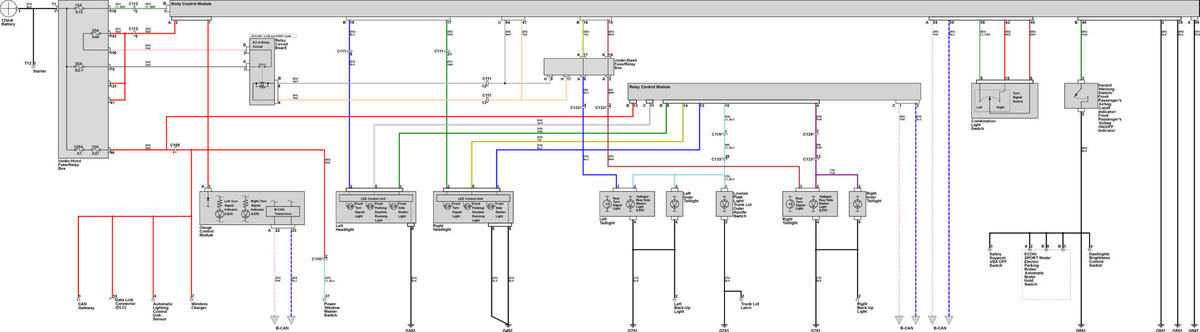

GHHW17168Courtesy of EWD
GHHW17169Courtesy of EWD
