Entry Light Control System

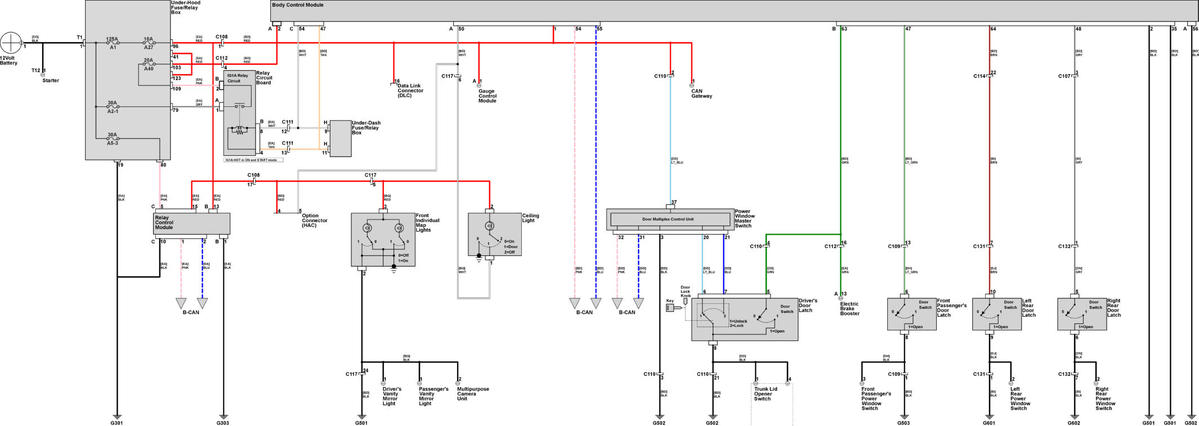

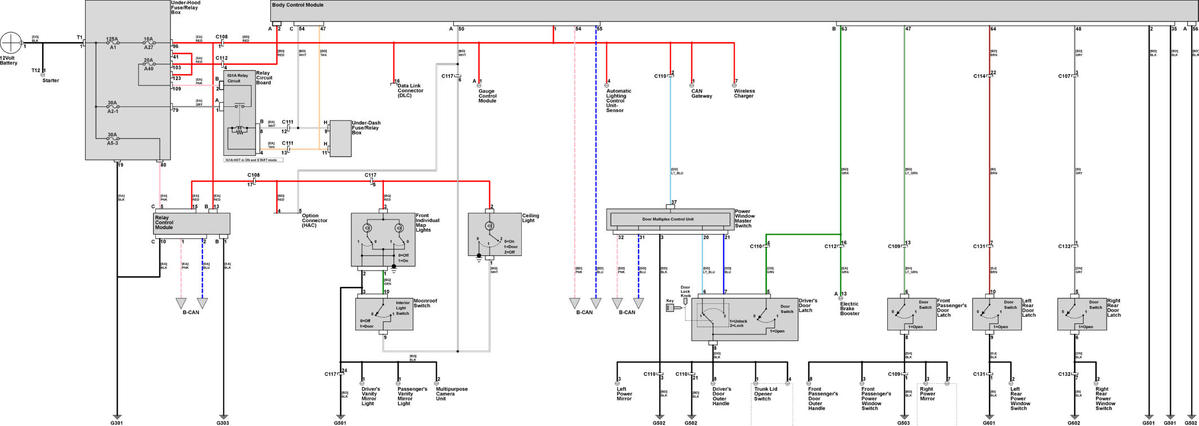

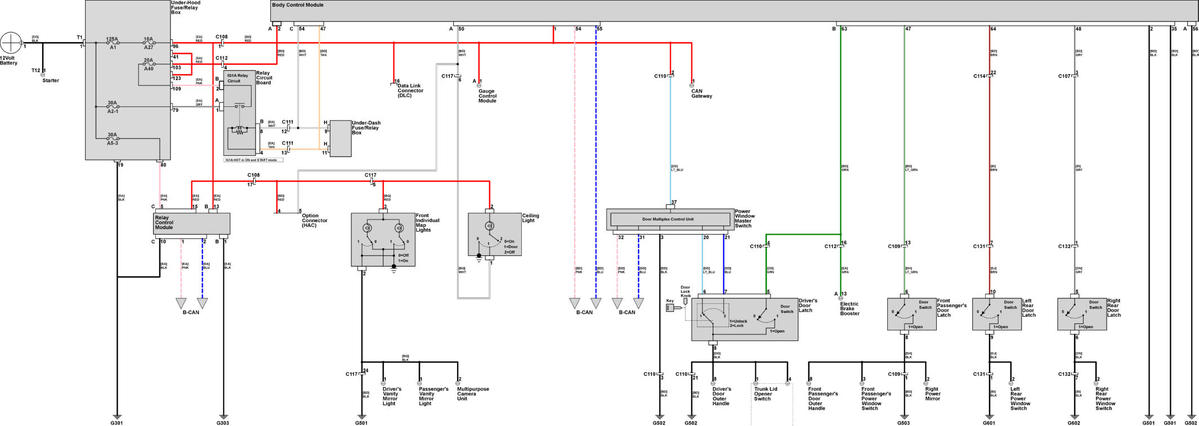

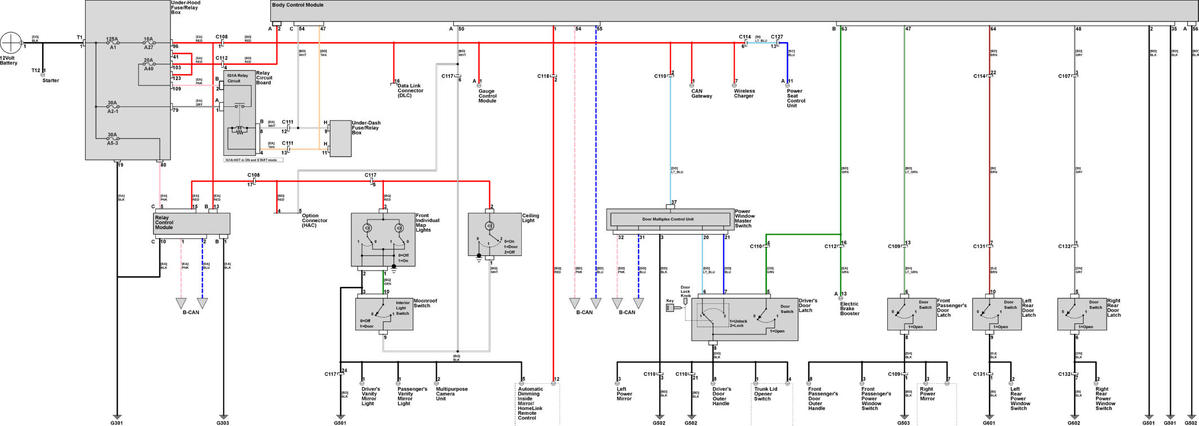

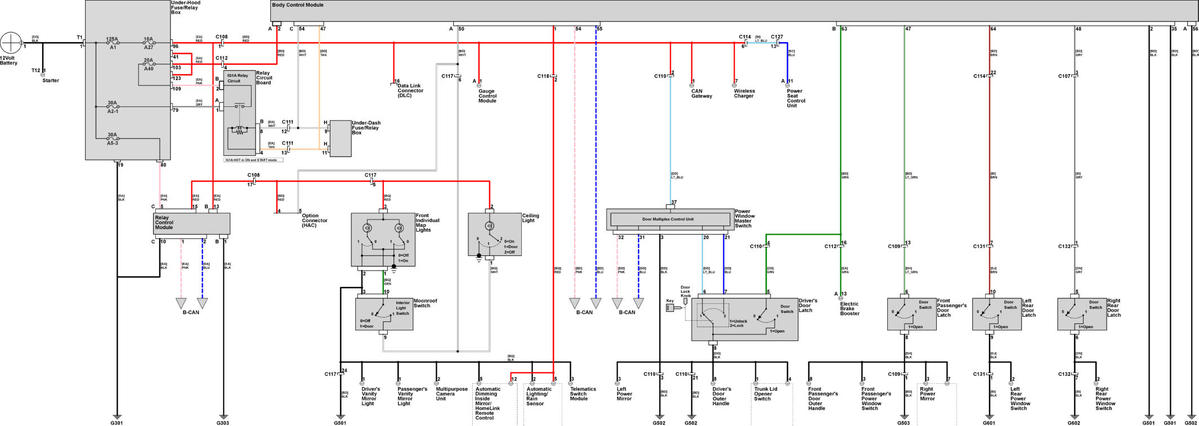

Entry Light Control System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
