Honda
>>
2021
>>
Accord Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Energy Management System

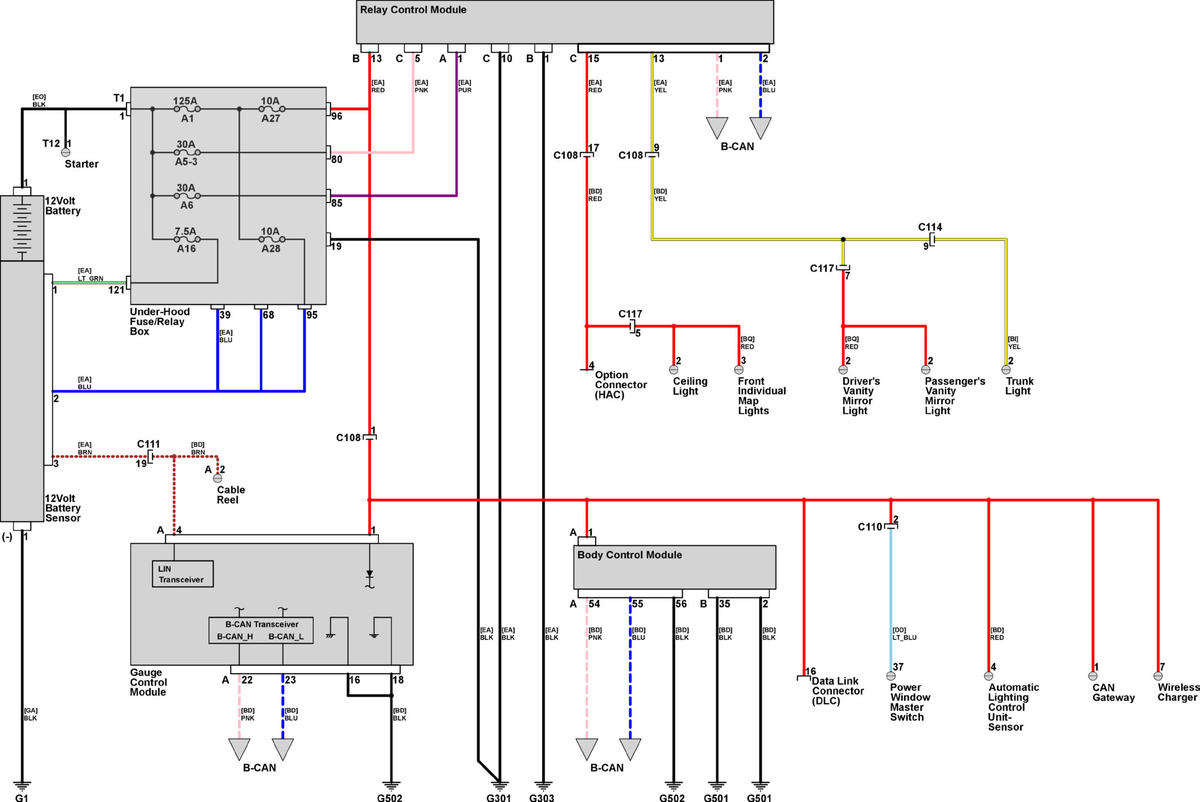

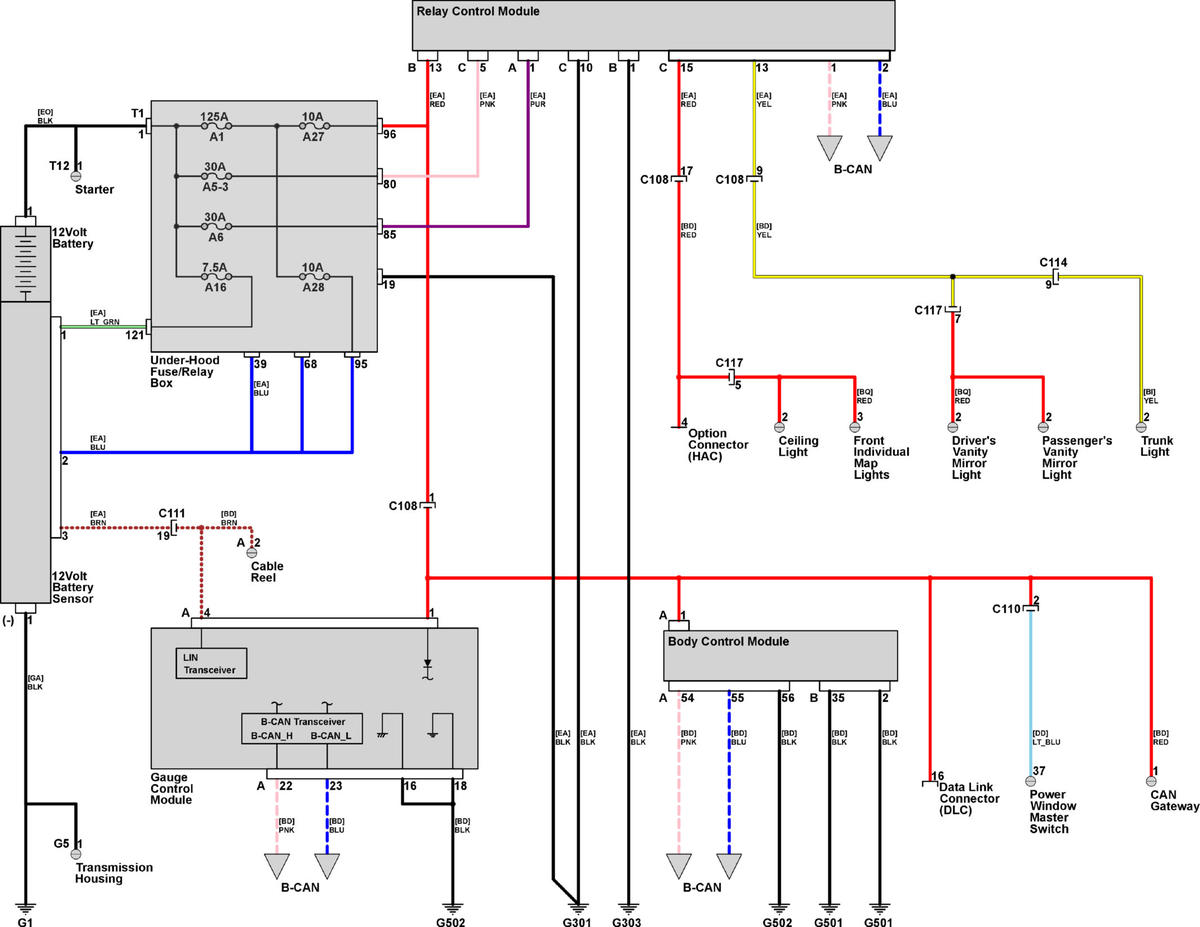

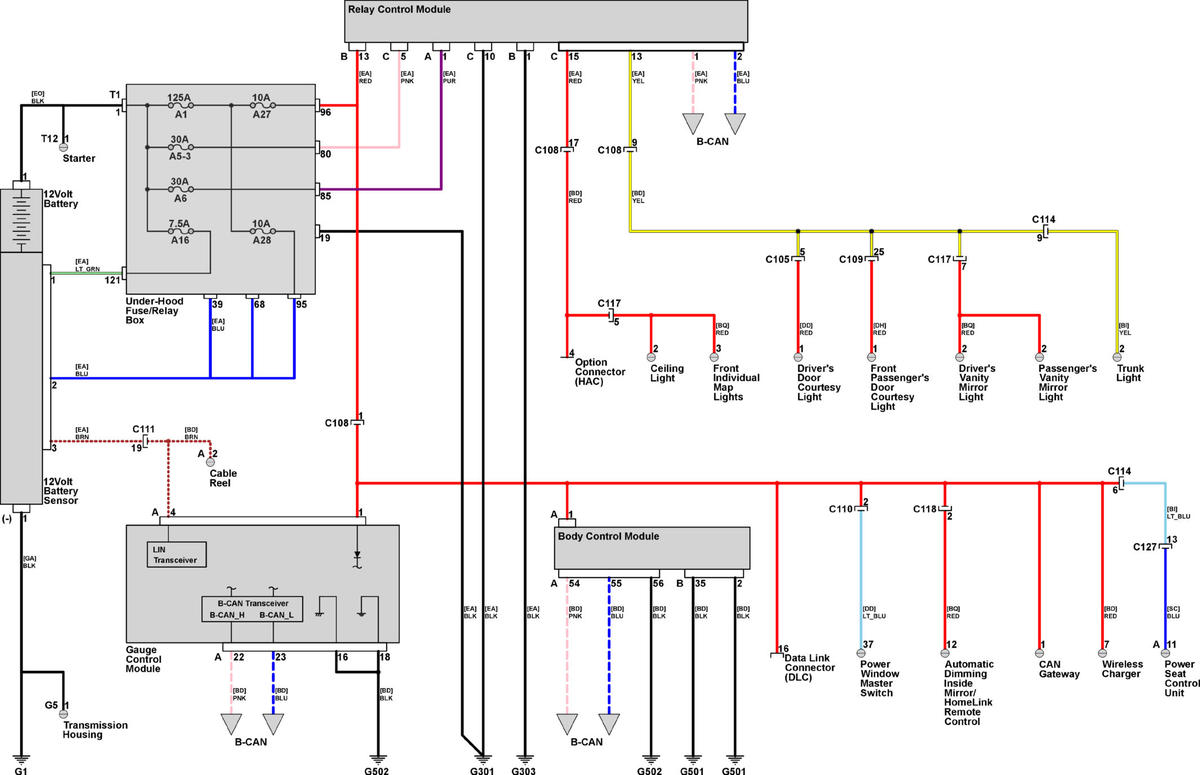

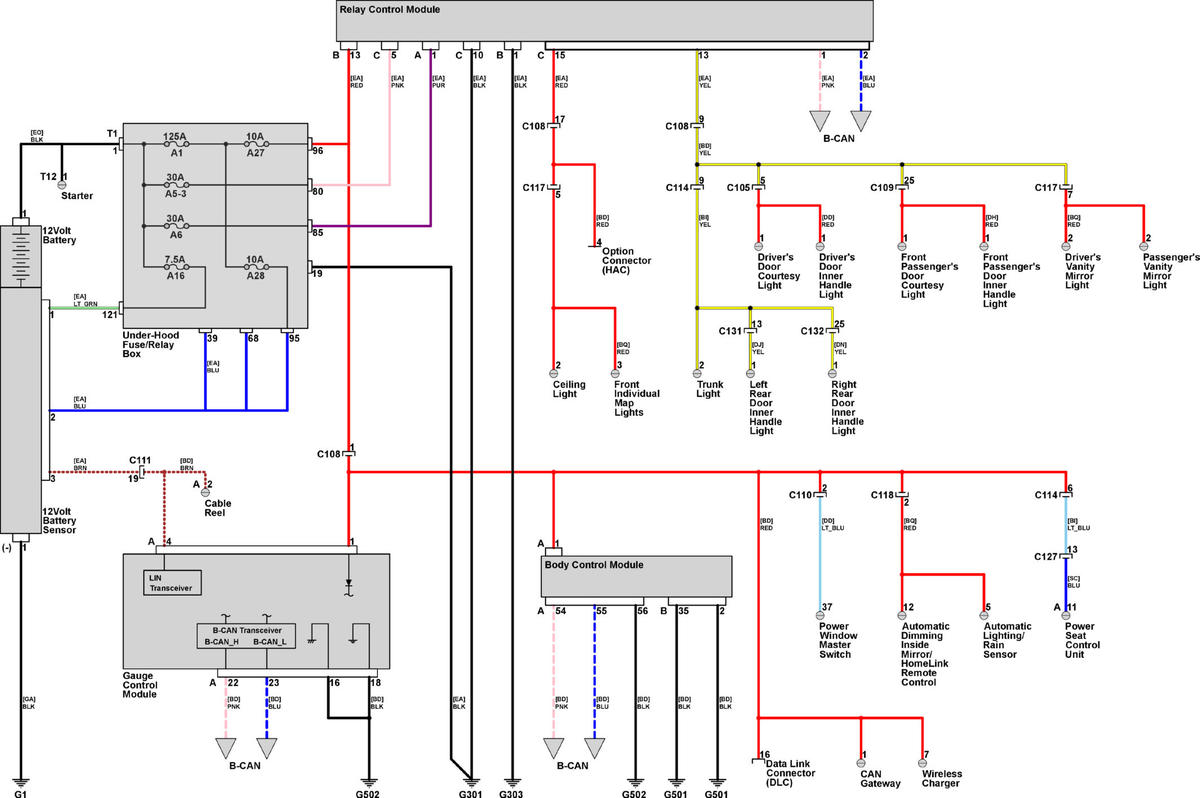

Energy Management System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
