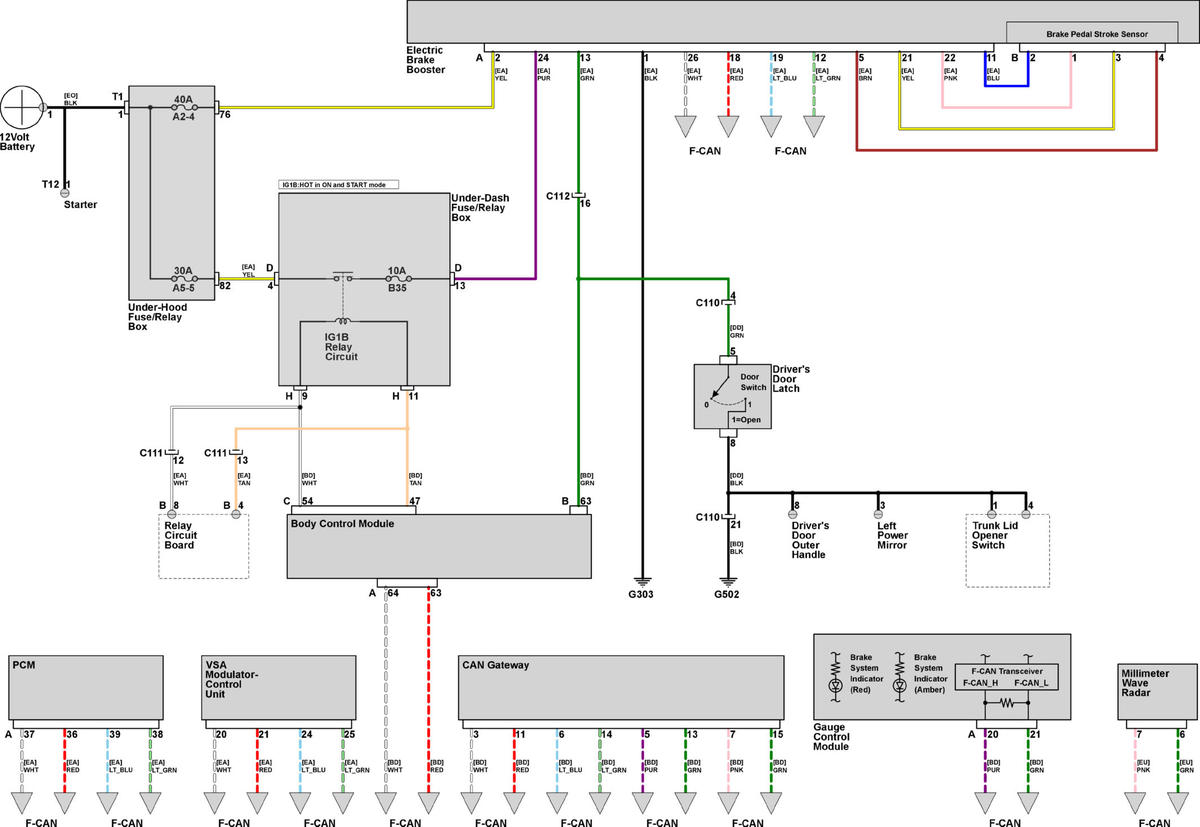

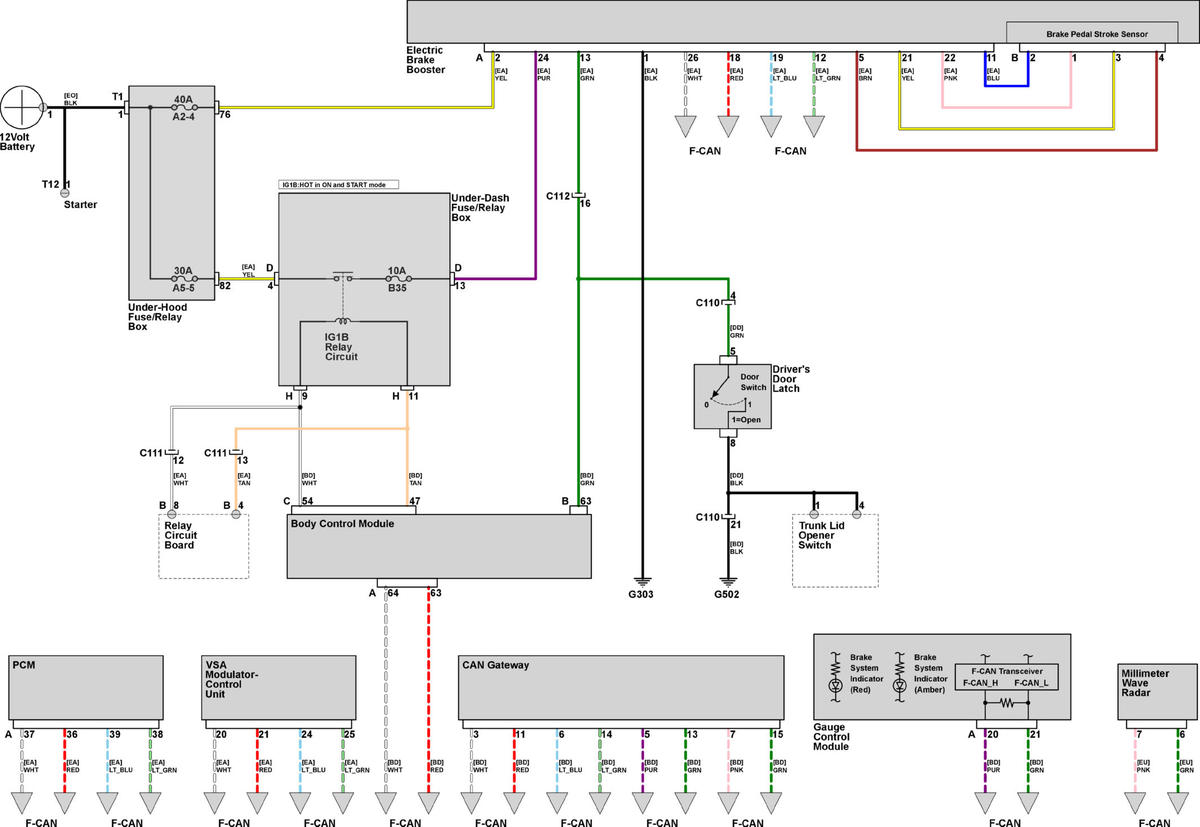

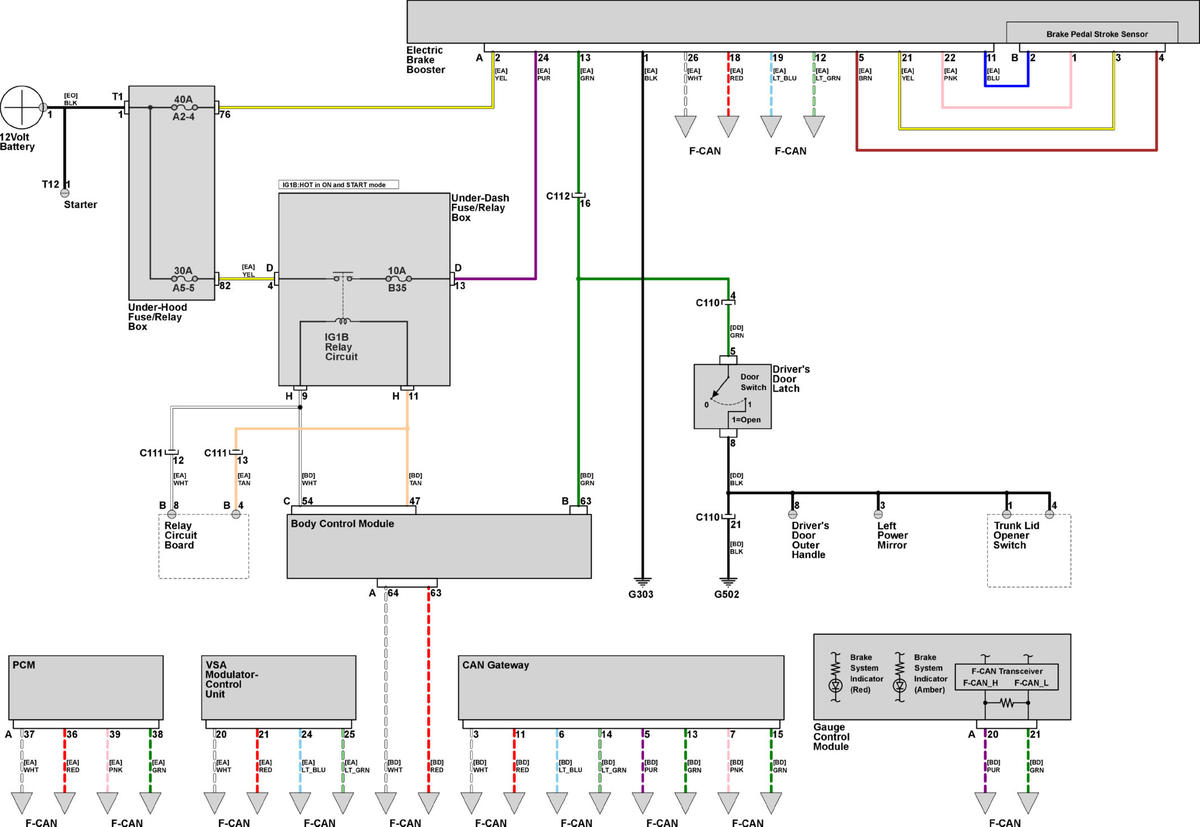

Electric Brake Booster System
Electric Brake Booster System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
Courtesy of EWDCourtesy of EWD
Courtesy of EWD
