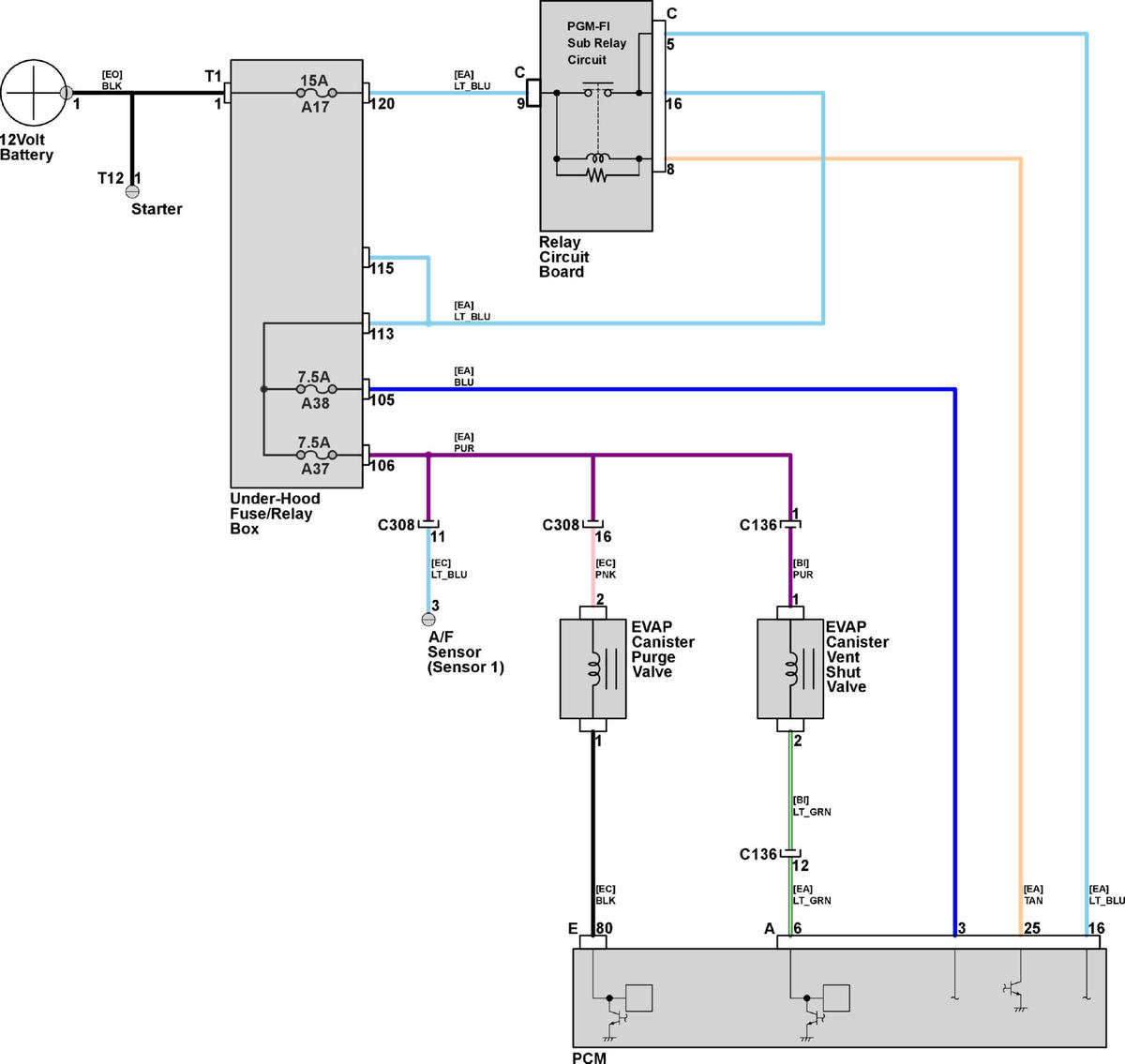

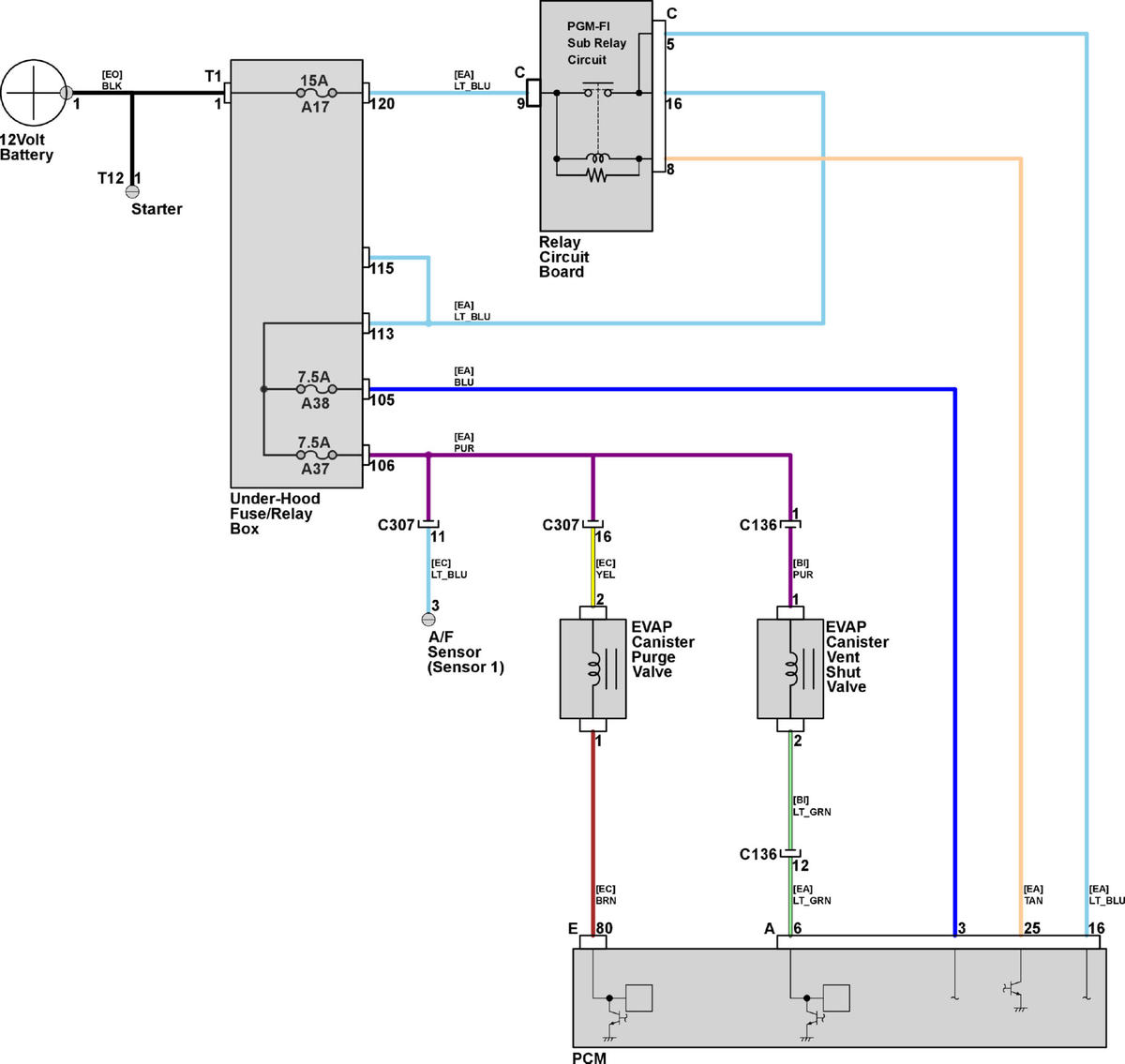

EVAP System
EVAP System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
