Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> ETCS (Electronic Throttle Control System)

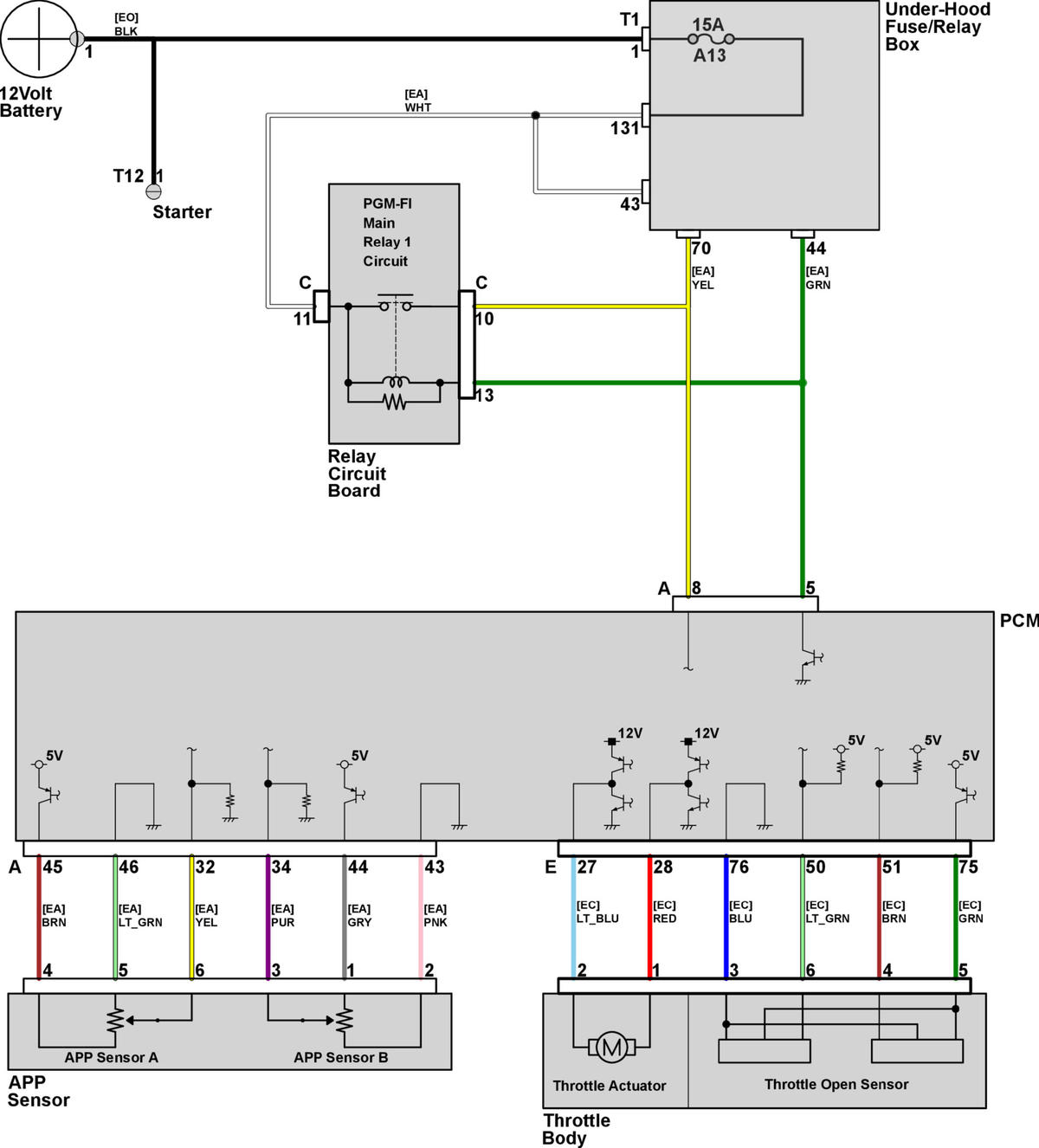

ETCS (Electronic Throttle Control System)

GHHW17074

Courtesy of EWD

GHHW17074

Courtesy of EWD

GHHW17074

Courtesy of EWD

GHHW17075

Courtesy of EWD

GHHW17075

Courtesy of EWD

GHHW17074

Courtesy of EWD
