Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> DPMS

OEM Wiring Diagrams (Except Hybrid): DPMS

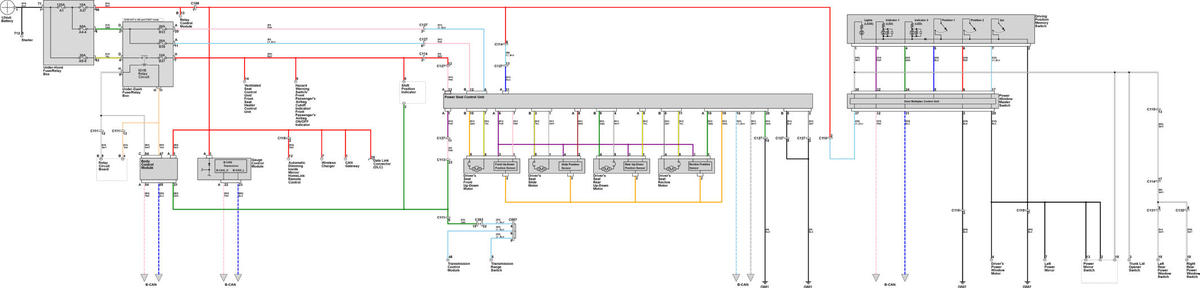

GHHW17055Courtesy of EWD

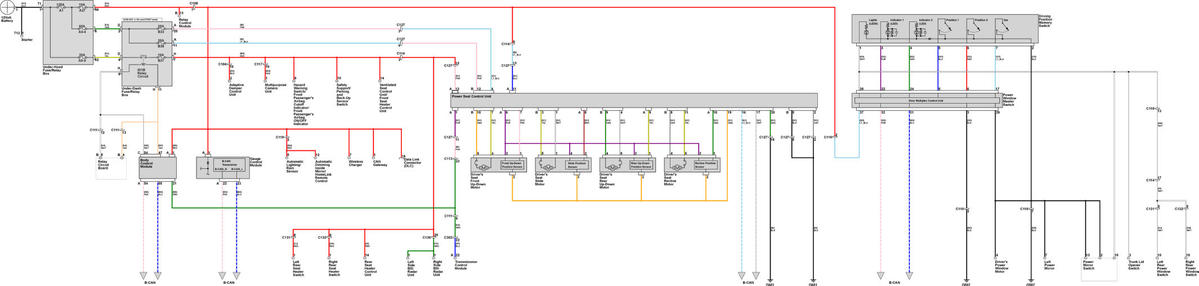

GHHW17056Courtesy of EWD
