Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Climate Control

Climate Control

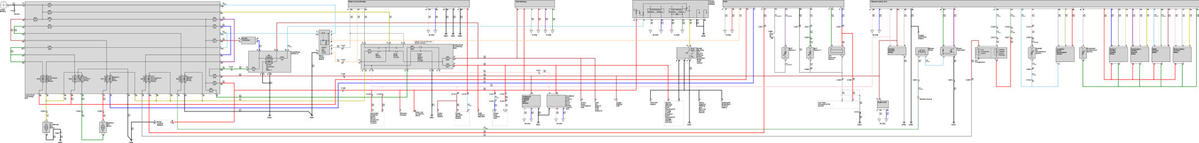

GHHW17030Courtesy of EWD
GHHW17031Courtesy of EWD

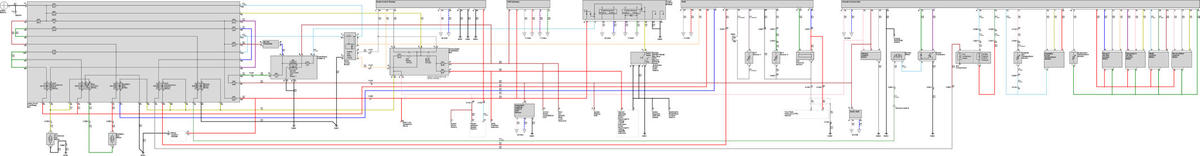

GHHW17032Courtesy of EWD

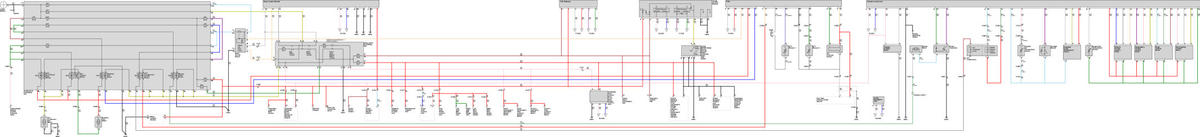

GHHW17033Courtesy of EWD

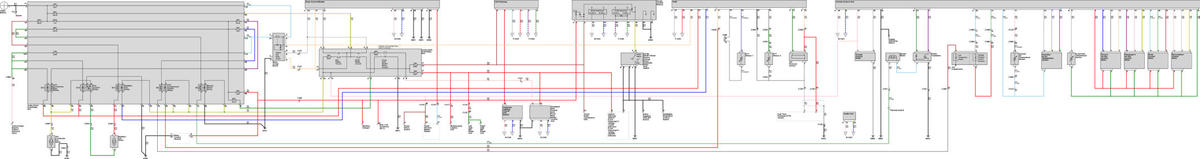

GHHW17034Courtesy of EWD

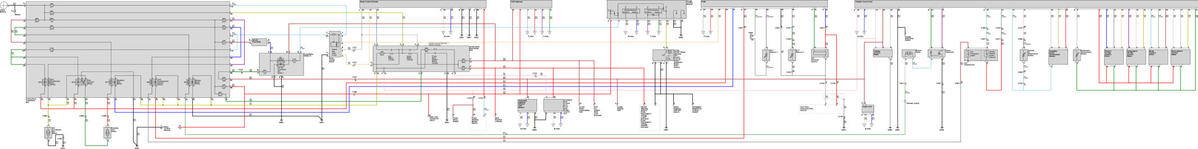

GHHW17035Courtesy of EWD
