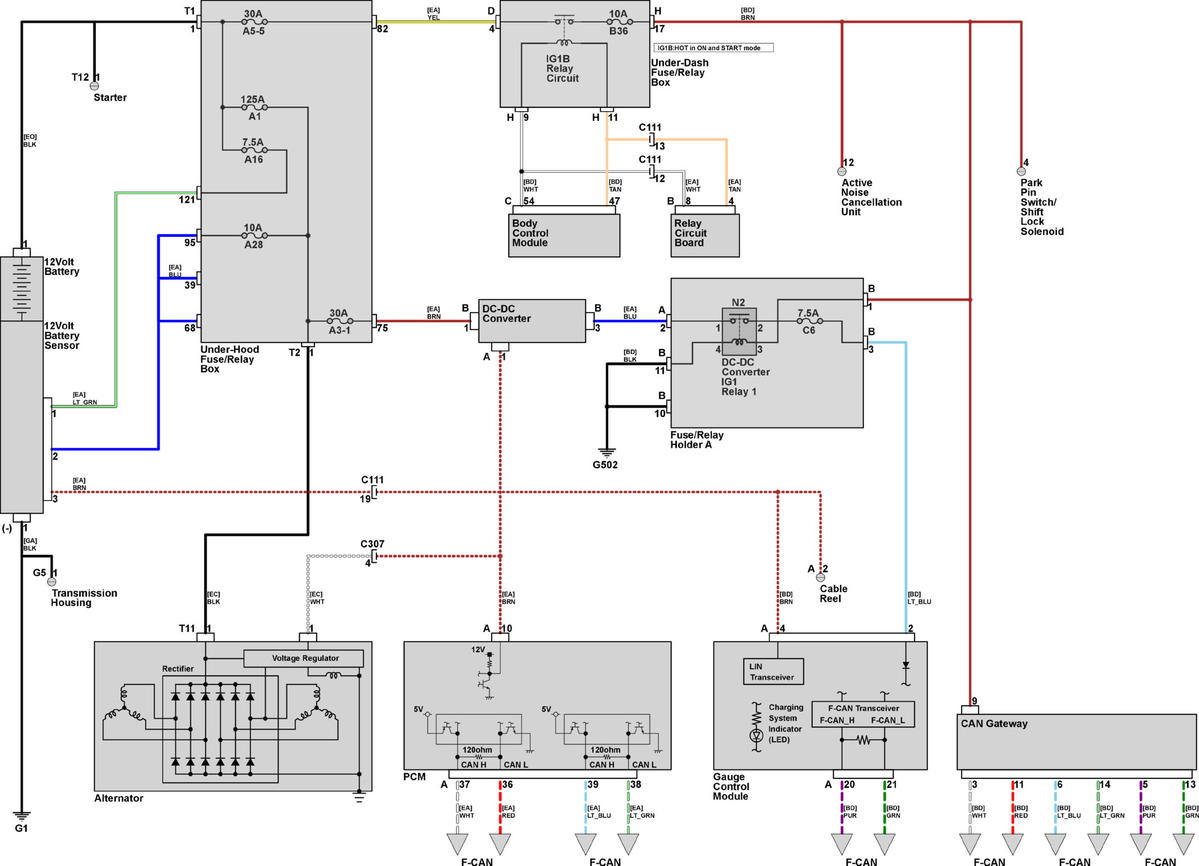

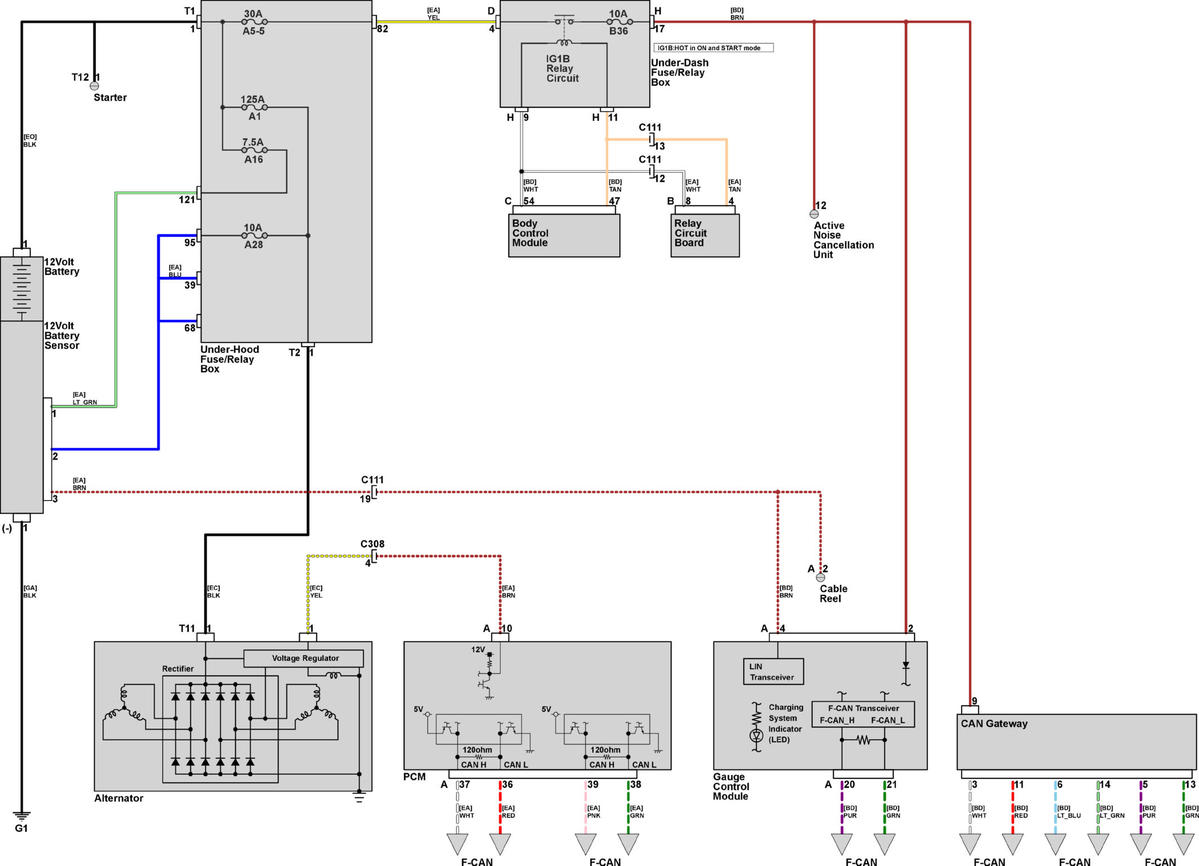

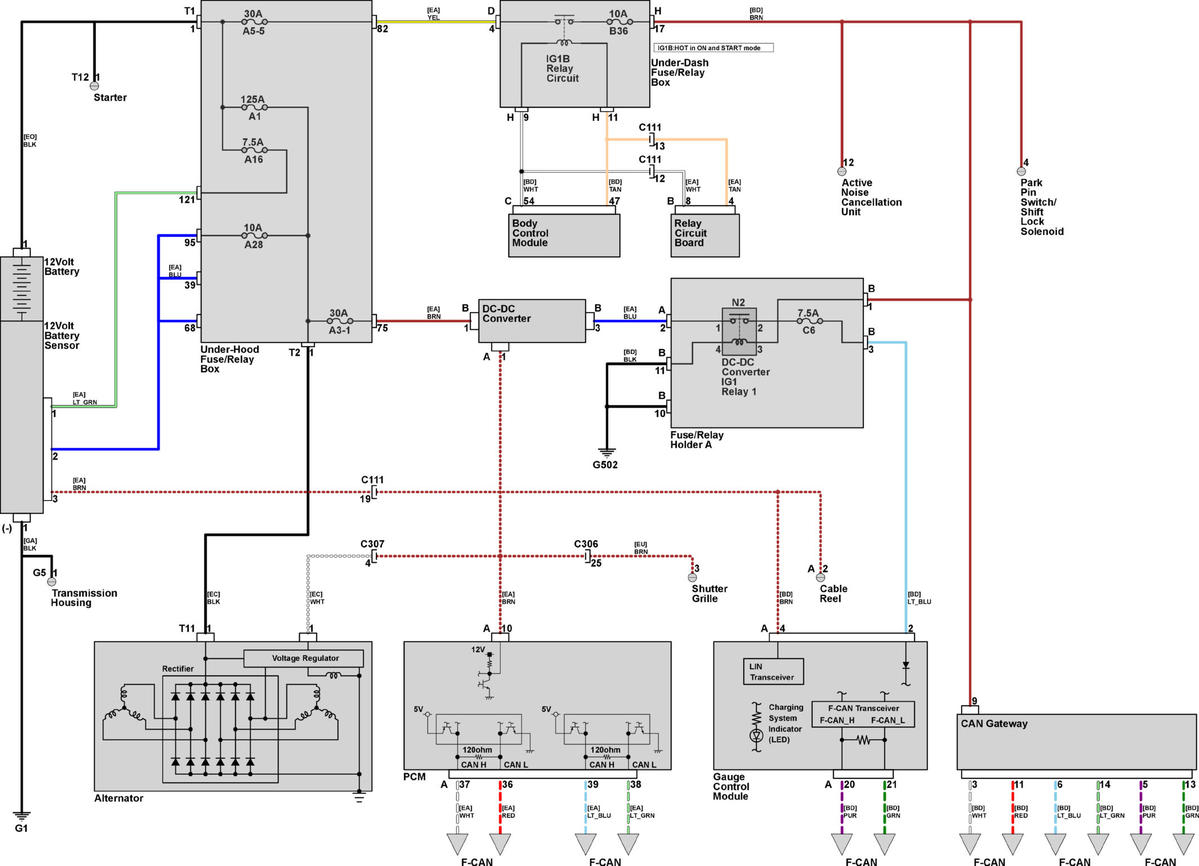

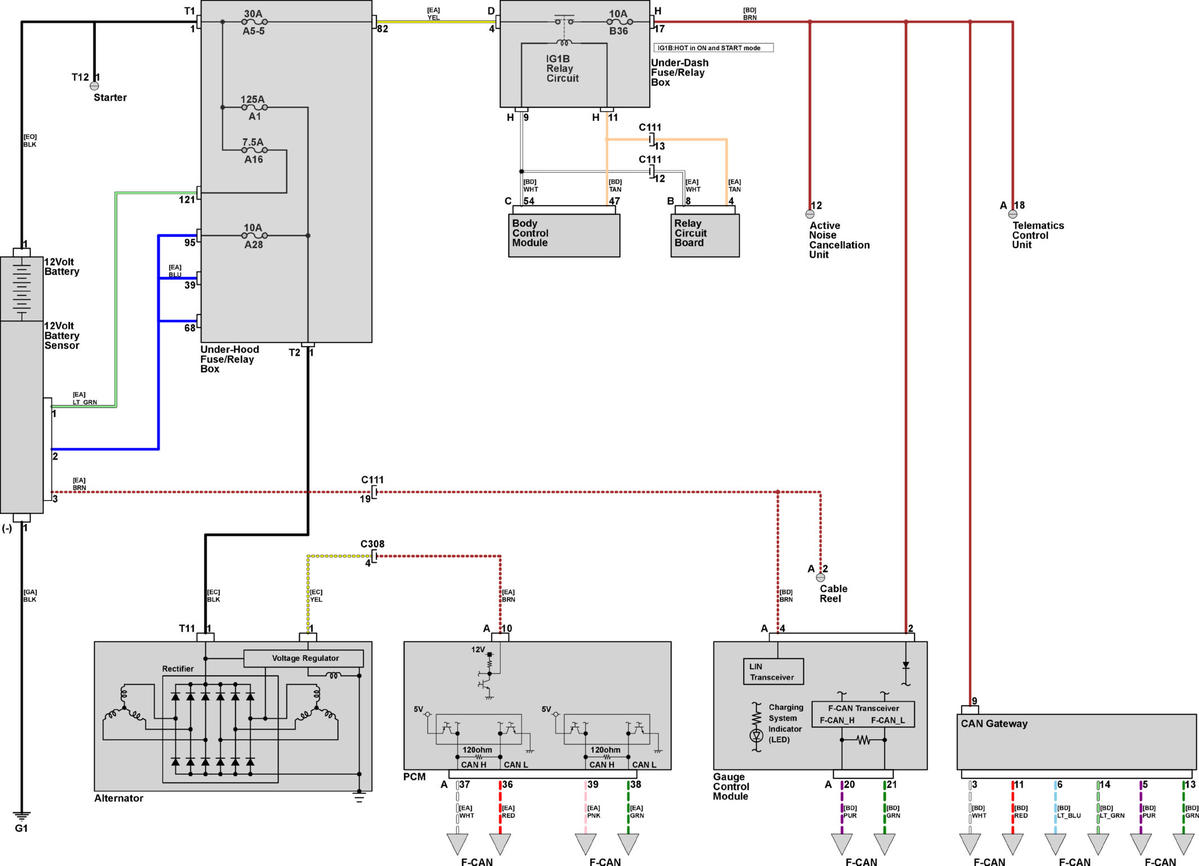

Charging System
Charging System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
