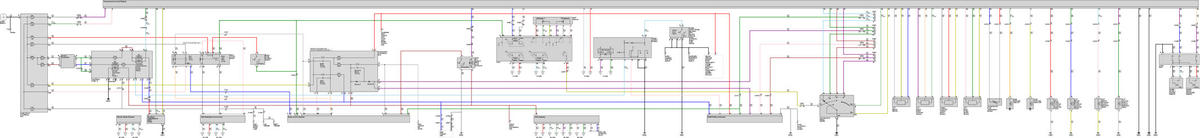

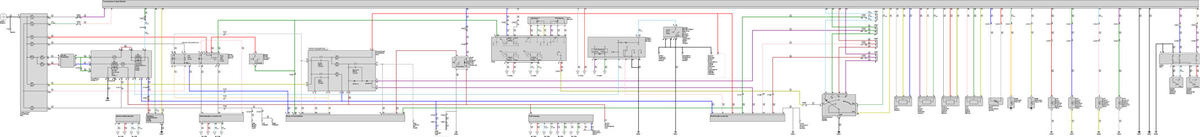

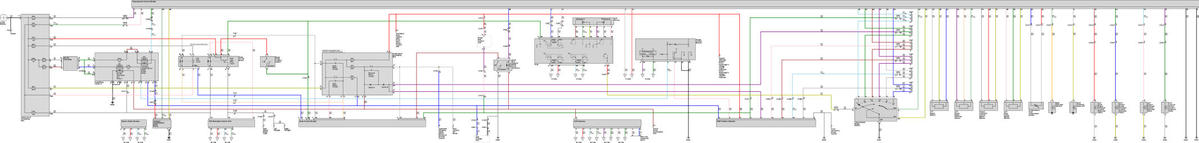

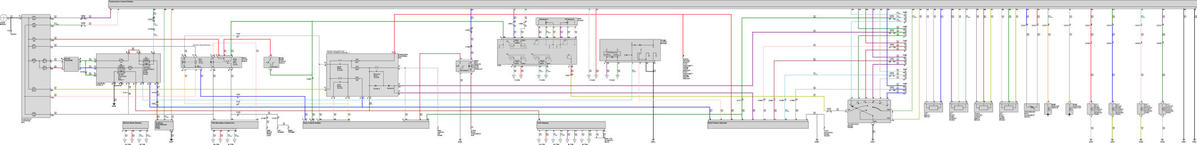

CVT Control System
CVT Control System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
