Brake Lights

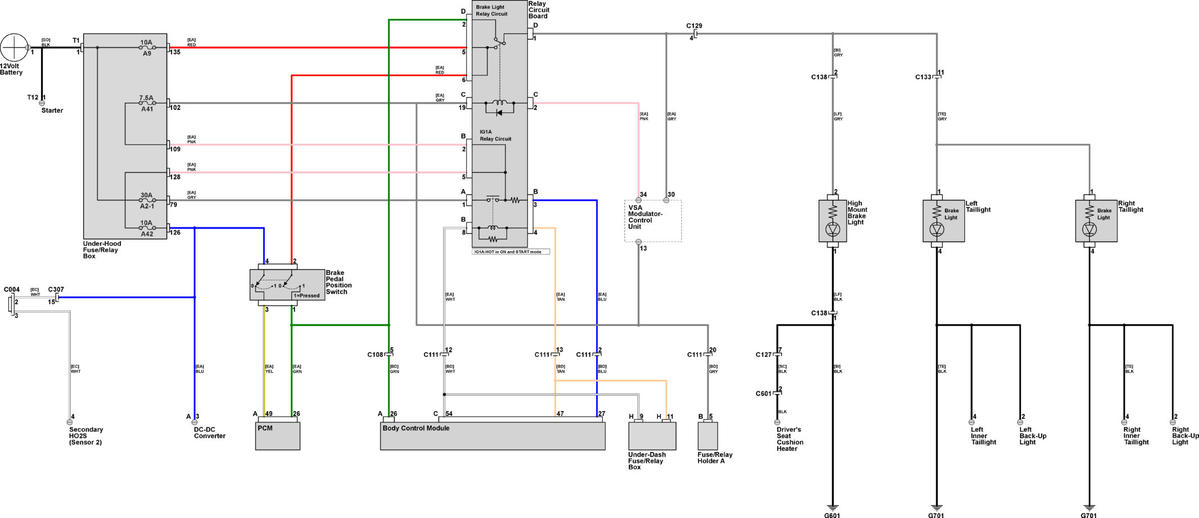

GHHW17003Courtesy of EWD
GHHW17004Courtesy of EWD

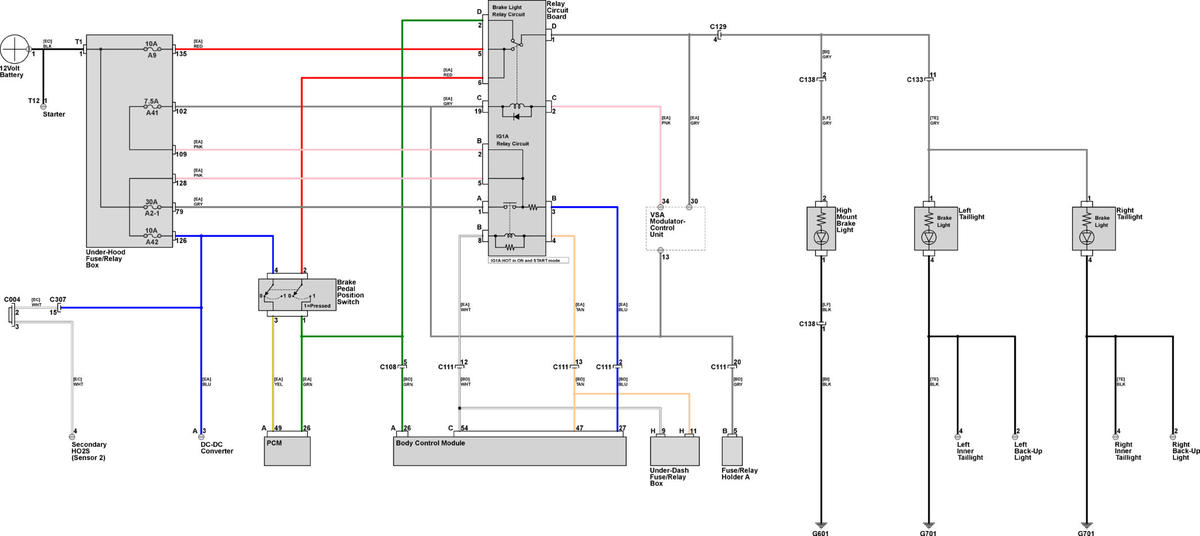

GHHW17005Courtesy of EWD

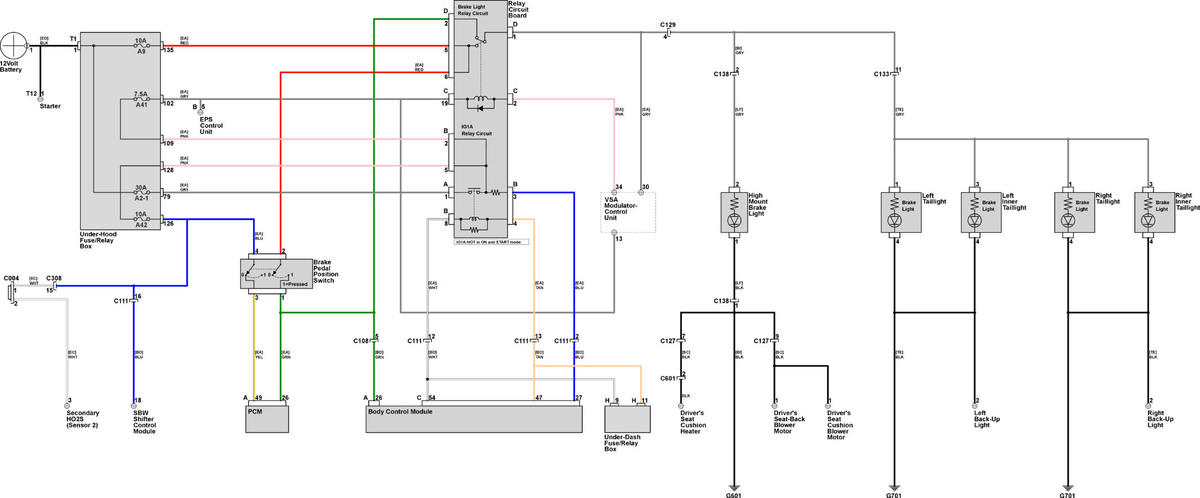

GHHW17006Courtesy of EWD

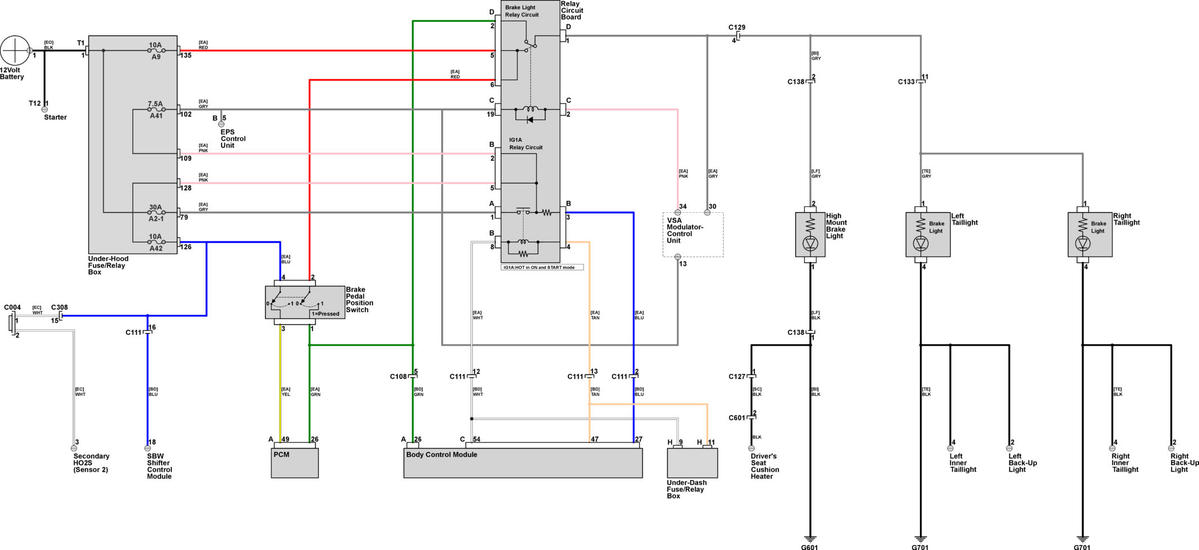

GHHW17007Courtesy of EWD
GHHW17008Courtesy of EWD
