Blind Spot Information System/Cross Traffic Monitor

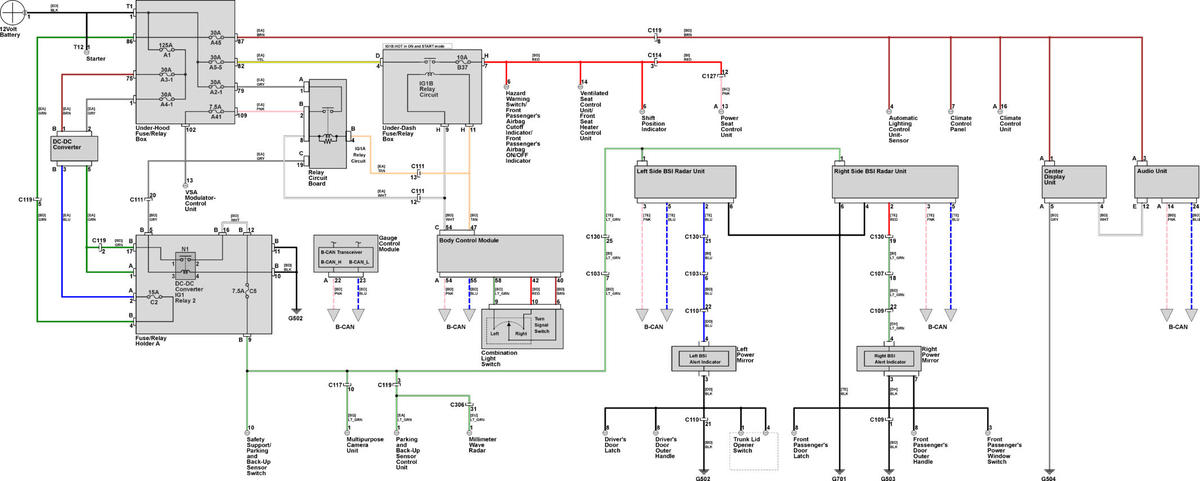

GHHW17013Courtesy of EWD

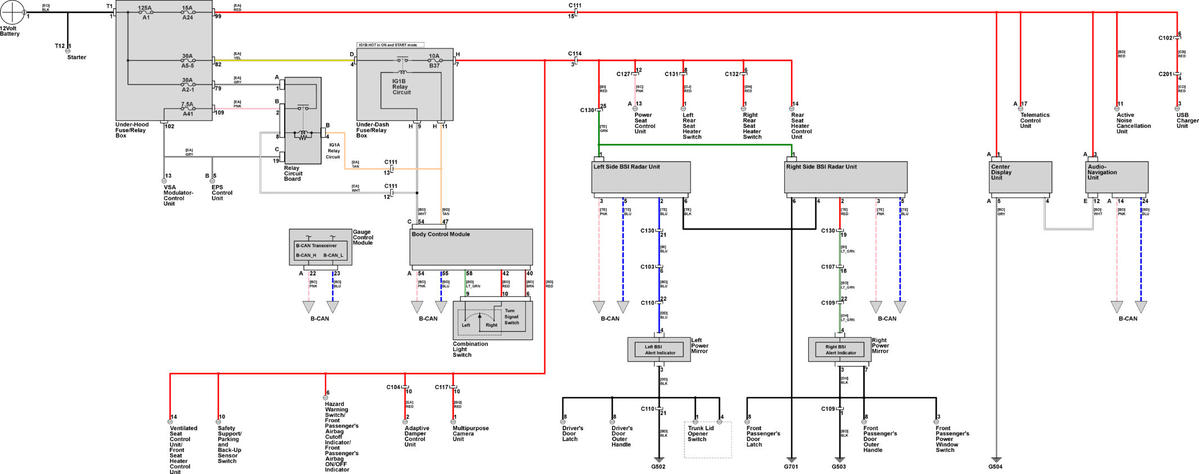

GHHW17014Courtesy of EWD

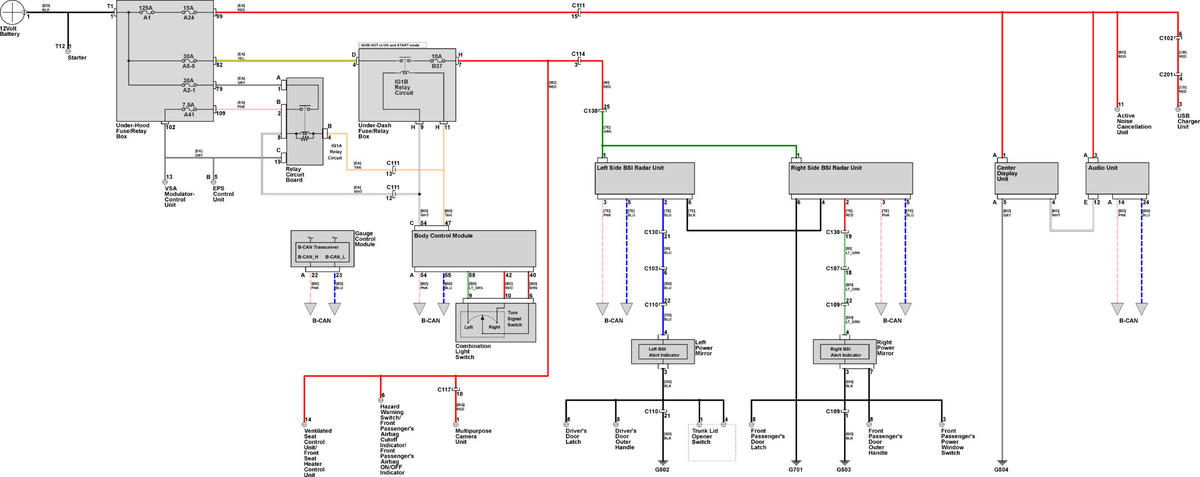

GHHW17015Courtesy of EWD
