Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Back-Up Lights

Back-Up Lights

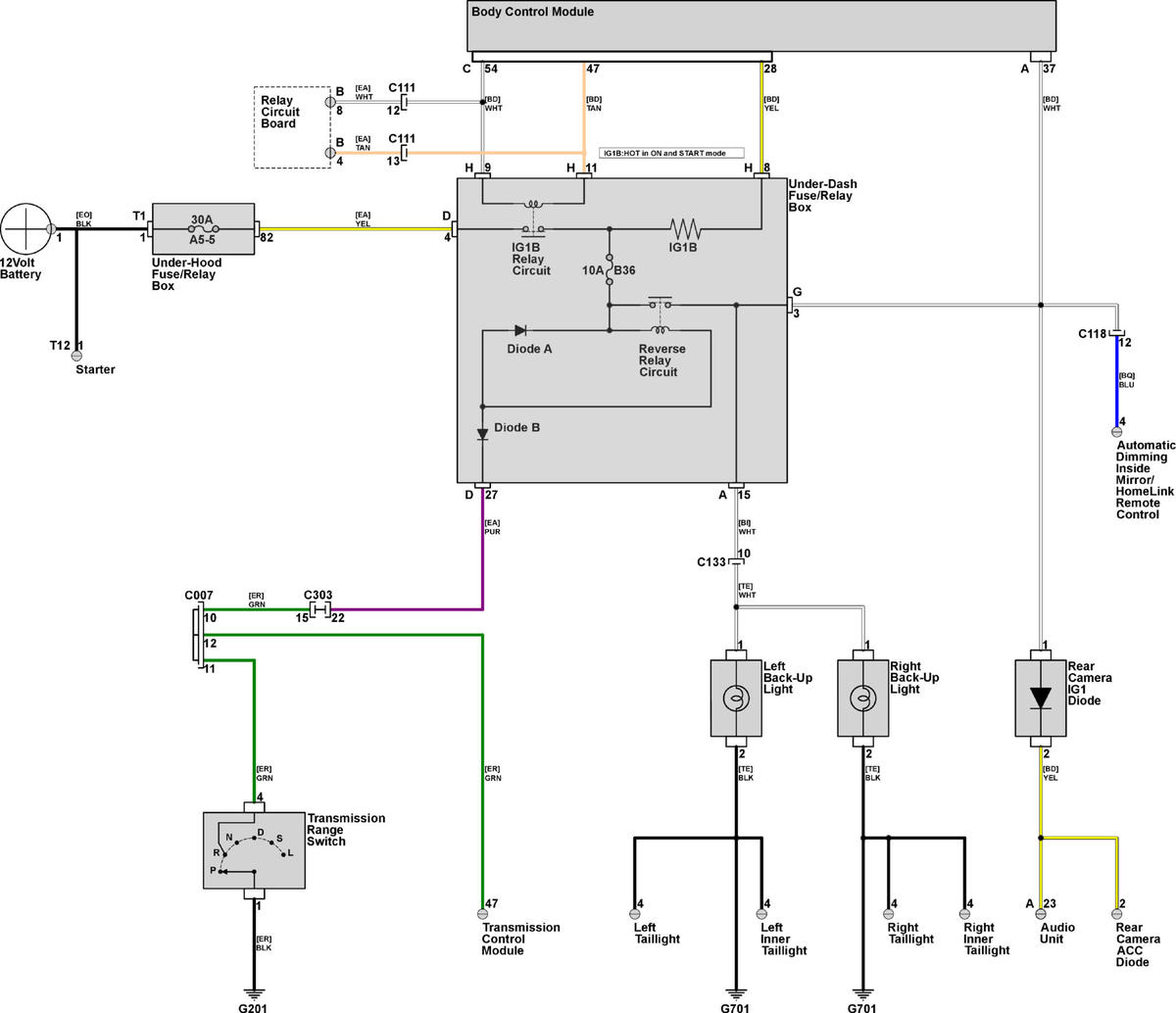

GHHW16998Courtesy of EWD
GHHW16999Courtesy of EWD

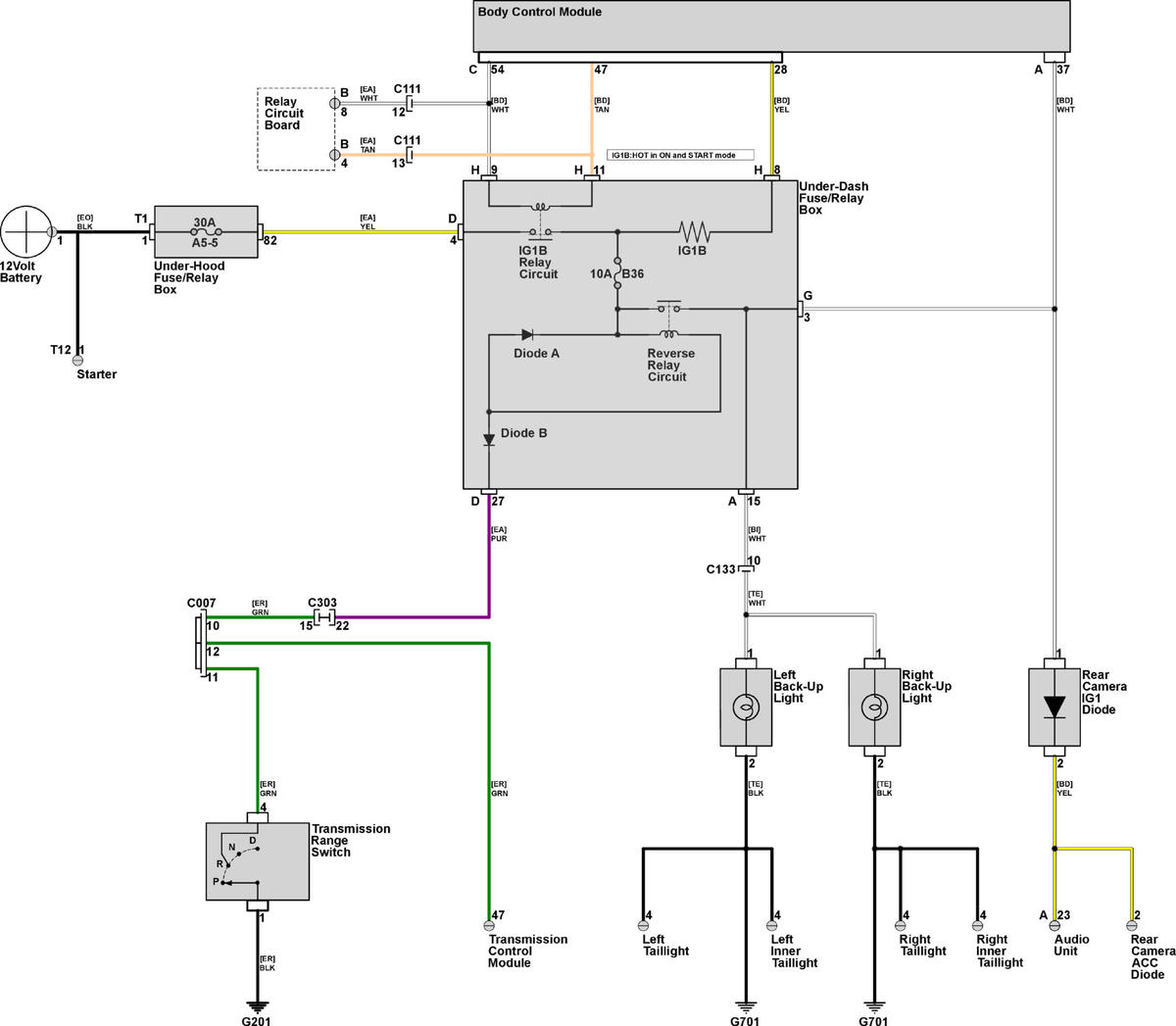

GHHW17000Courtesy of EWD

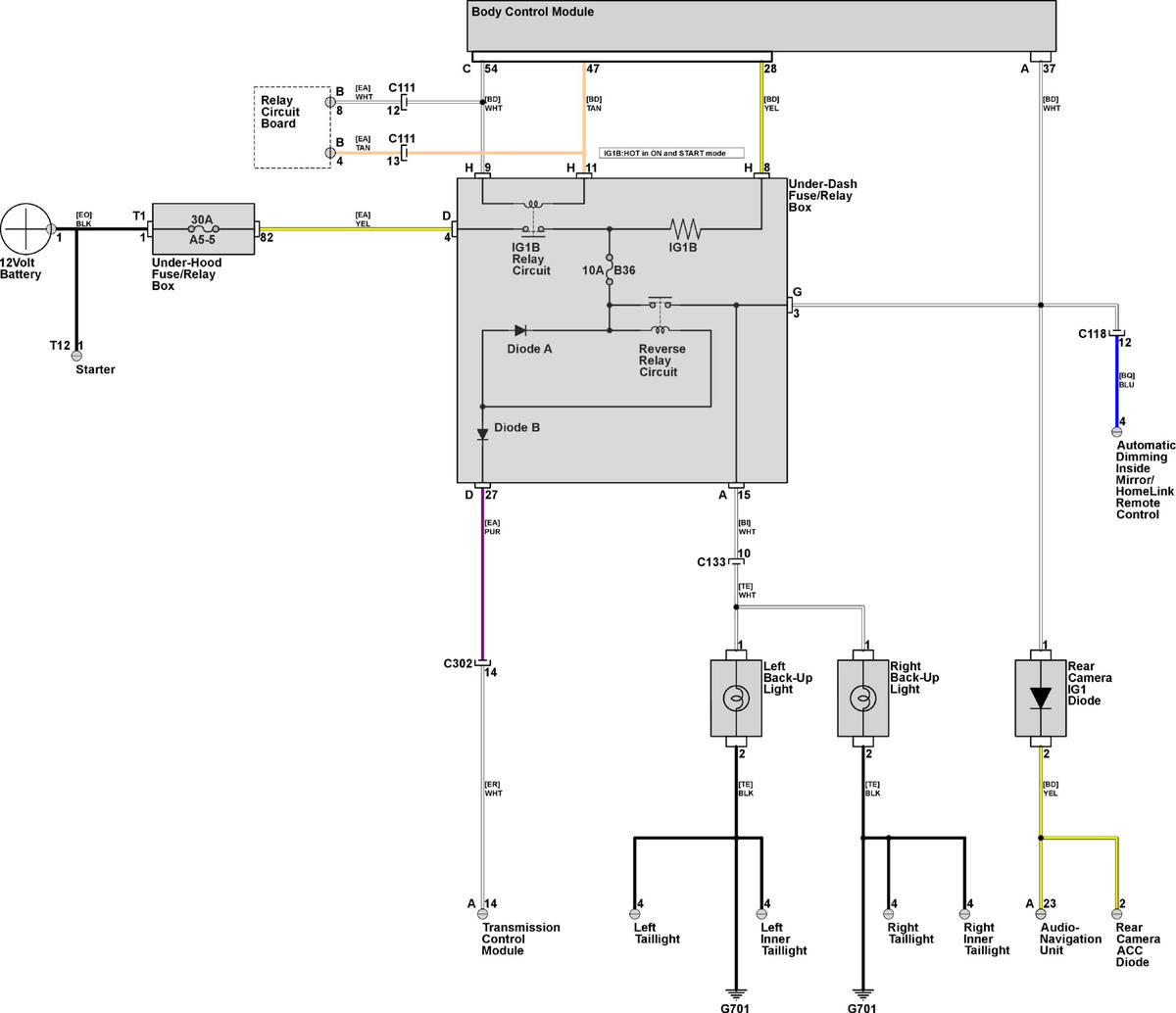

GHHW17001Courtesy of EWD

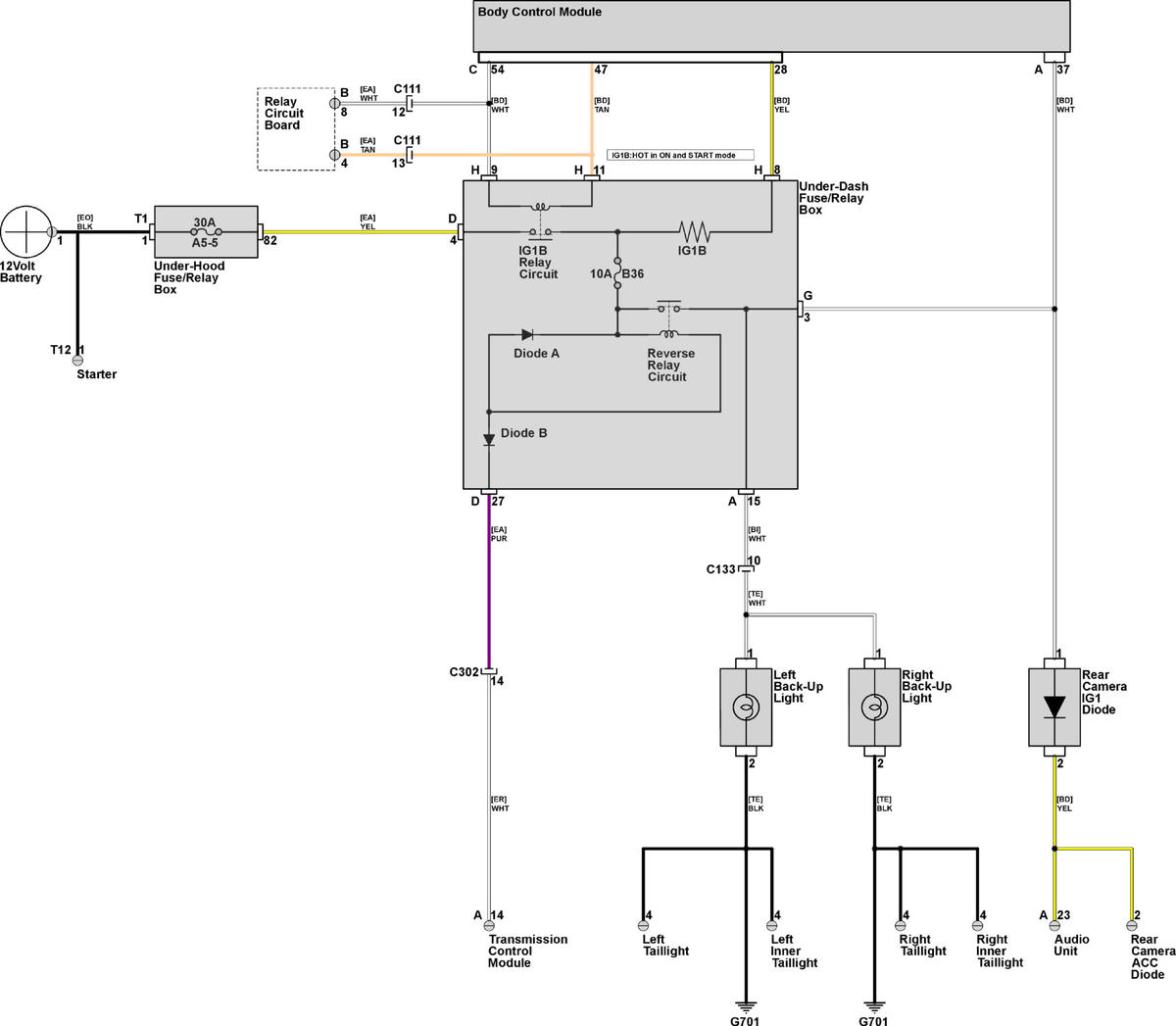

GHHW17002Courtesy of EWD
GHHW17000Courtesy of EWD
