B-Can Communication Line

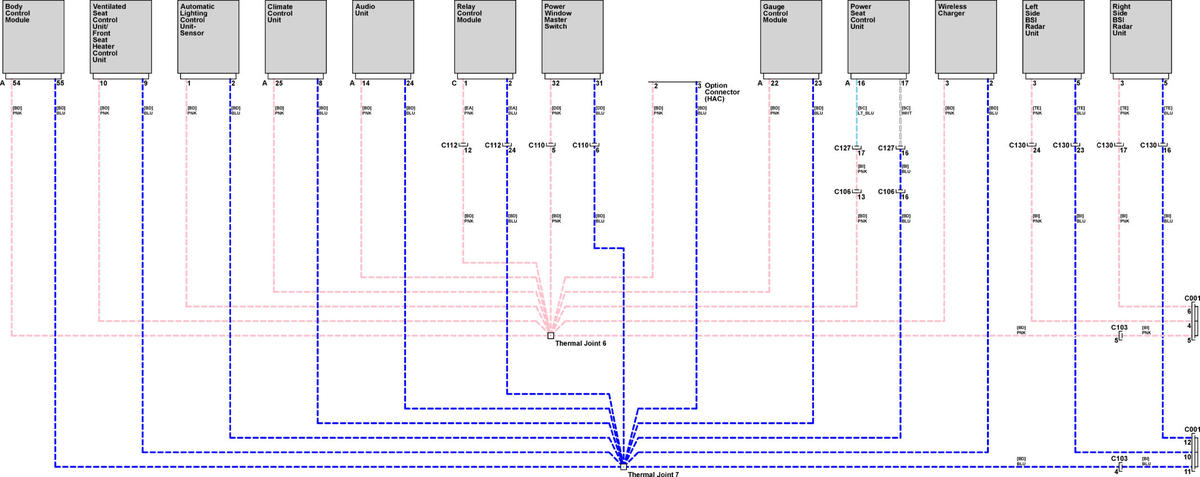

GHHW17016Courtesy of EWD

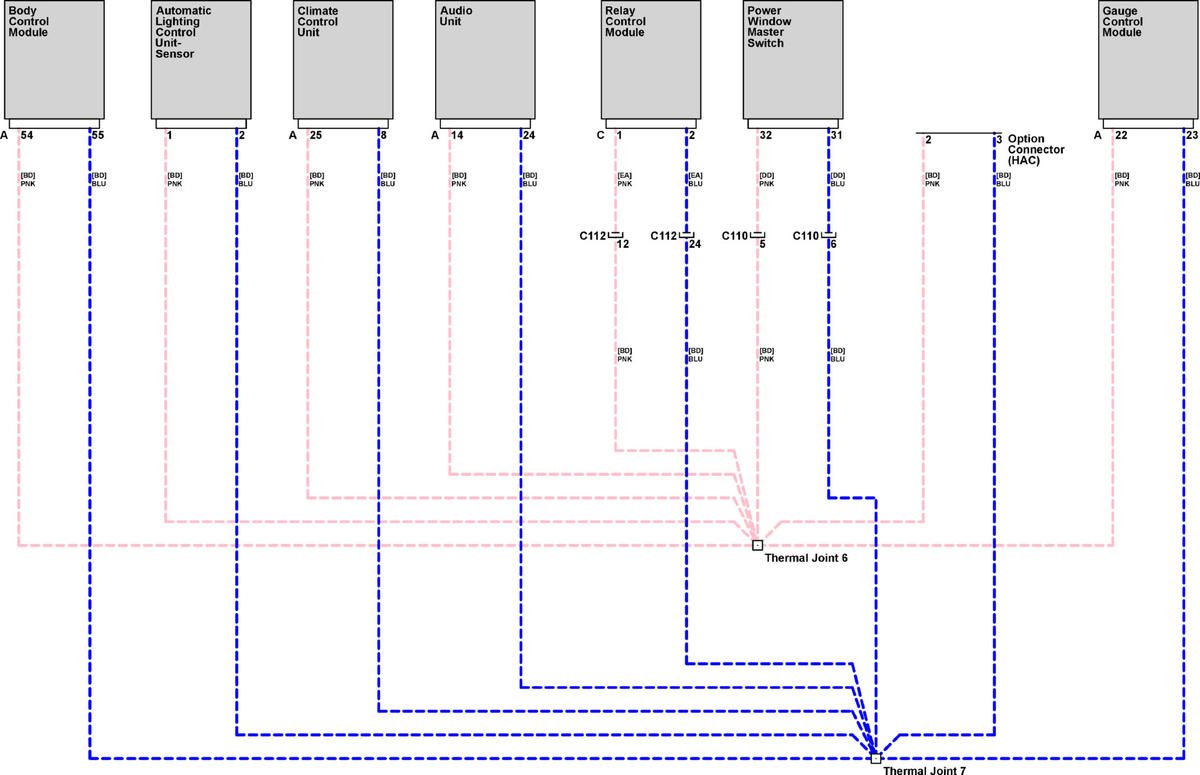

GHHW17017Courtesy of EWD
GHHW17017Courtesy of EWD

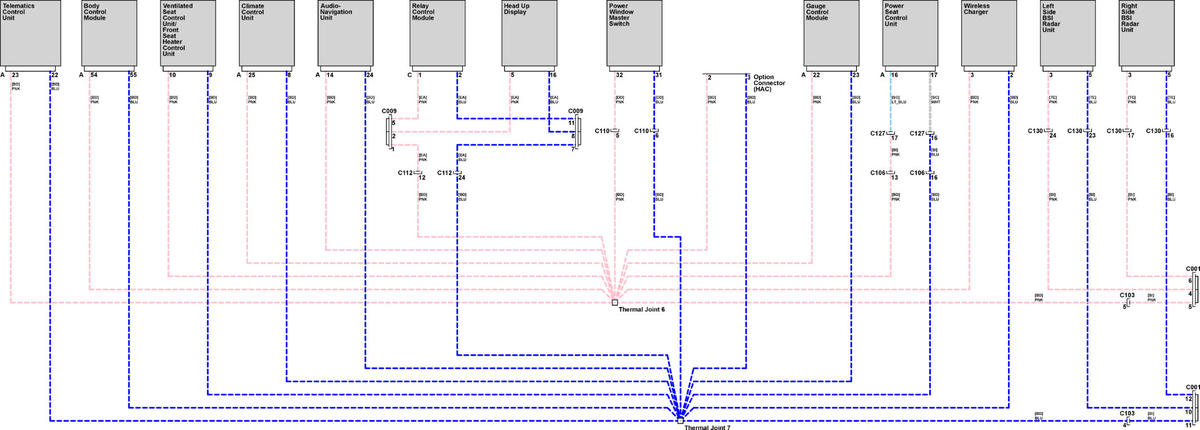

GHHW17018Courtesy of EWD

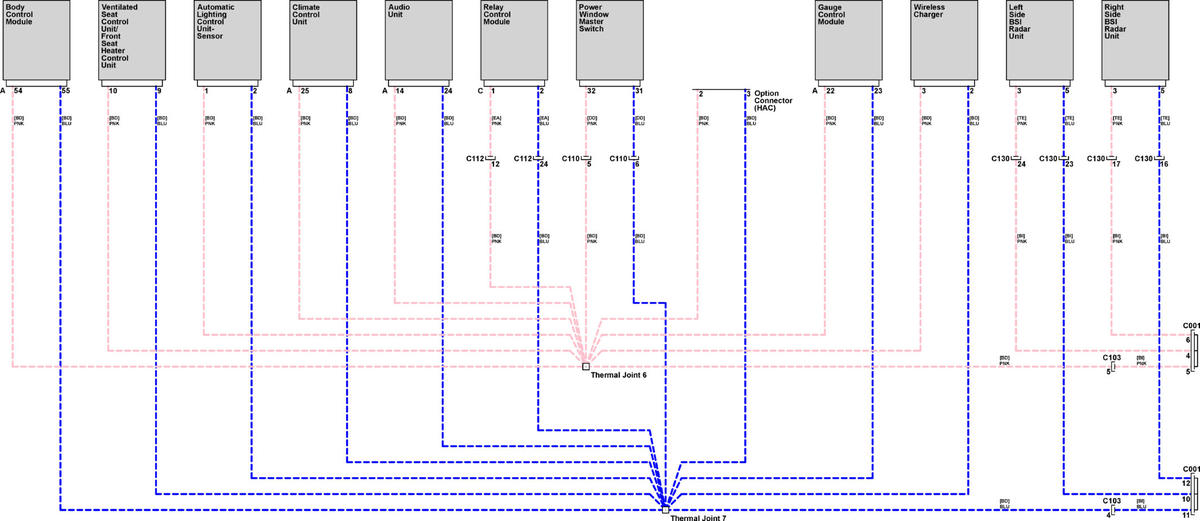

GHHW17019Courtesy of EWD

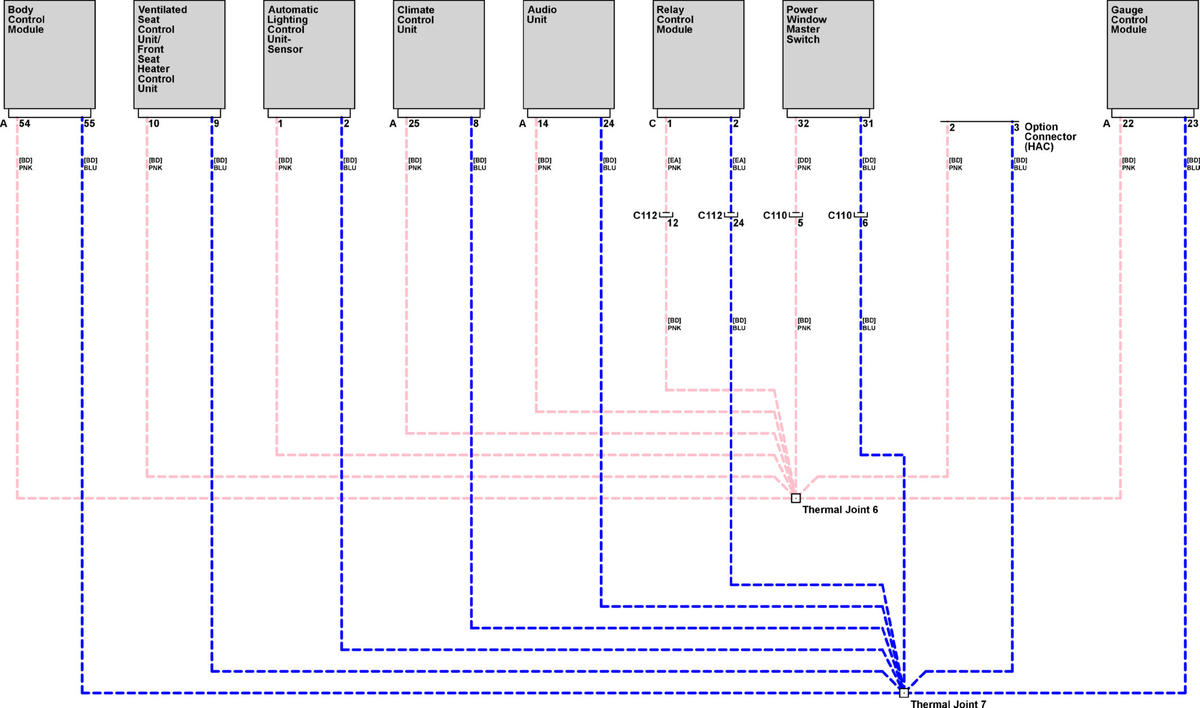

GHHW17020Courtesy of EWD
