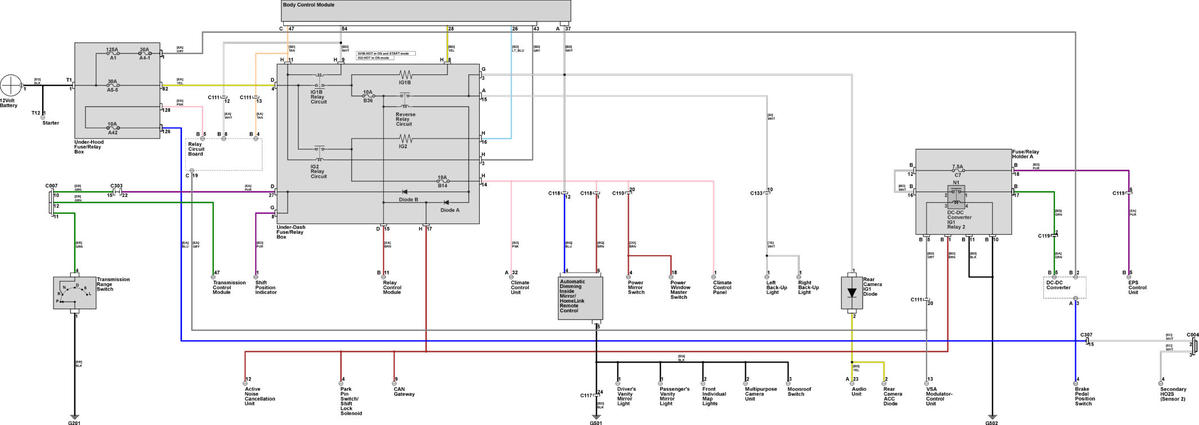

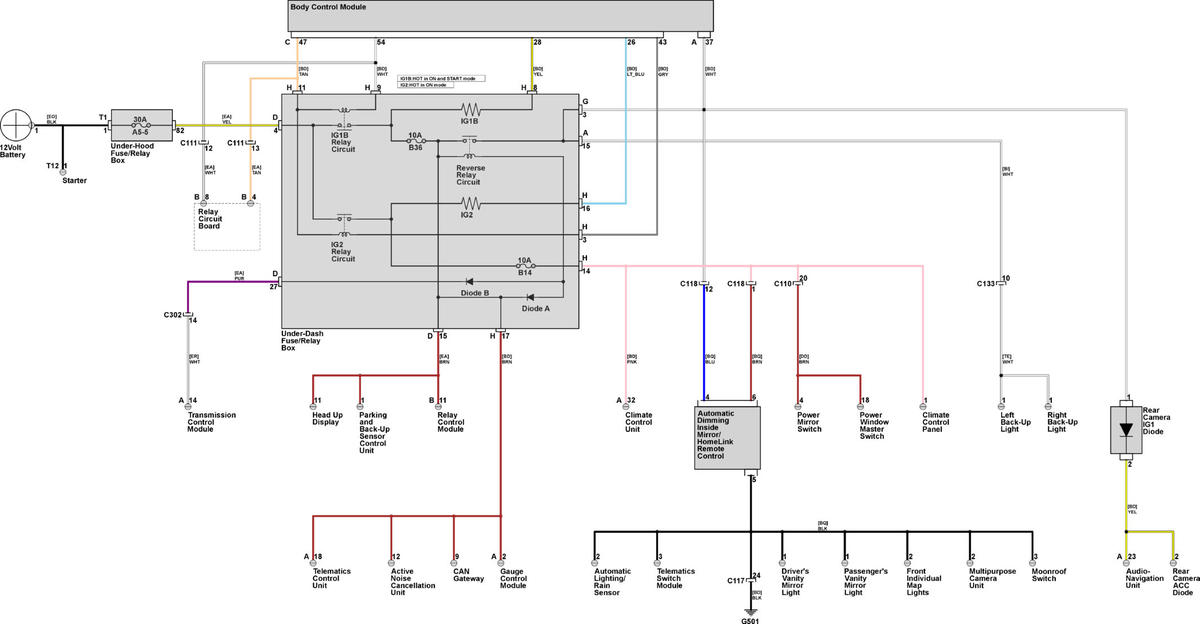

Automatic Dimming Inside Mirror
Automatic Dimming Inside Mirror
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
