Auto High-Beam (High Beam Support System)

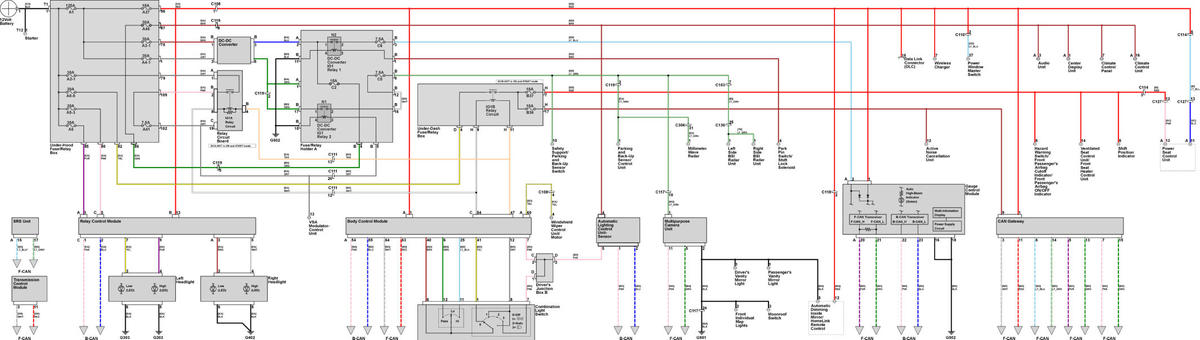

GHHW17117Courtesy of EWD

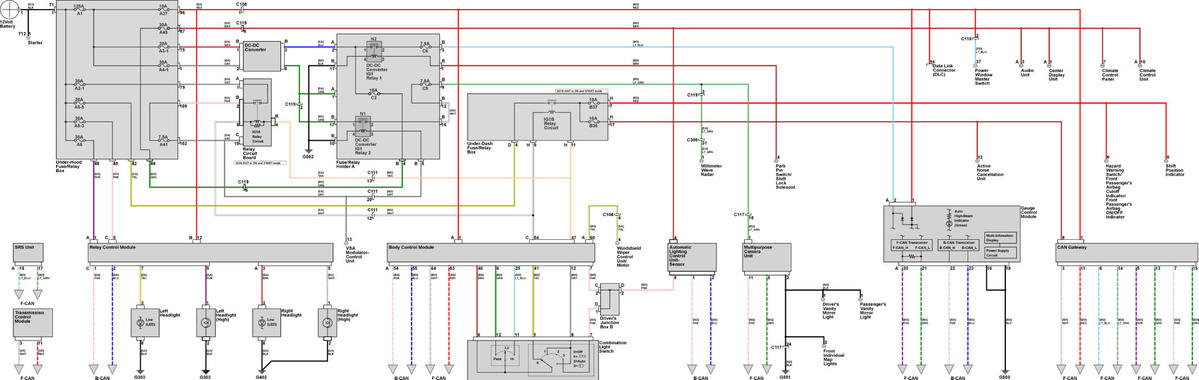

GHHW17118Courtesy of EWD

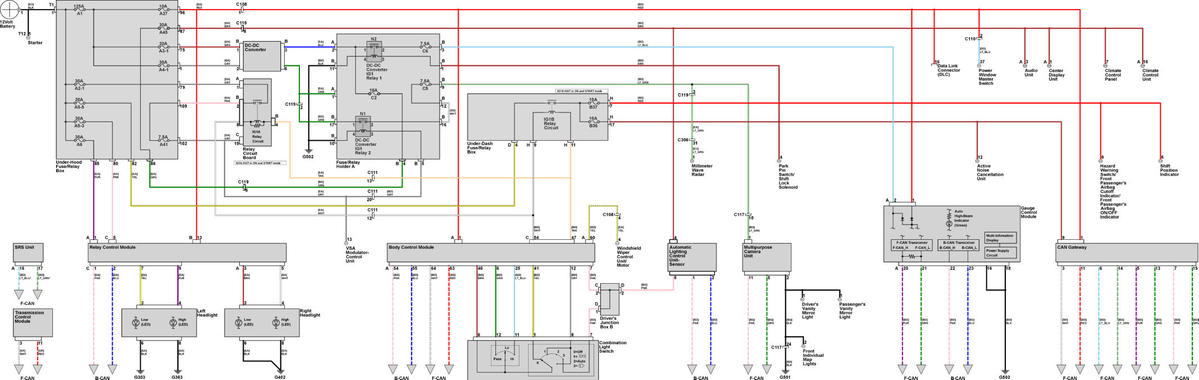

GHHW17119Courtesy of EWD

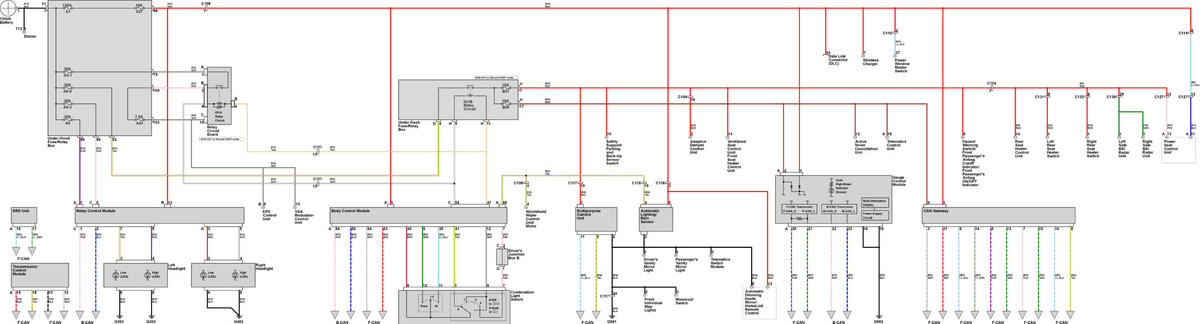

GHHW17120Courtesy of EWD

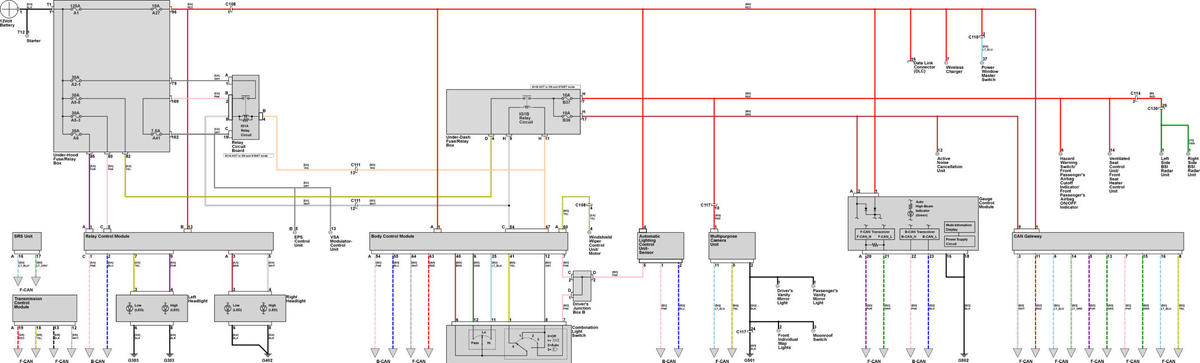

GHHW17121Courtesy of EWD

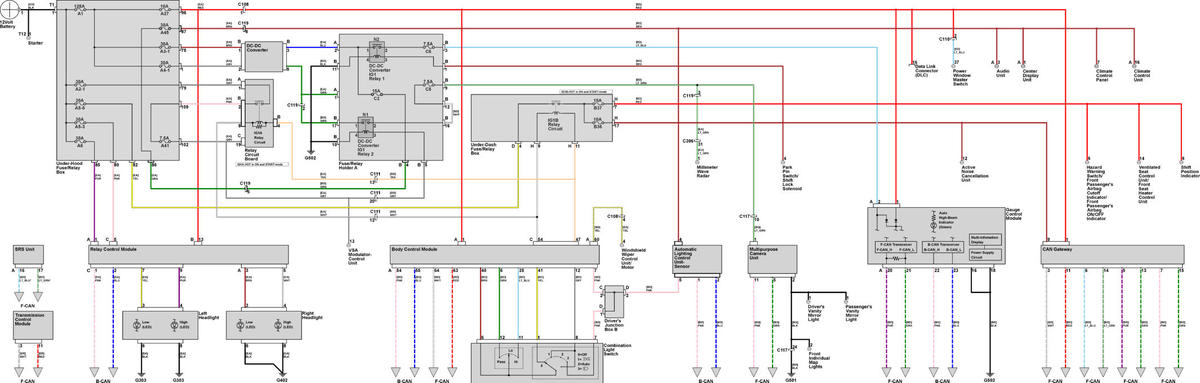

GHHW17122Courtesy of EWD
