Audio System/HFL System (HANDSFREELINK System)

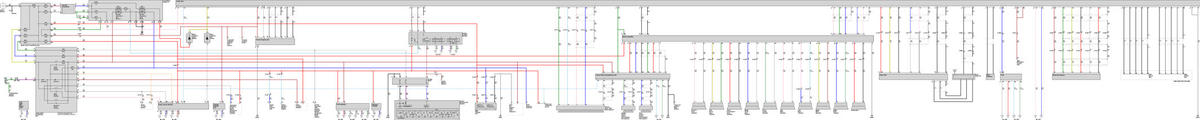

GHHW16989Courtesy of EWD

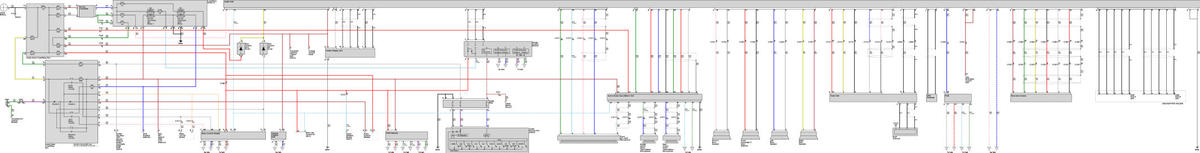

GHHW16990Courtesy of EWD

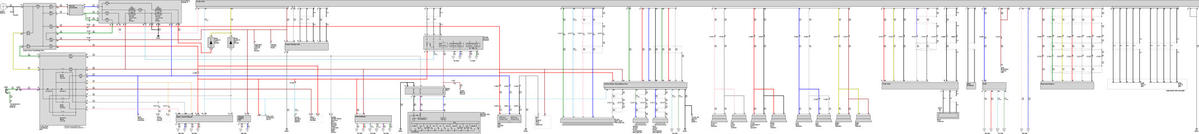

GHHW16991Courtesy of EWD

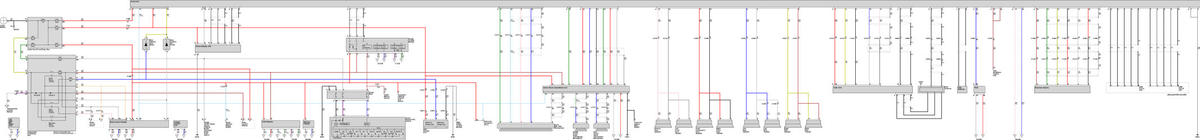

GHHW16992Courtesy of EWD
GHHW16991Courtesy of EWD
