Adaptive Cruise Control (Acc)/Collision Mitigation Brake System (CMBS)

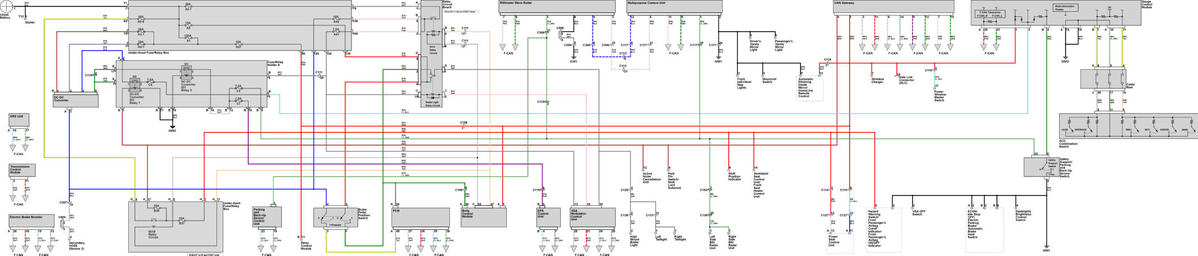

GHHW16967

Courtesy of EWD

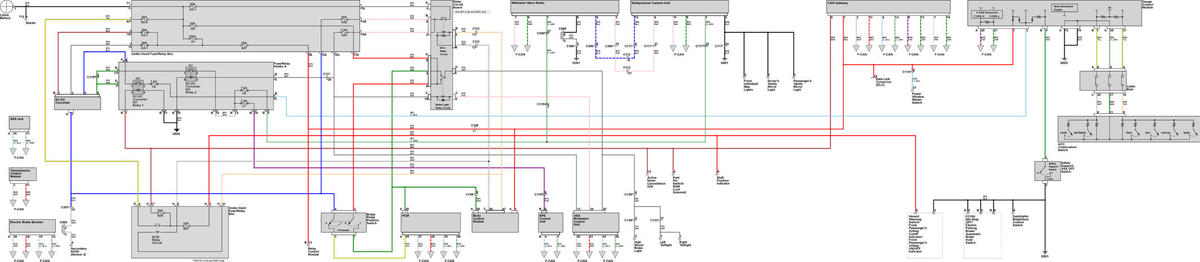

GHHW16968

Courtesy of EWD

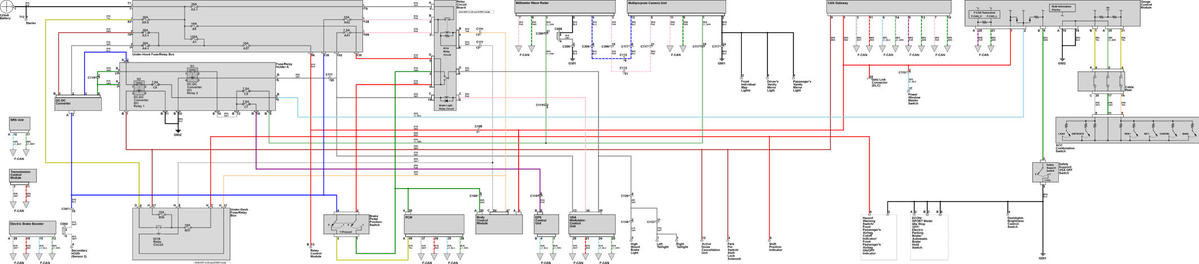

GHHW16969

Courtesy of EWD

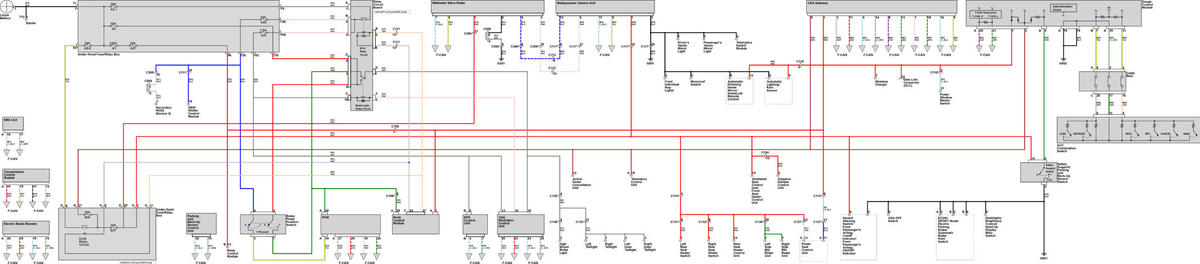

GHHW16970

Courtesy of EWD

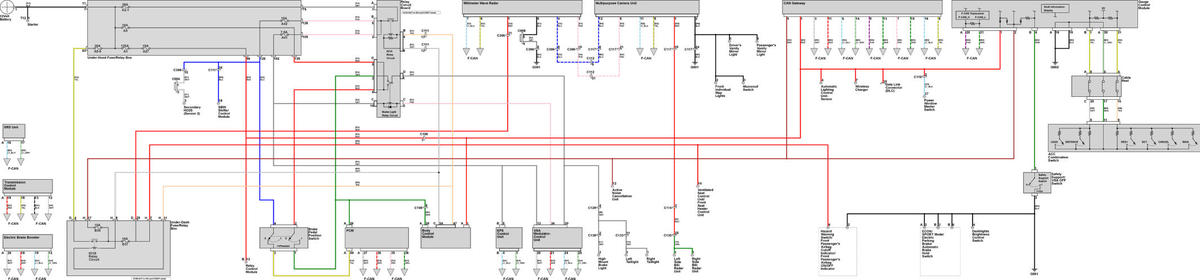

GHHW16971

Courtesy of EWD

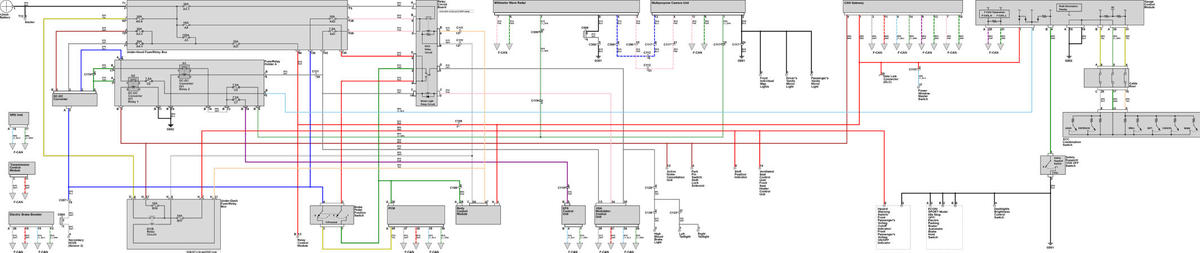

GHHW16972

Courtesy of EWD
