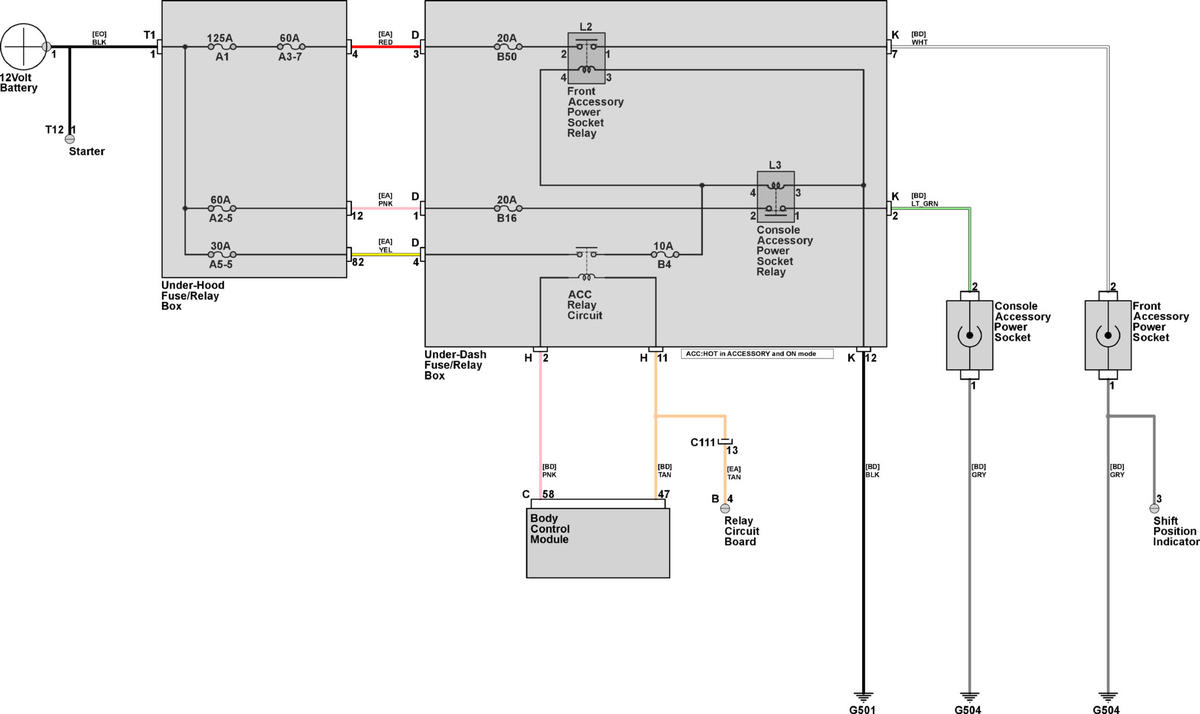

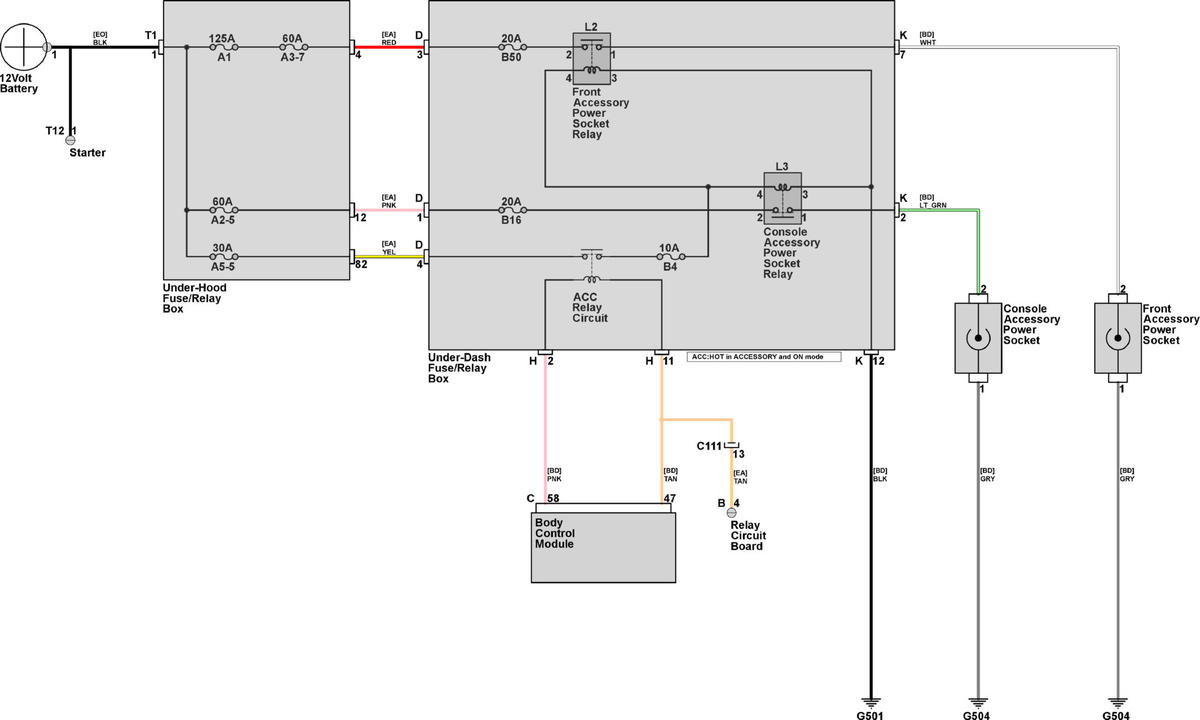

Accessory Power Sockets
Accessory Power Sockets
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
Courtesy of EWDCourtesy of EWDCourtesy of EWD
