Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> A/T Gear Position Indicator

A/T Gear Position Indicator

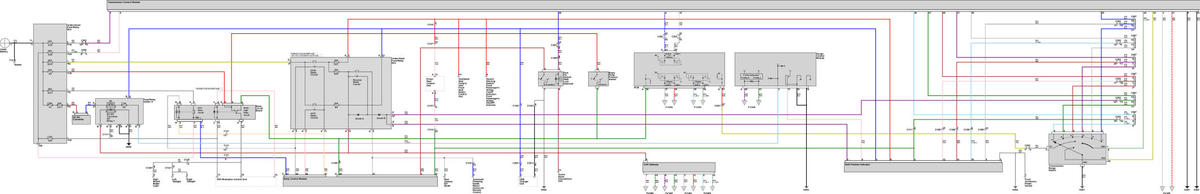

GHHW16980Courtesy of EWD

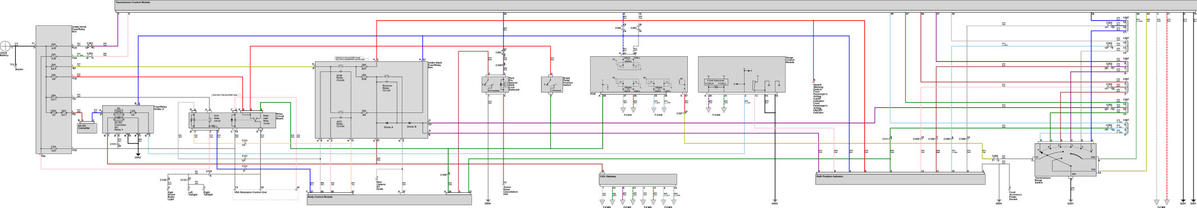

GHHW16981Courtesy of EWD

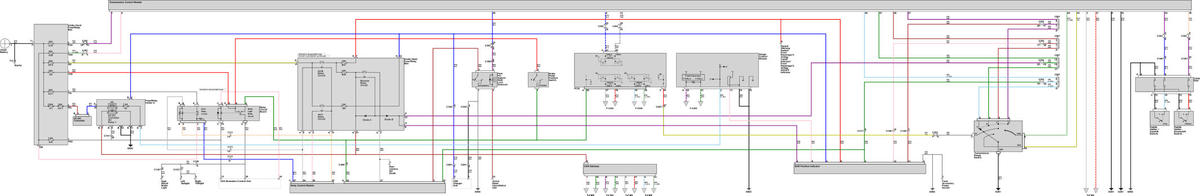

GHHW16982Courtesy of EWD

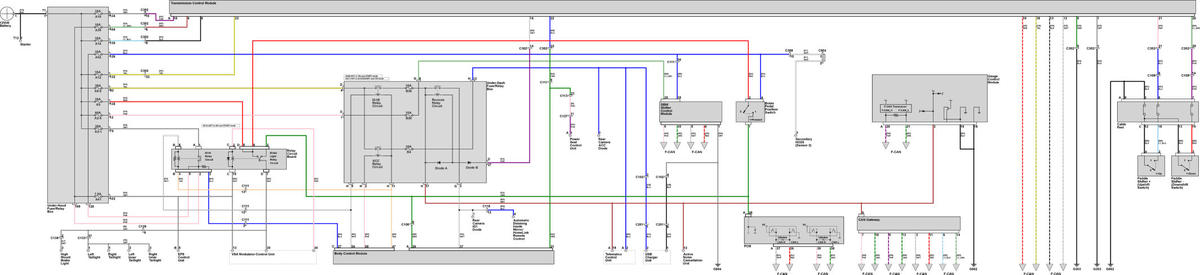

GHHW16983Courtesy of EWD

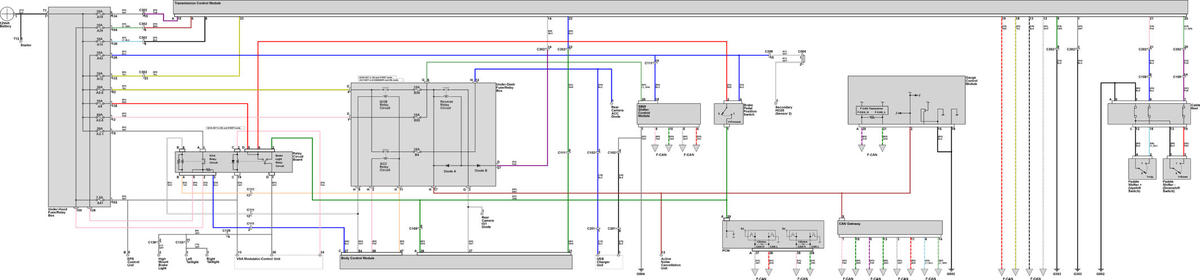

GHHW16984Courtesy of EWD

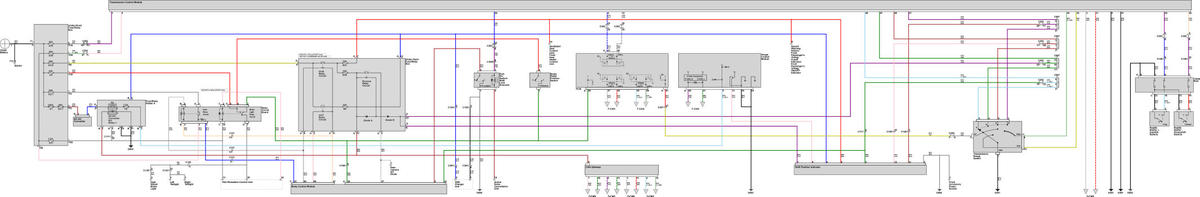

GHHW16985Courtesy of EWD
