Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> A/T Controls

A/T Controls

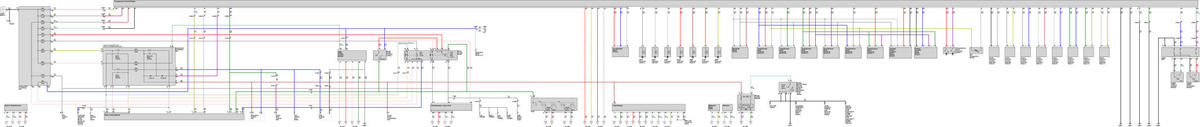

GHHW17279Courtesy of EWD

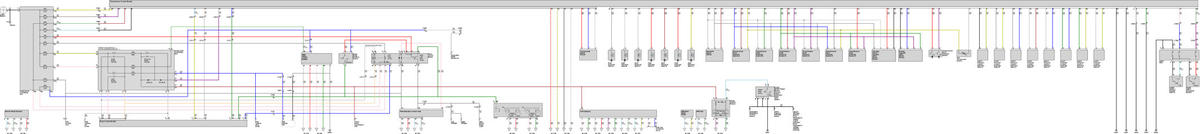

GHHW17280Courtesy of EWD
