Wire Harness And Ground Locations: Seat

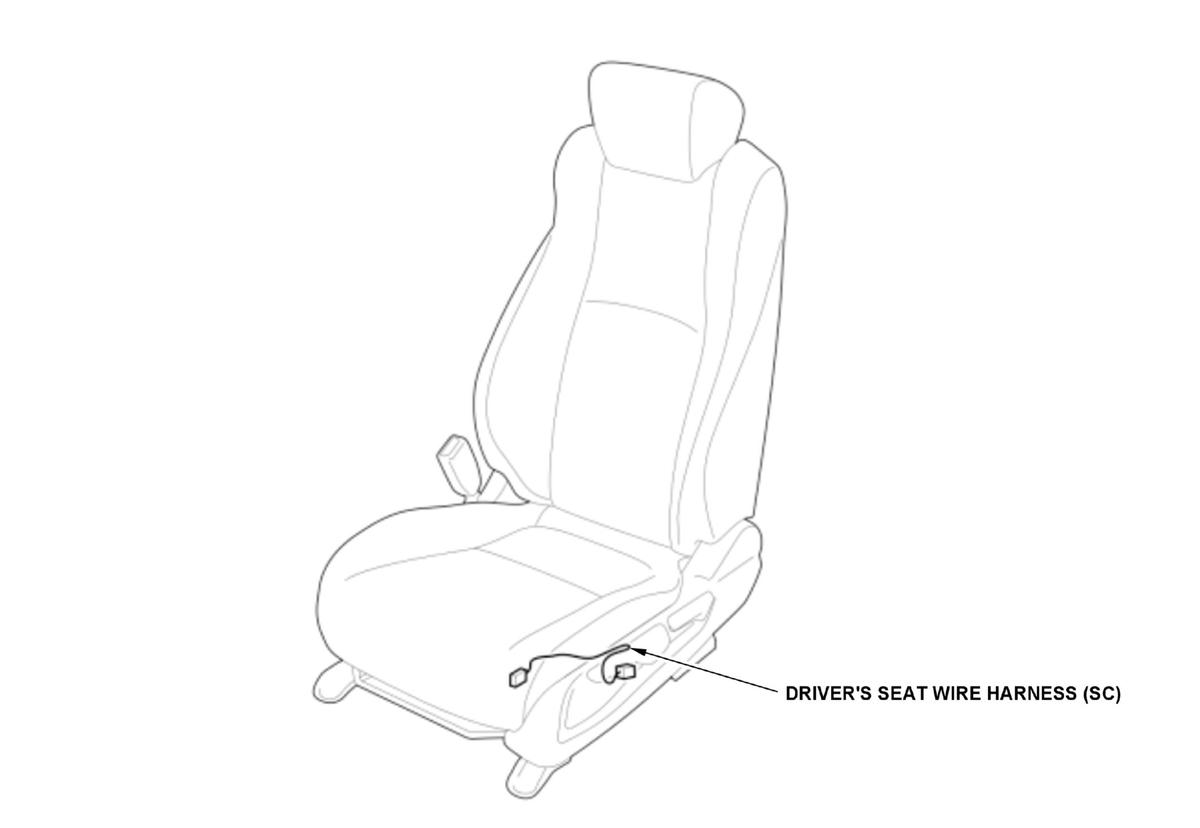

Driver's Seat (Without Power Seat)

Courtesy of HONDA, U.S.A., INC.

Seat - 2/7

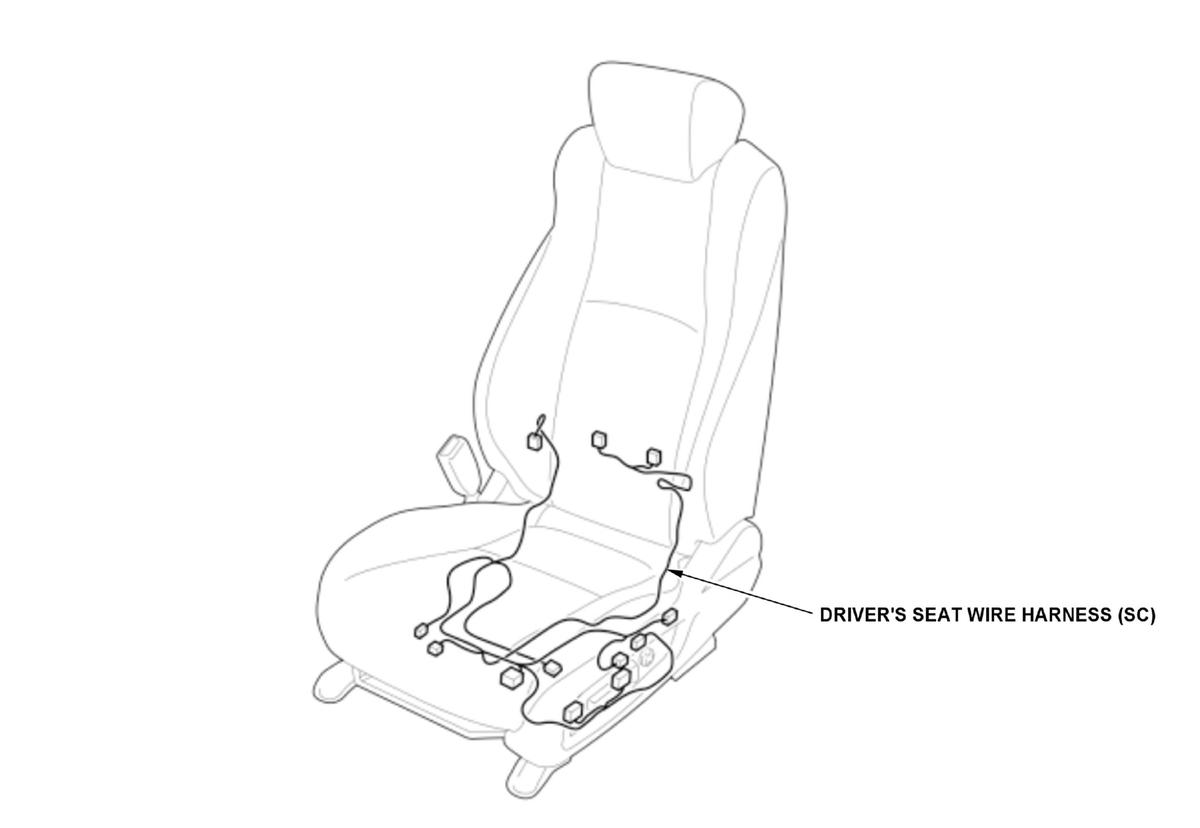

Driver's Seat (Without Ventilated Seat With Power Seat)

Courtesy of HONDA, U.S.A., INC.

Seat - 3/7

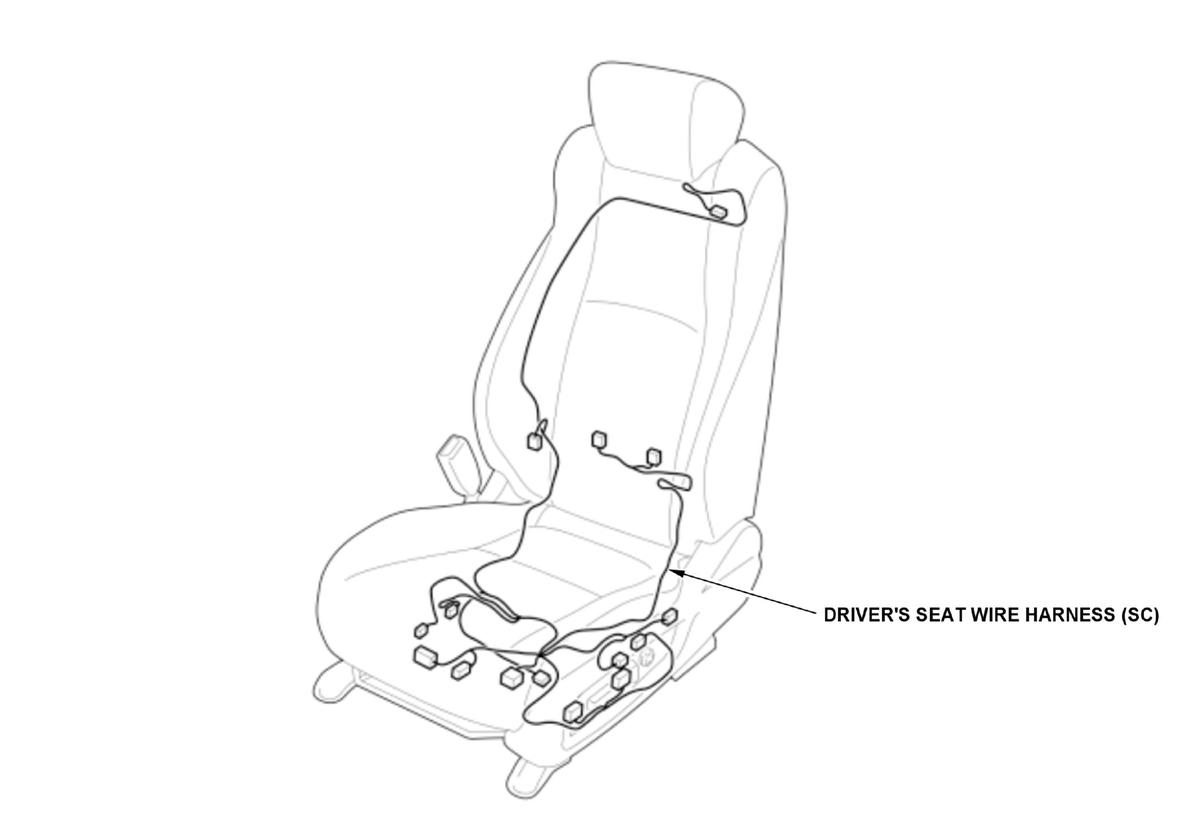

Driver's Seat (With Ventilated Seat)

Courtesy of HONDA, U.S.A., INC.

Seat - 4/7

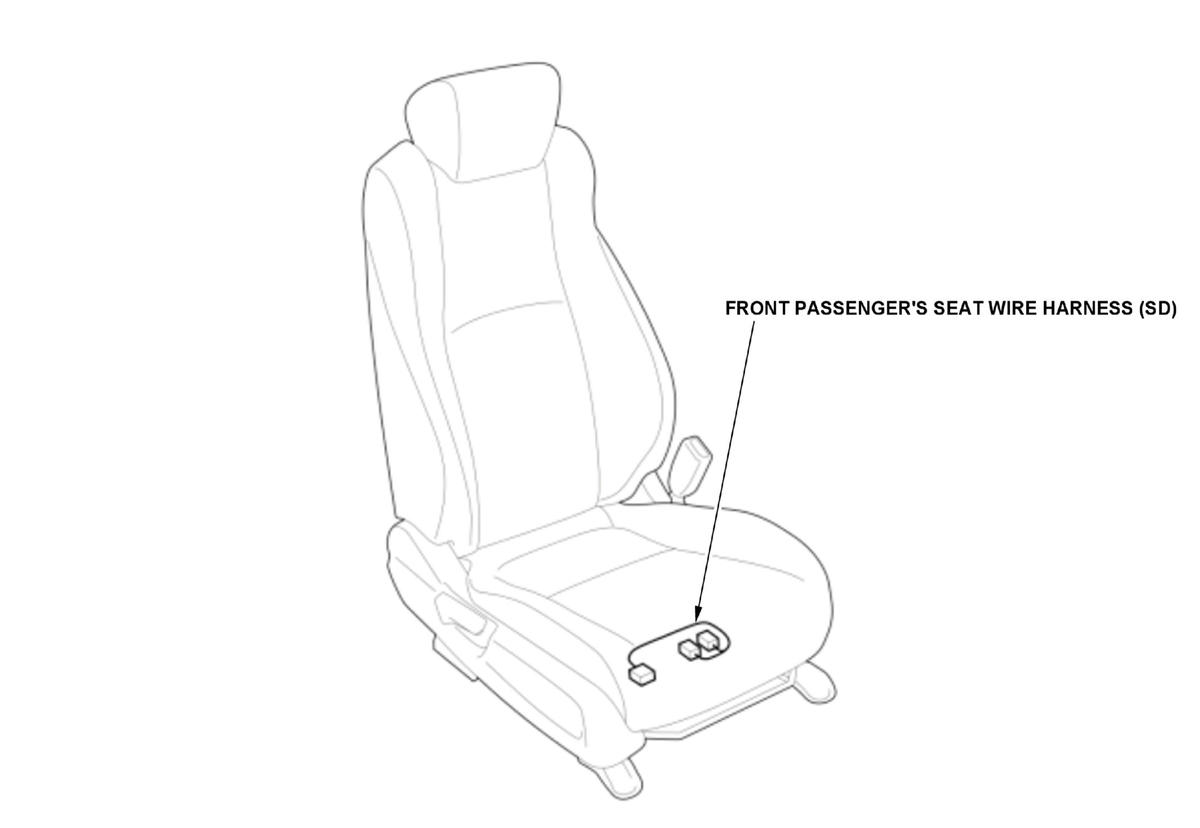

Front Passenger's Seat (USA and Canada Models Without Power Seat)

Courtesy of HONDA, U.S.A., INC.

Seat - 5/7

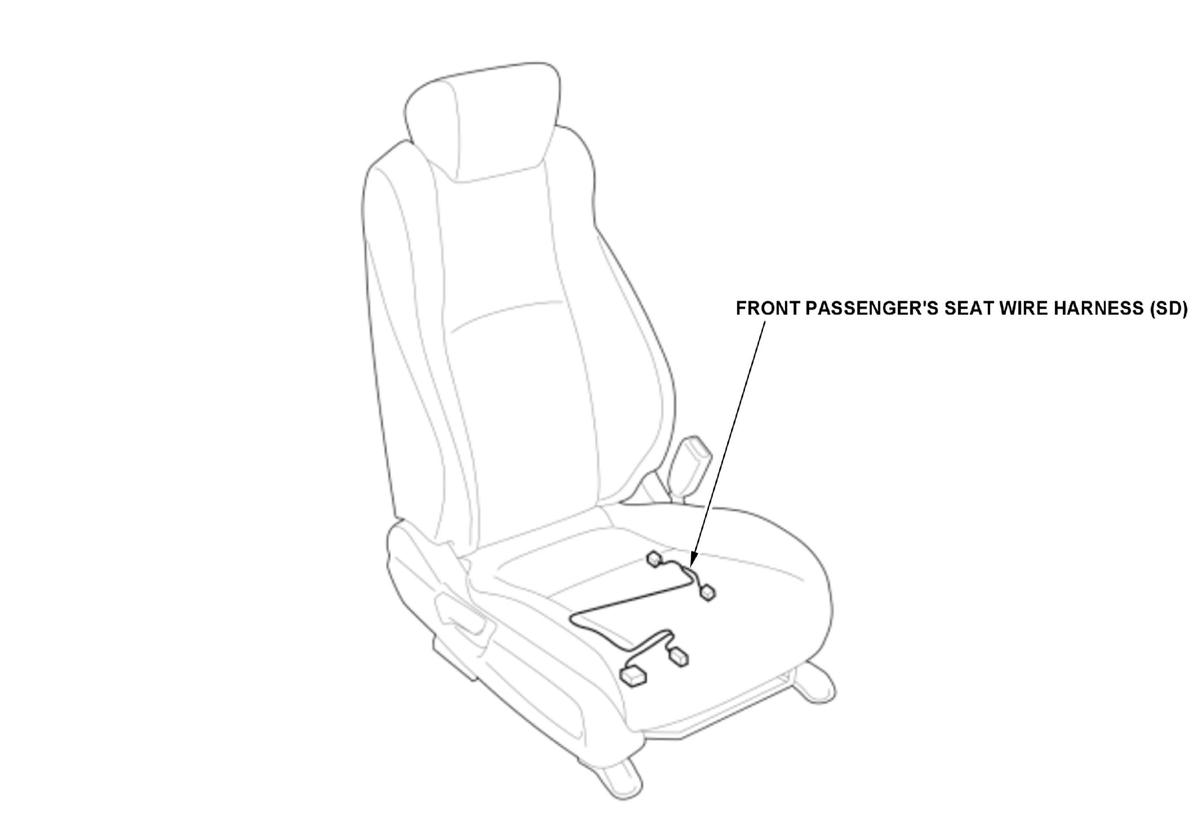

Front Passenger's Seat (Mexico Model Without Power Seat)

Courtesy of HONDA, U.S.A., INC.

Seat - 6/7

Front Passenger's Seat (Without Ventilated Seat With Power Seat)

Courtesy of HONDA, U.S.A., INC.

Seat - 7/7

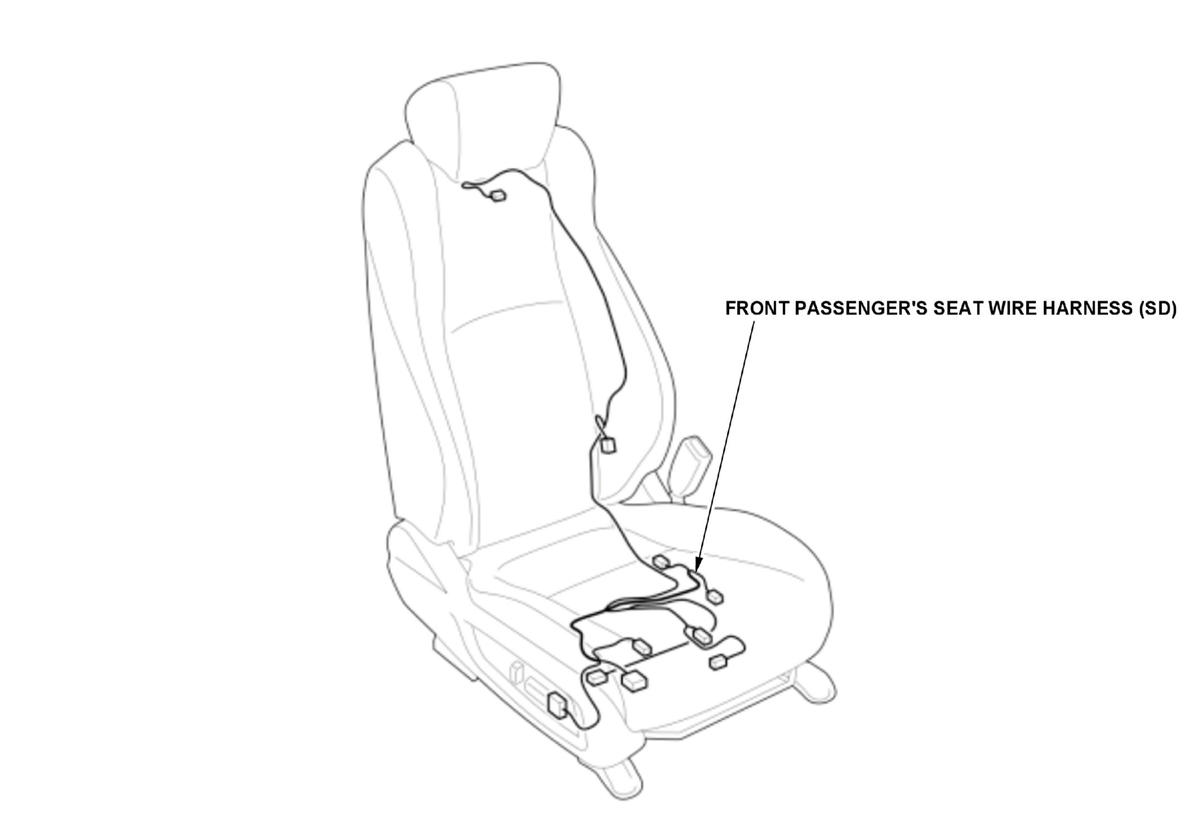

Front Passenger's Seat (With Ventilated Seat)

Courtesy of HONDA, U.S.A., INC.
