Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Harness And Ground Locations (Except Hybrid) >> Wire Harness And Ground Locations >> Rear Of Vehicle

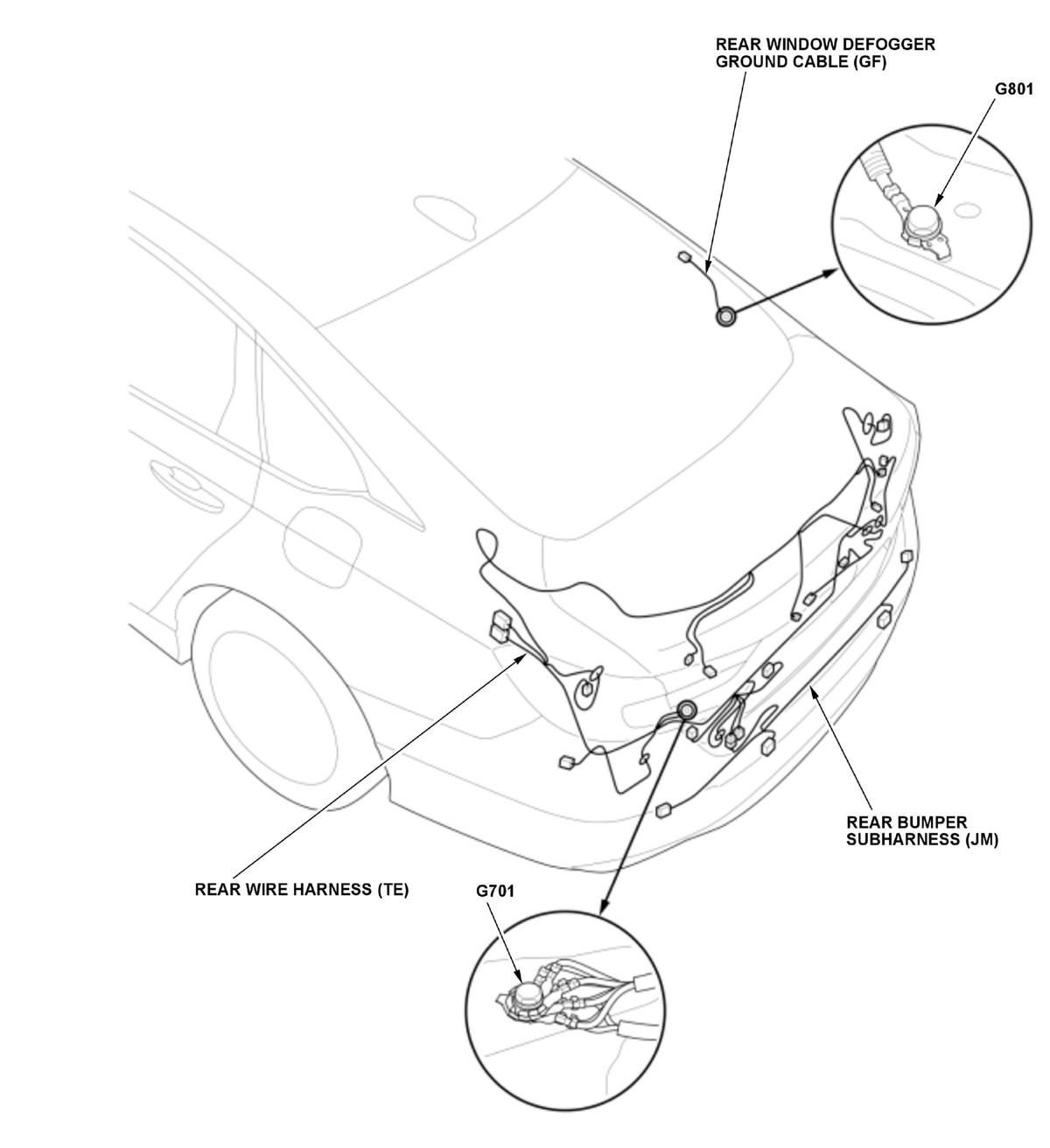

Rear Of Vehicle

GHH391617Courtesy of HONDA, U.S.A., INC.
