OEM Harness And Ground Locations (Except Hybrid)
>>
Wire Harness And Ground Locations
>>
Floor

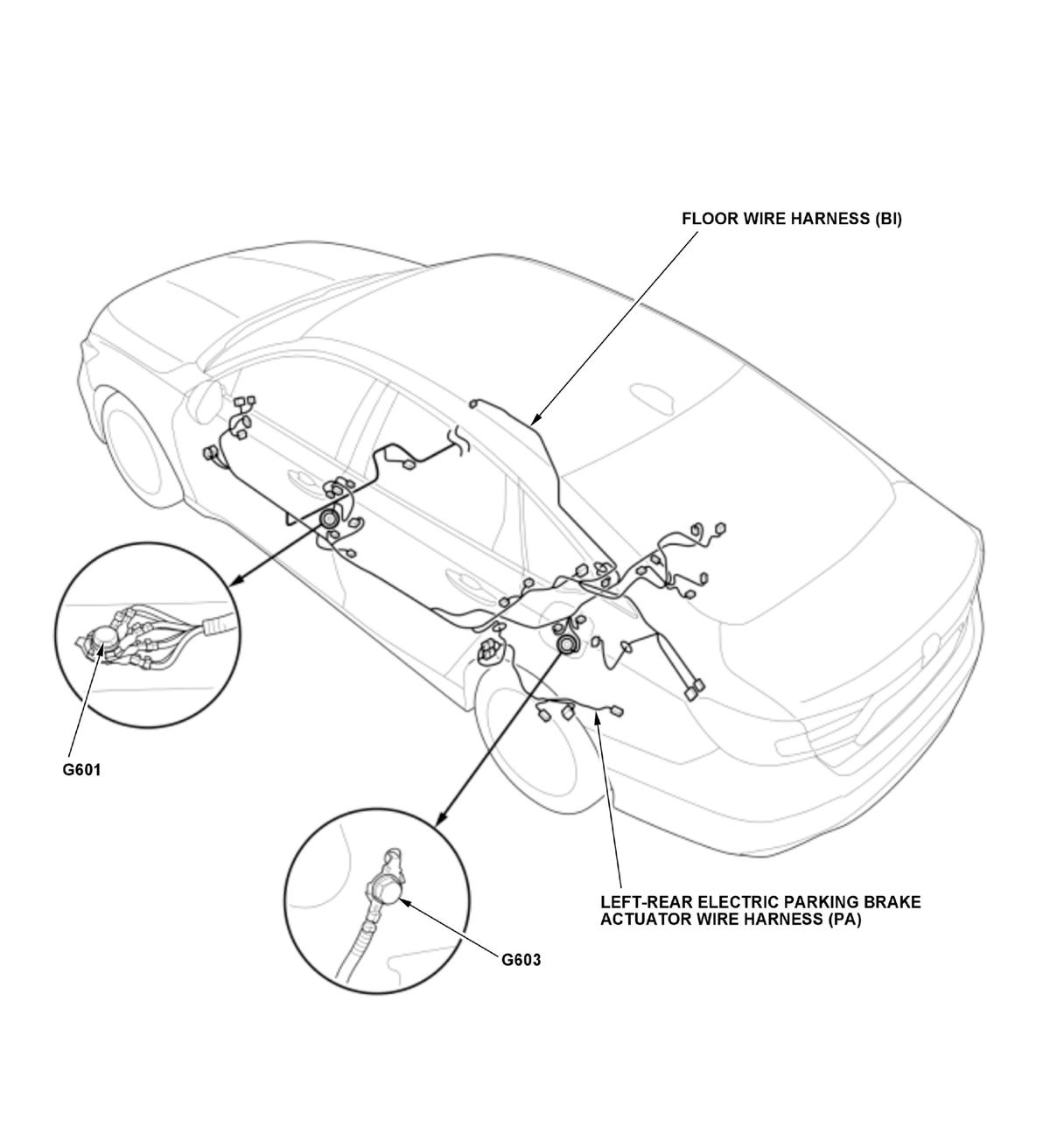

Wire Harness And Ground Locations: Floor
Courtesy of HONDA, U.S.A., INC.

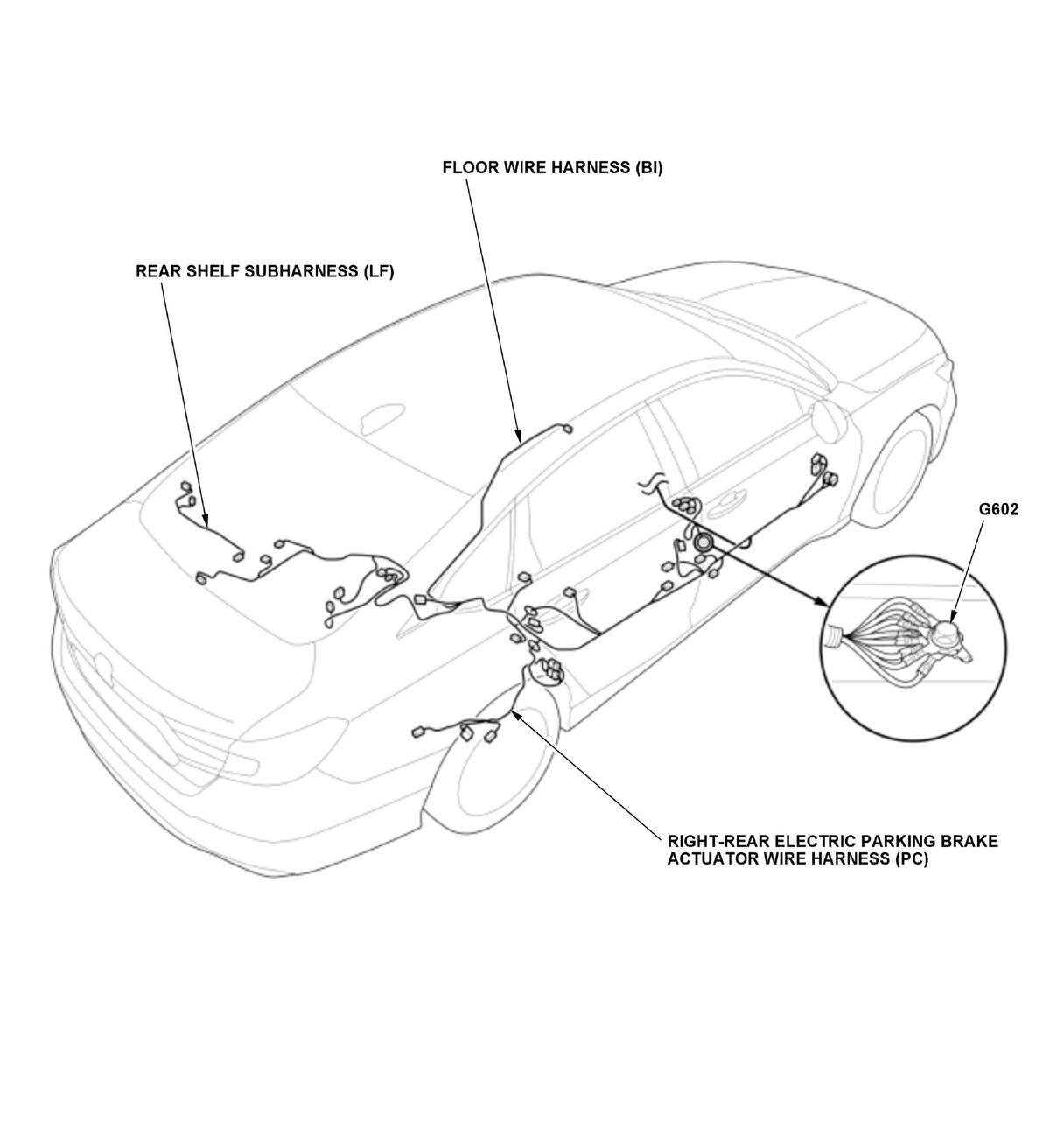

Floor - 2/2
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
