Engine Compartment

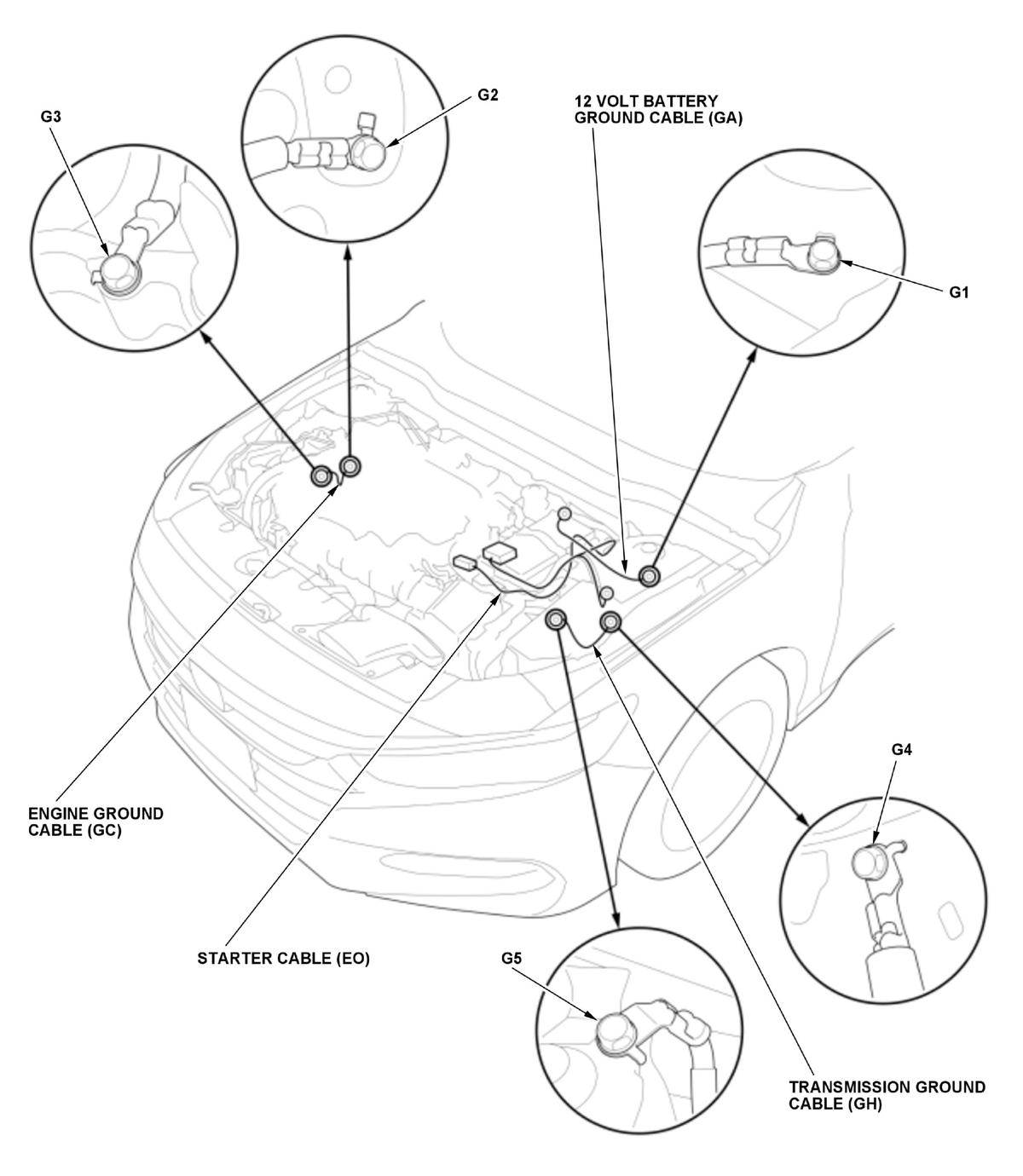

Without Auto Idle Stop System

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 2/10

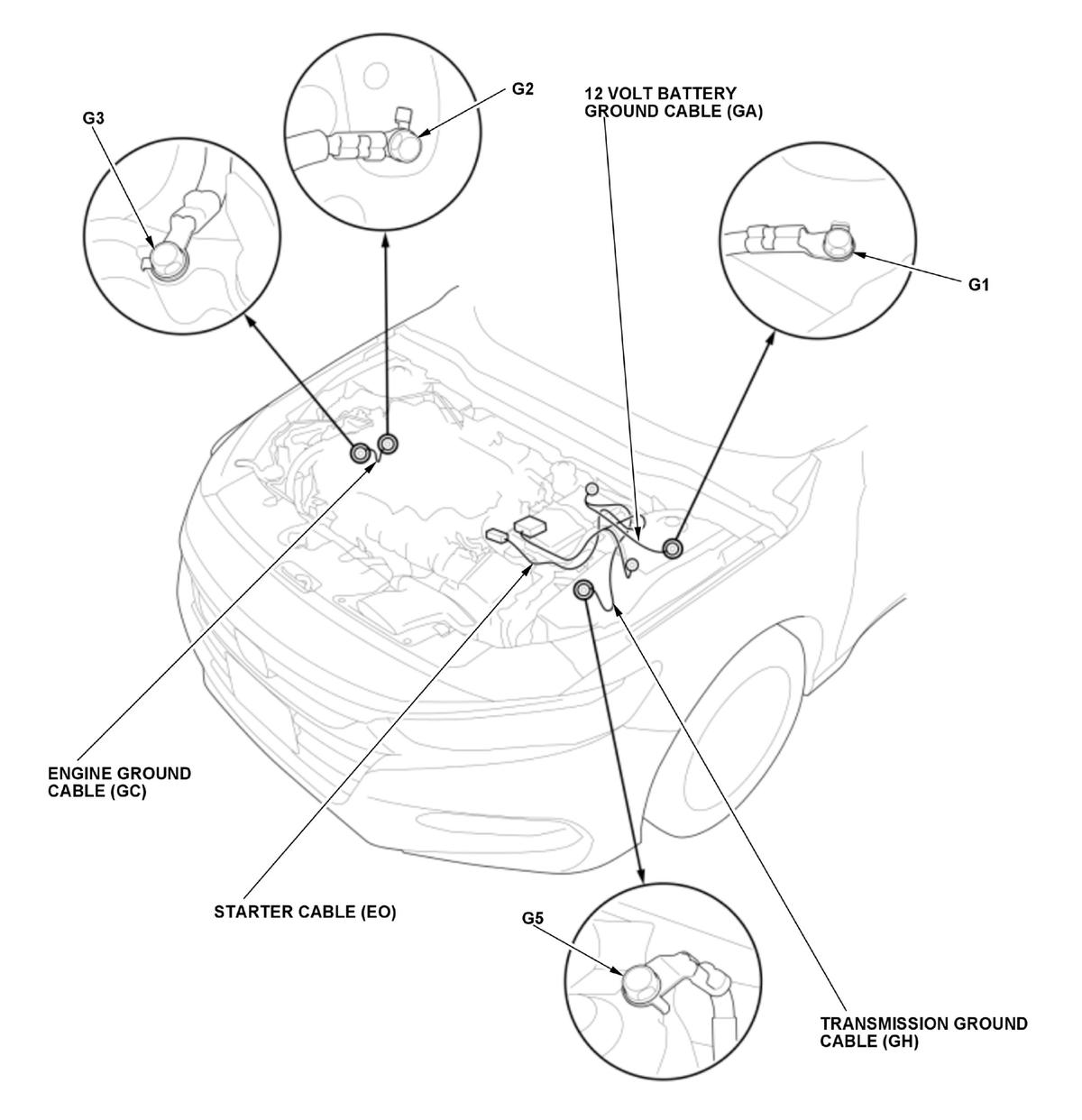

With Auto Idle Stop System

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 3/10

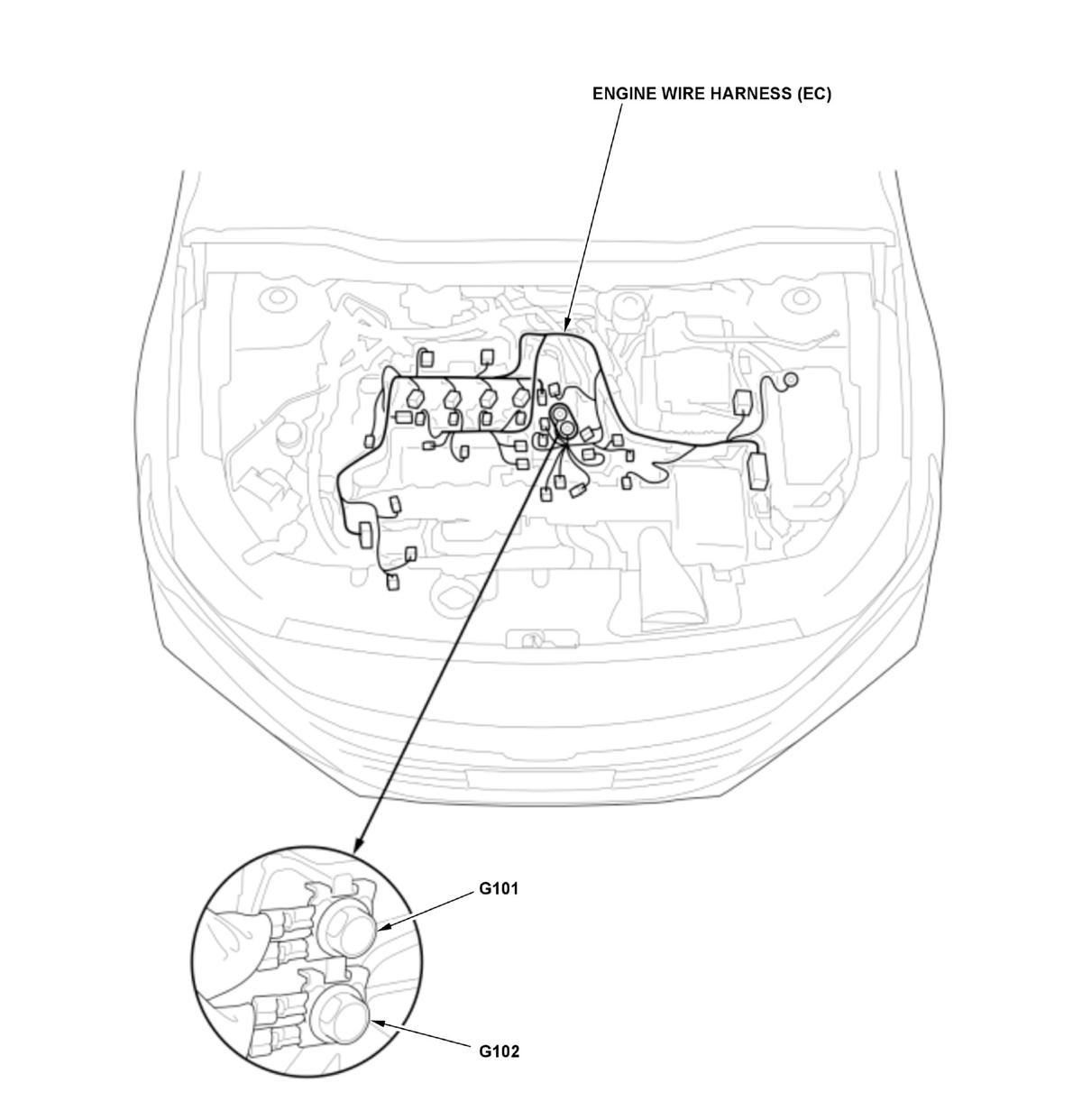

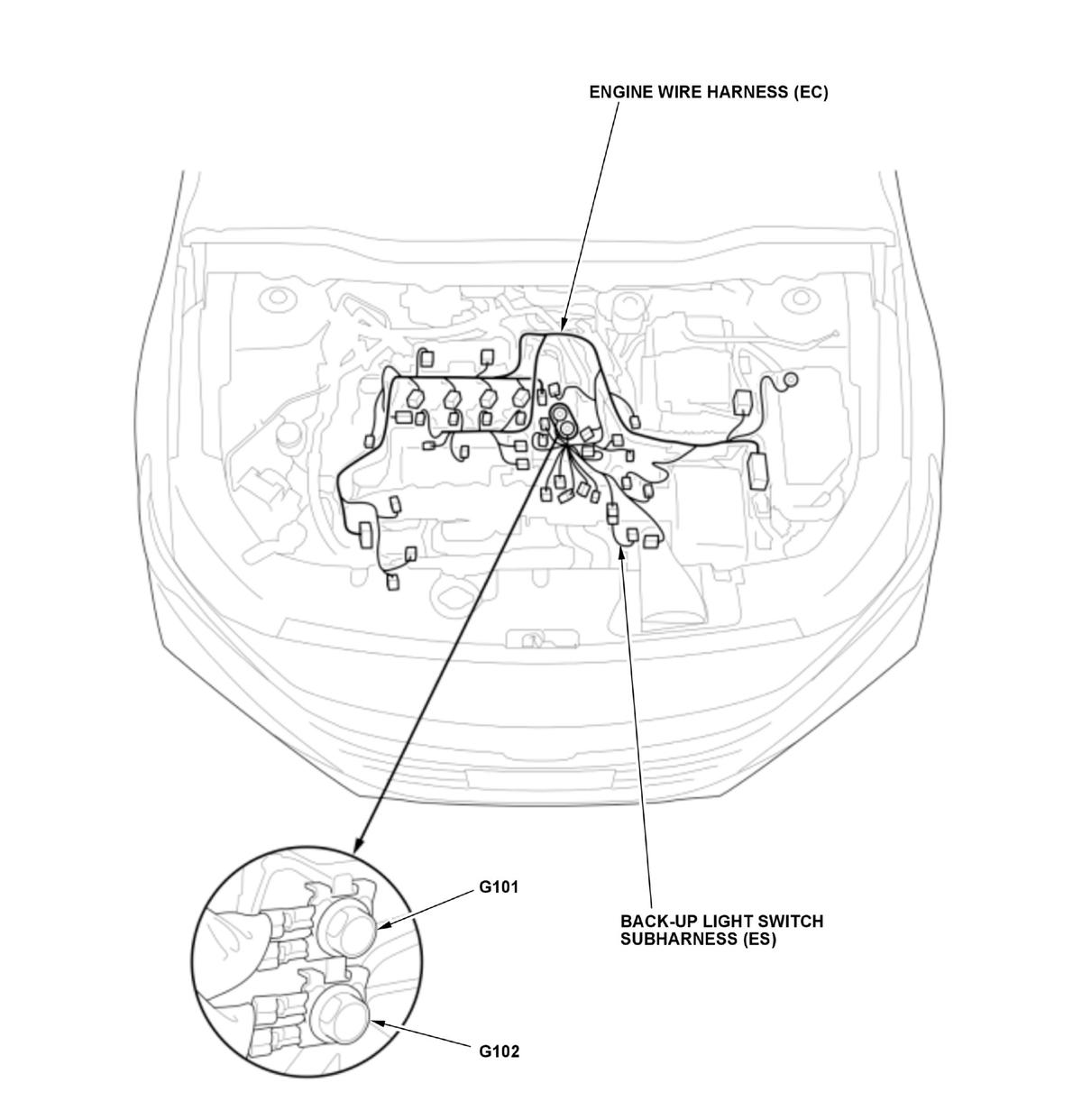

1.5 L Engine (M/T)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 4/10

1.5 L Engine (CVT)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 5/10

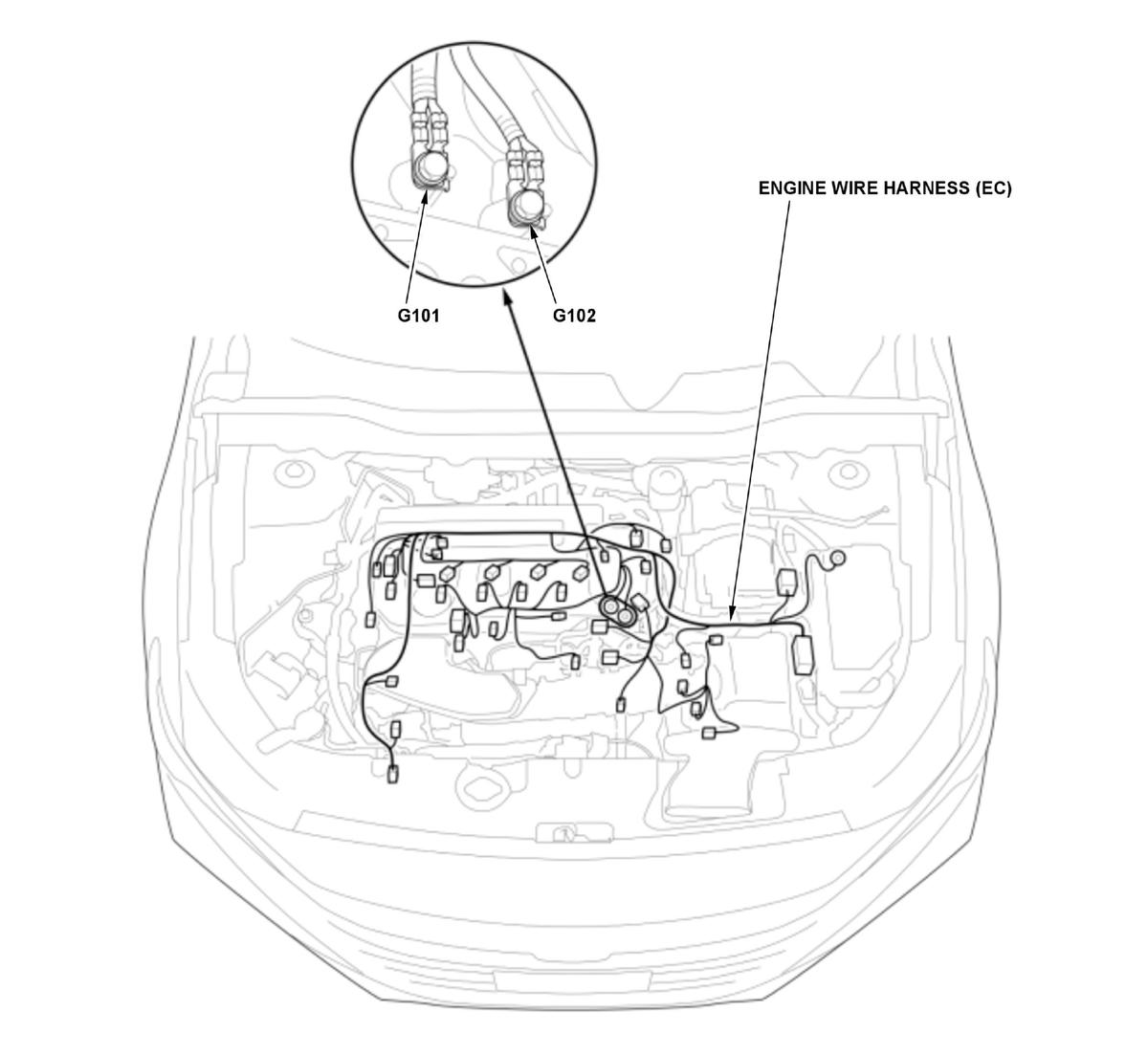

2.0 L Engine (M/T)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 6/10

2.0 L Engine (A/T)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 7/10

1.5 L Engine (CVT)

Courtesy of HONDA, U.S.A., INC.

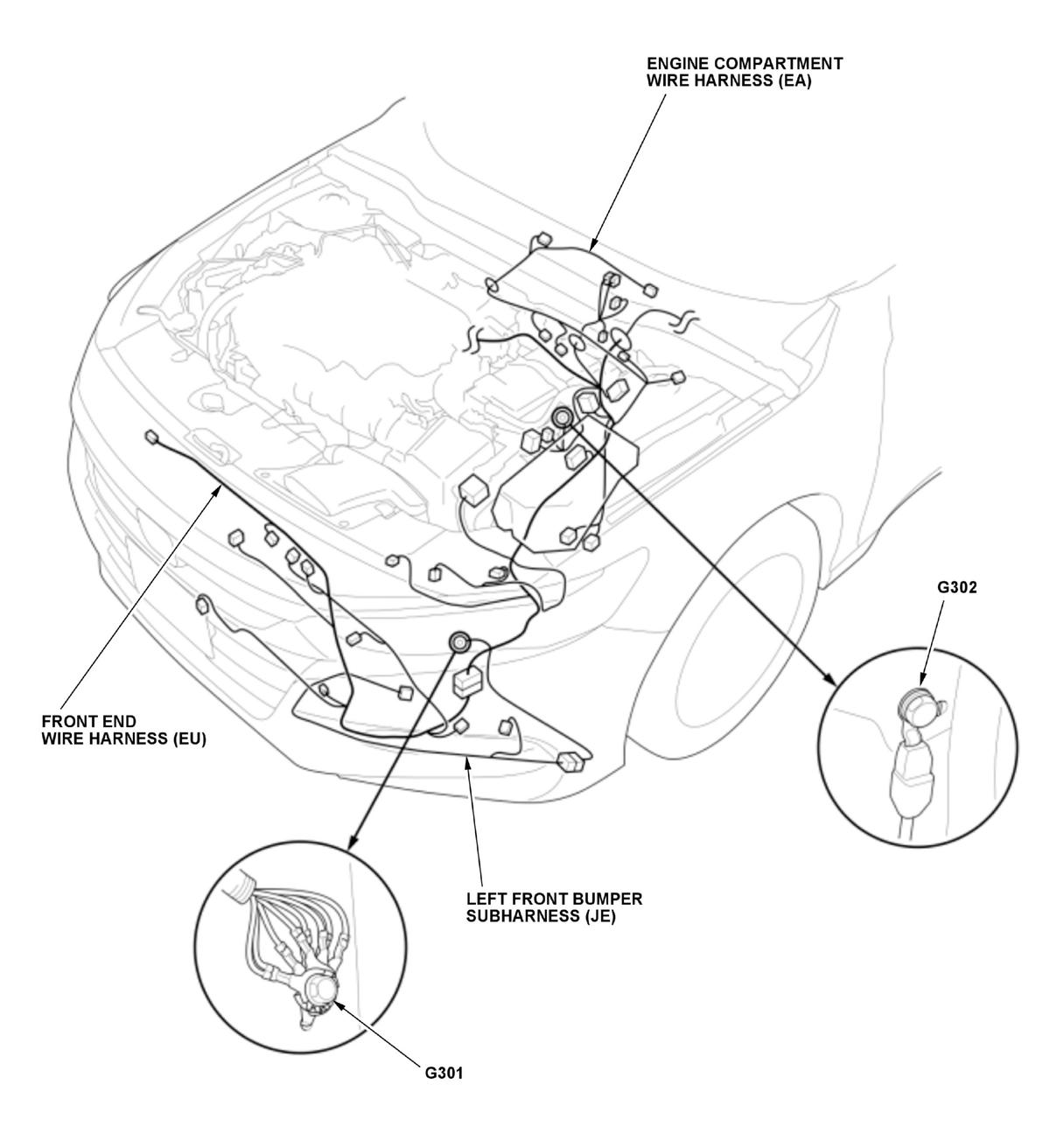

Engine Compartment - 8/10

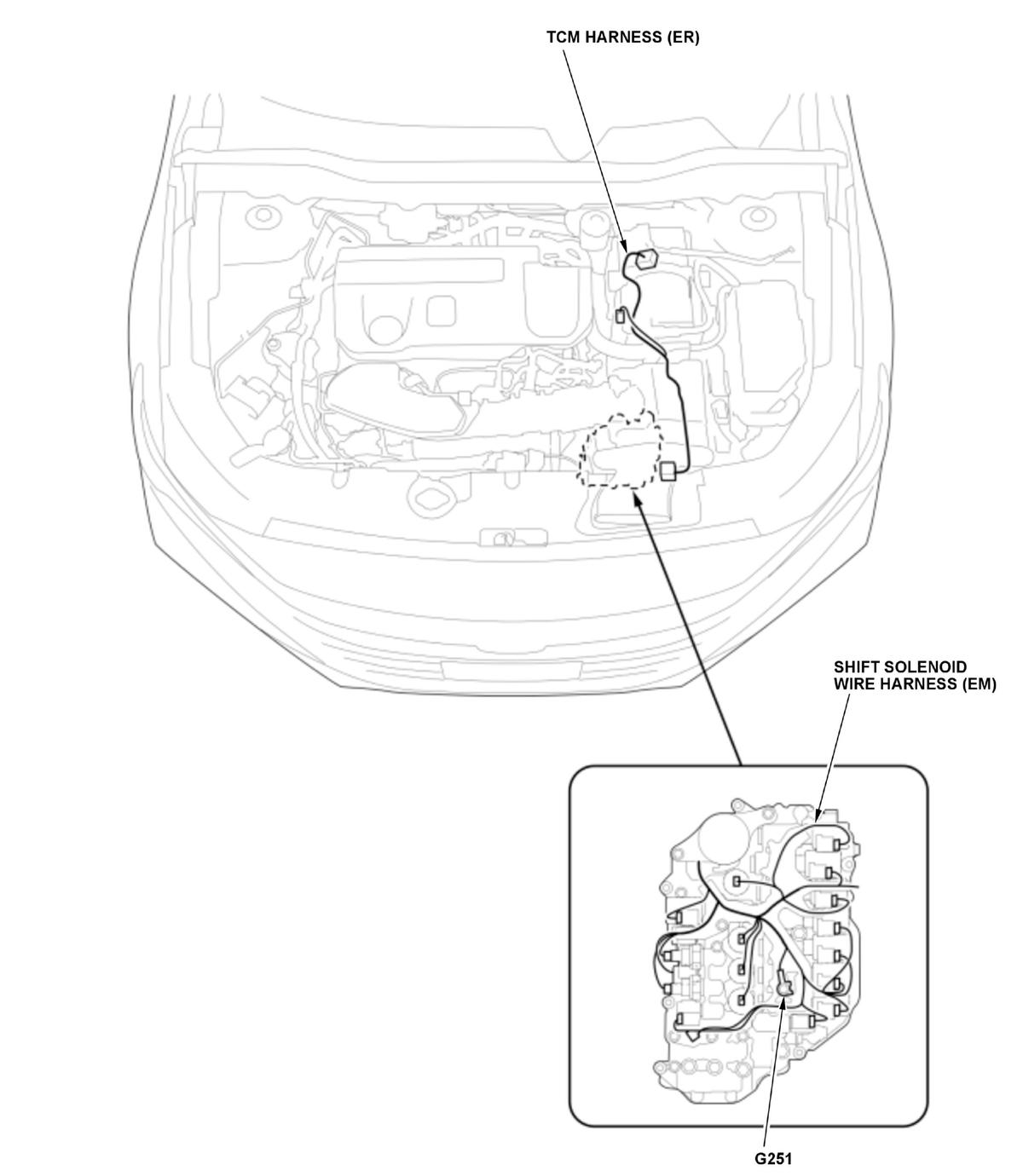

2.0 L Engine (A/T)

Courtesy of HONDA, U.S.A., INC.

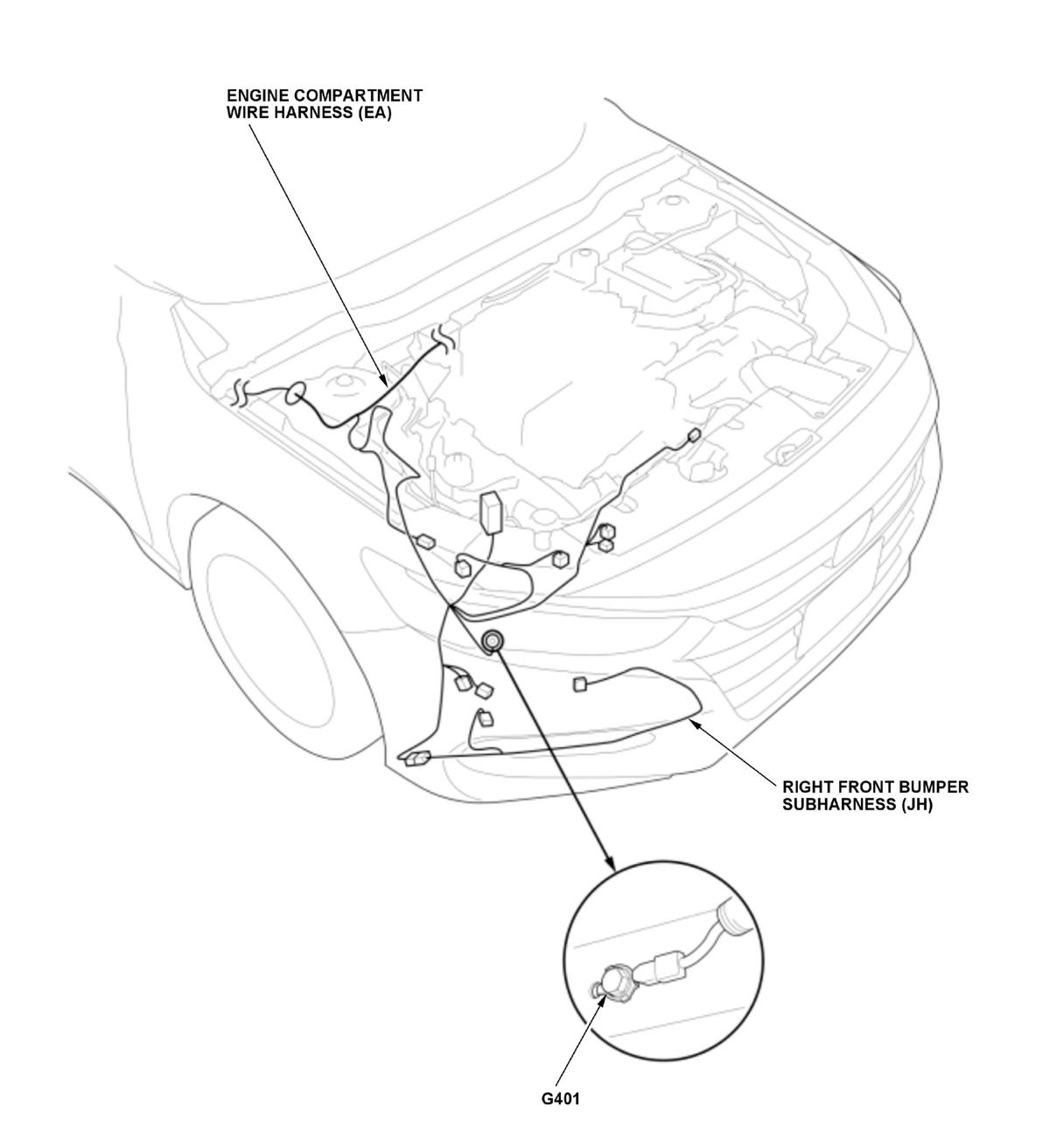

Engine Compartment - 9/10

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 10/10

Courtesy of HONDA, U.S.A., INC.
