Wire Harness And Ground Locations: Door

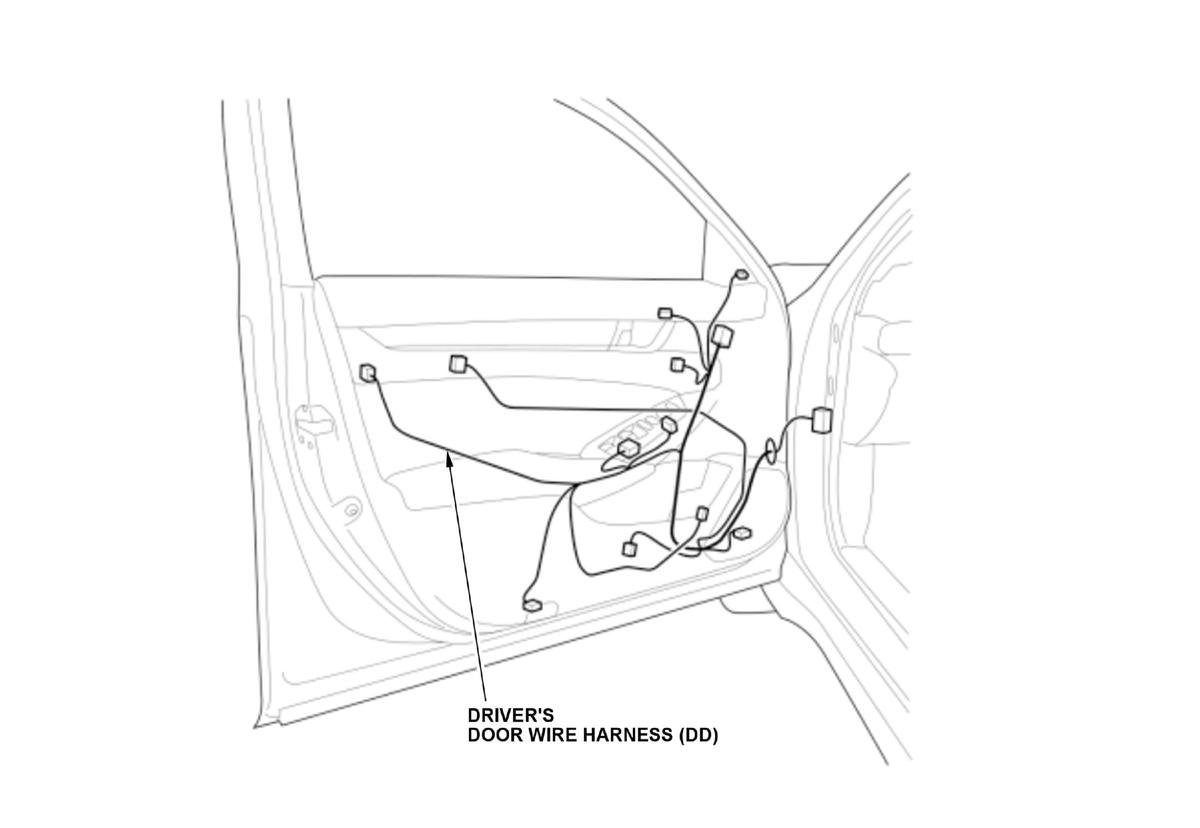

Driver's Door

Courtesy of HONDA, U.S.A., INC.

Door - 2/4

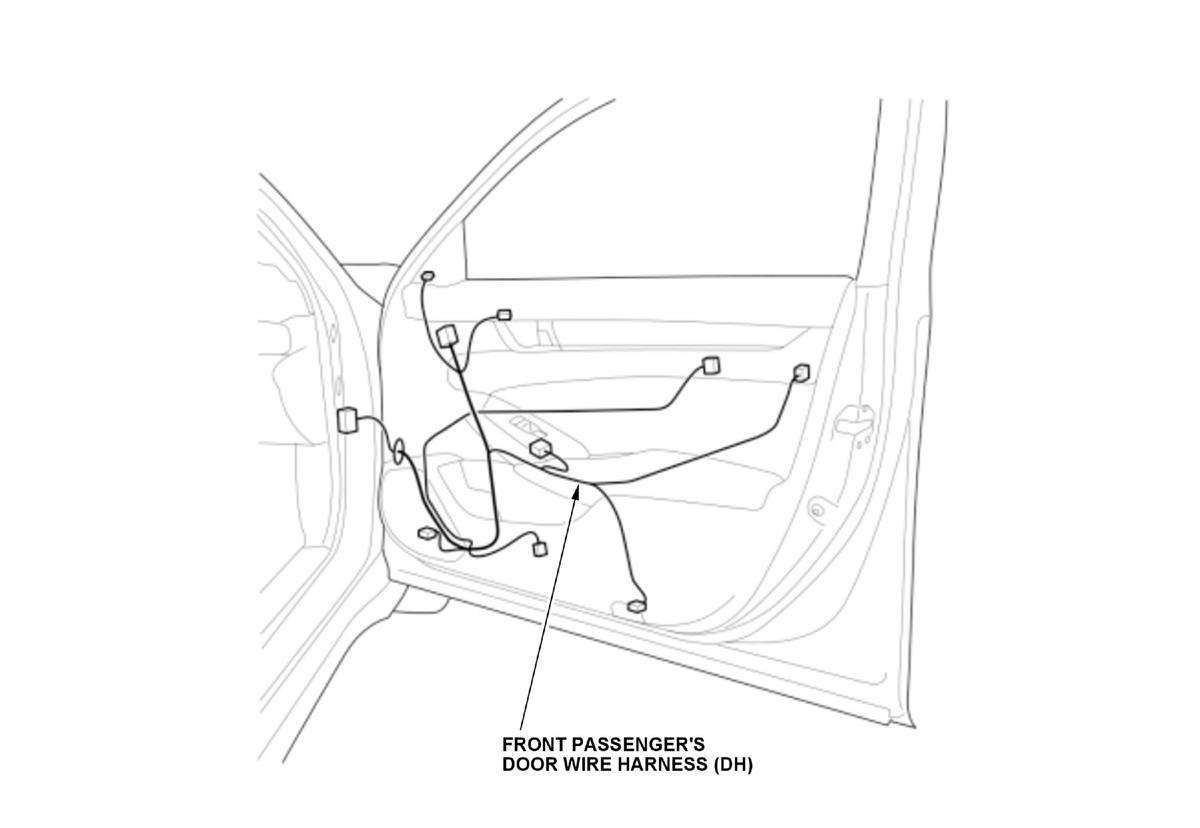

Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.

Door - 3/4

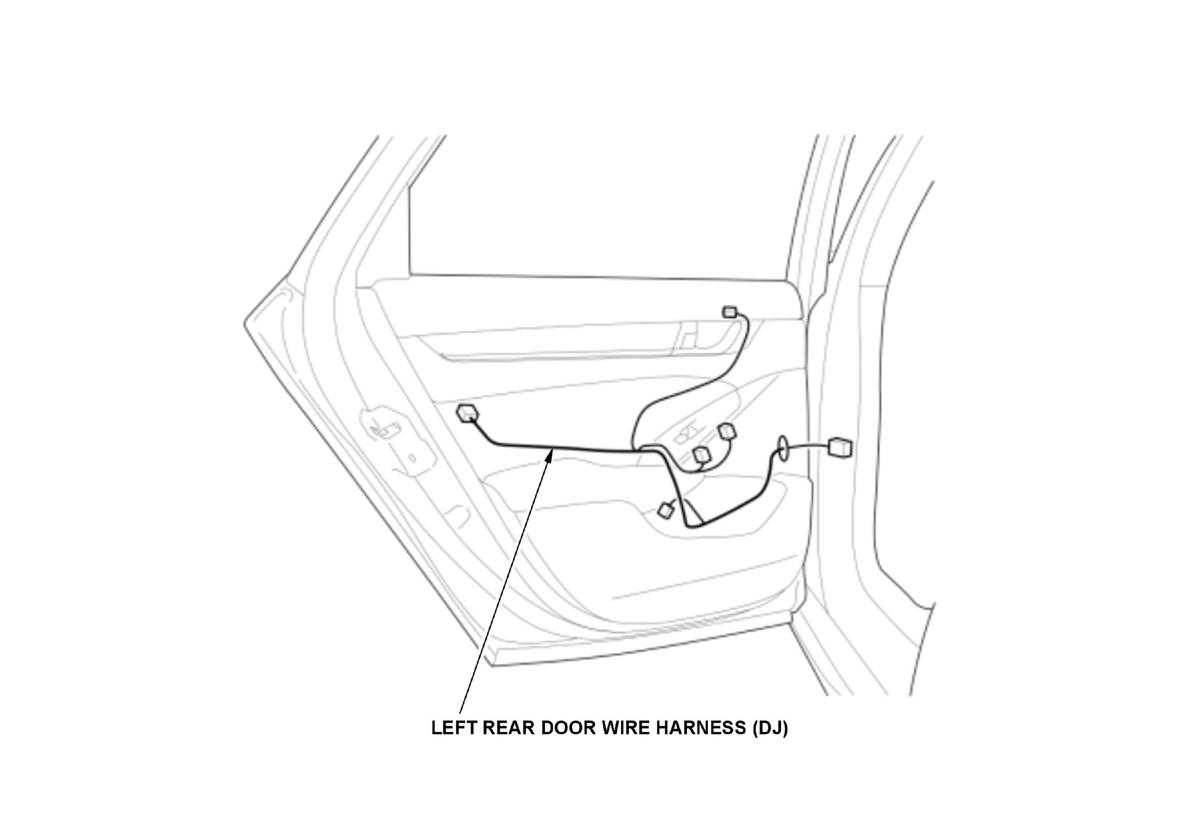

Left Rear Door

Courtesy of HONDA, U.S.A., INC.

Door - 4/4

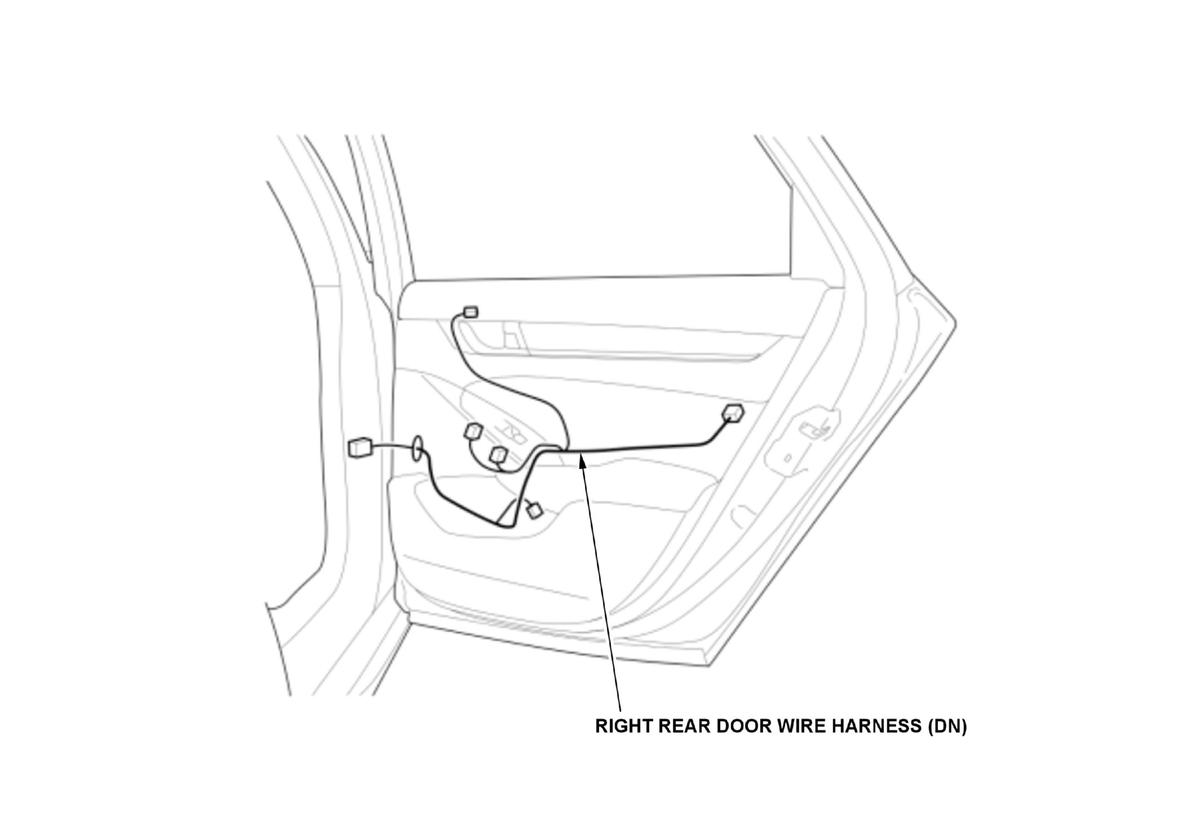

Right Rear Door

Courtesy of HONDA, U.S.A., INC.
