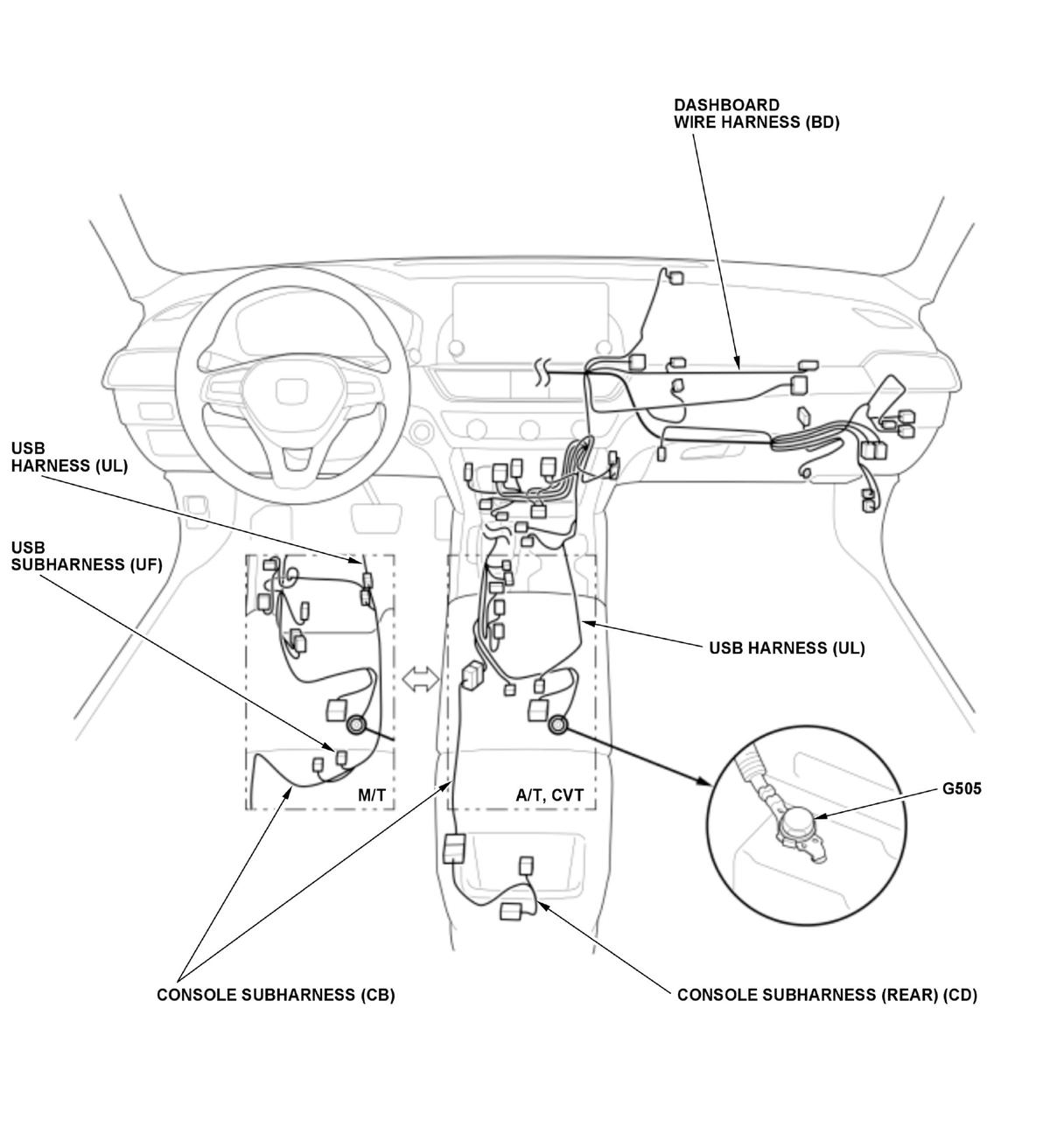

Wire Harness And Ground Locations: Dashboard

Courtesy of HONDA, U.S.A., INC.

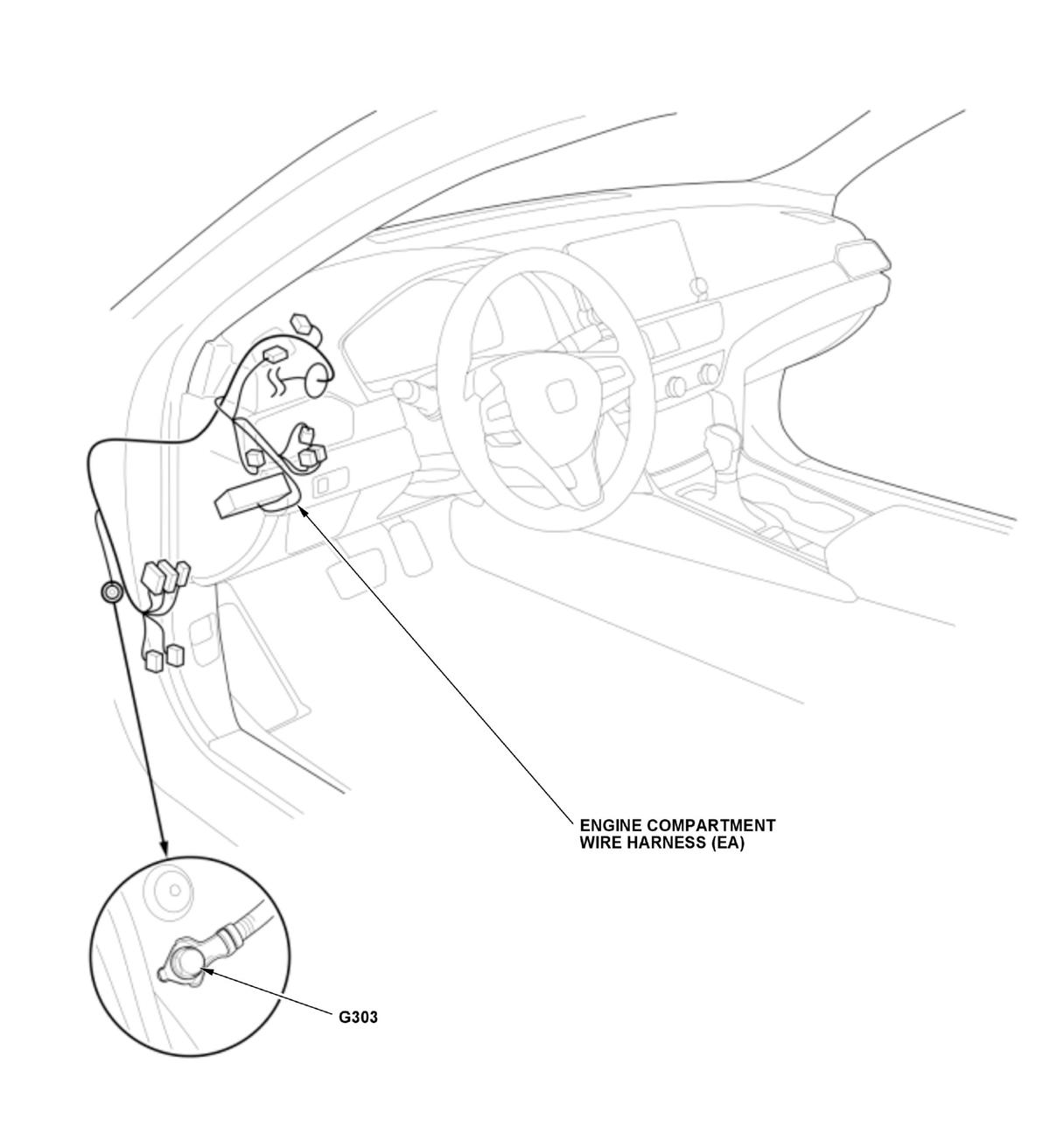

Dashboard - 2/4

Courtesy of HONDA, U.S.A., INC.

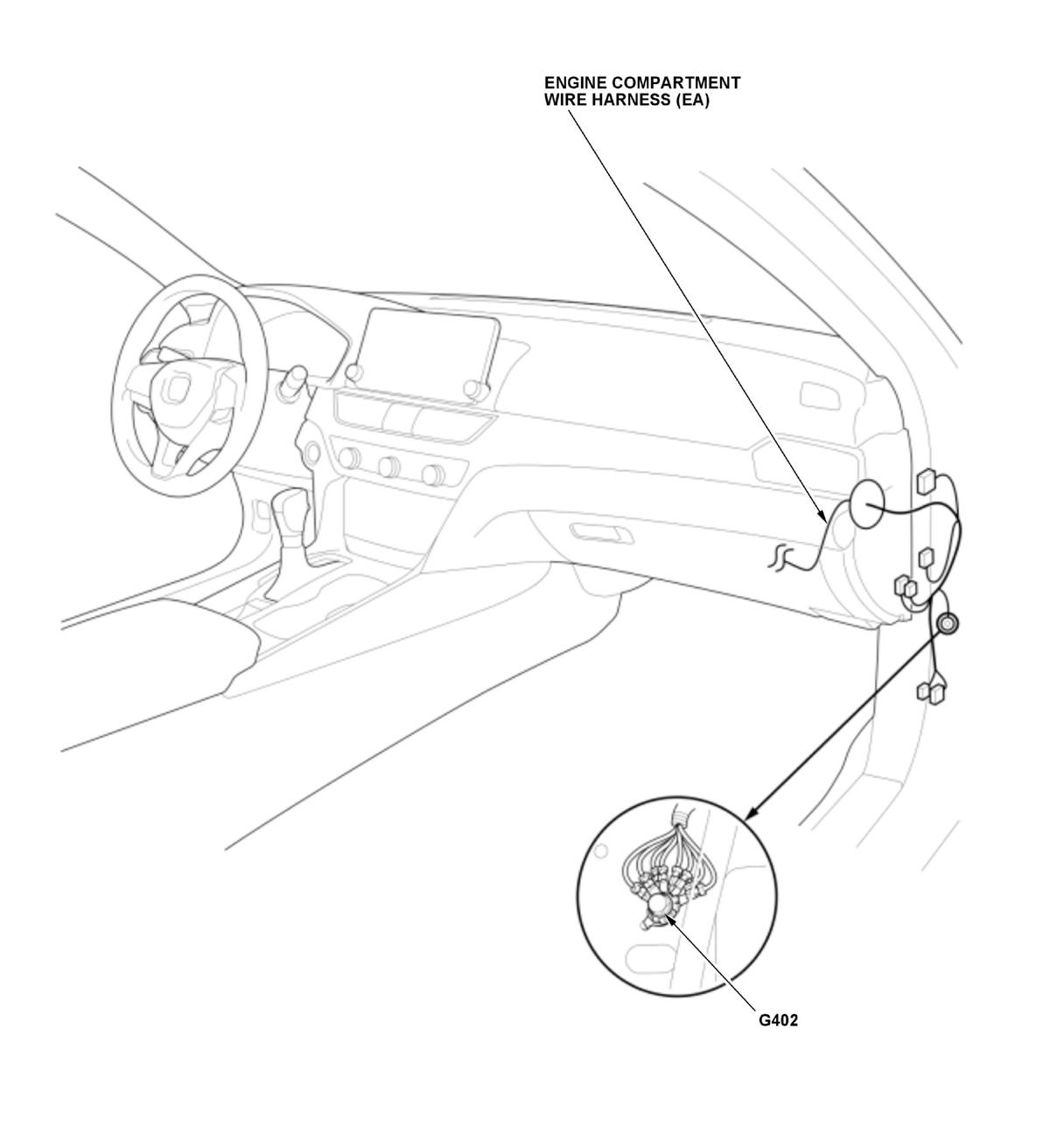

Dashboard - 3/4

Courtesy of HONDA, U.S.A., INC.

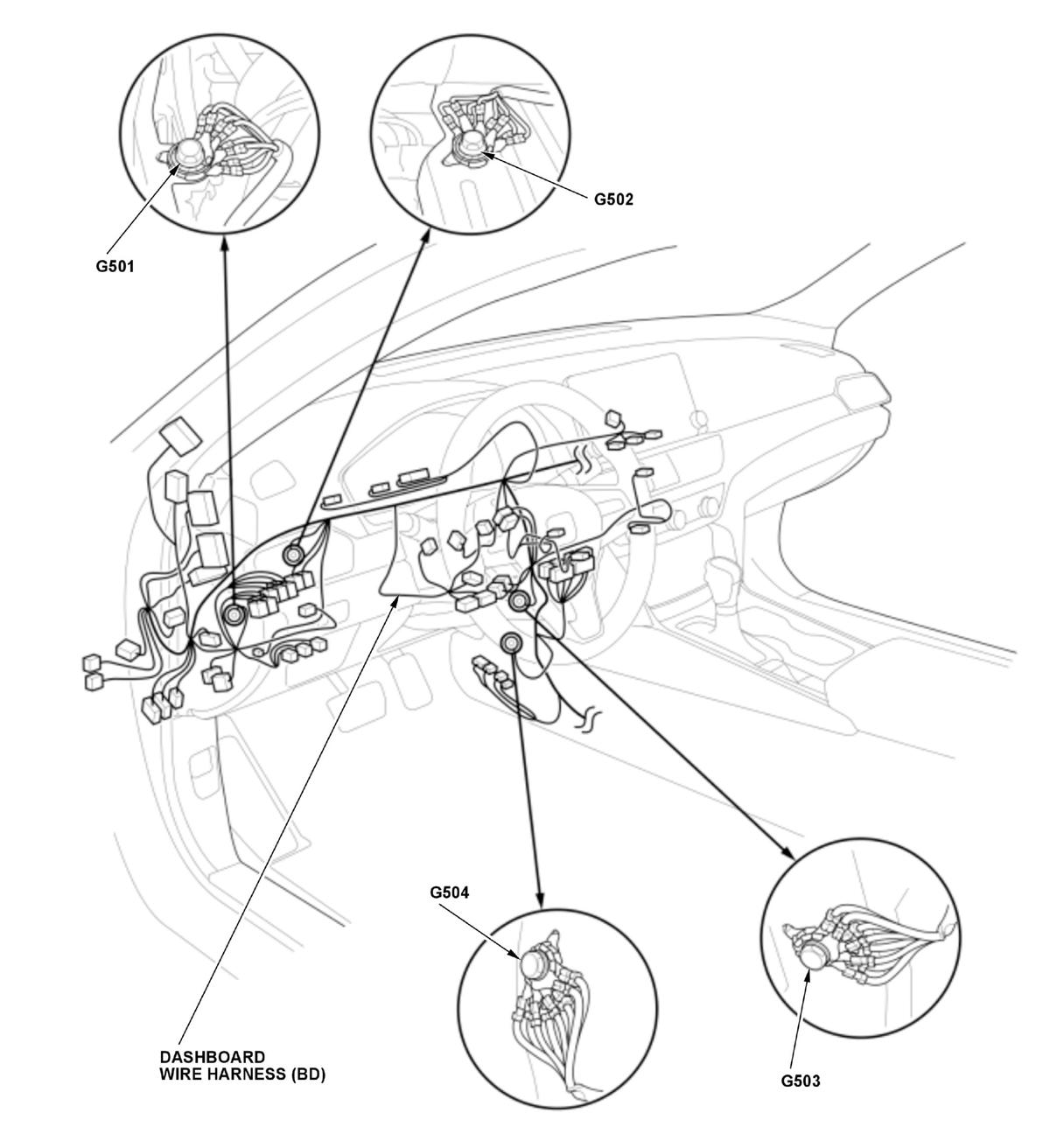

Dashboard - 4/4

Courtesy of HONDA, U.S.A., INC.
